Radiall DSX Series Technical Data Sheet

Series
DSX
FOR ENVIRONMENTAL APPLICATION, BEFORE STRIPPING, SLIDE SEALING SLEEVE AND SEALING BUSHING
OVER CABLE

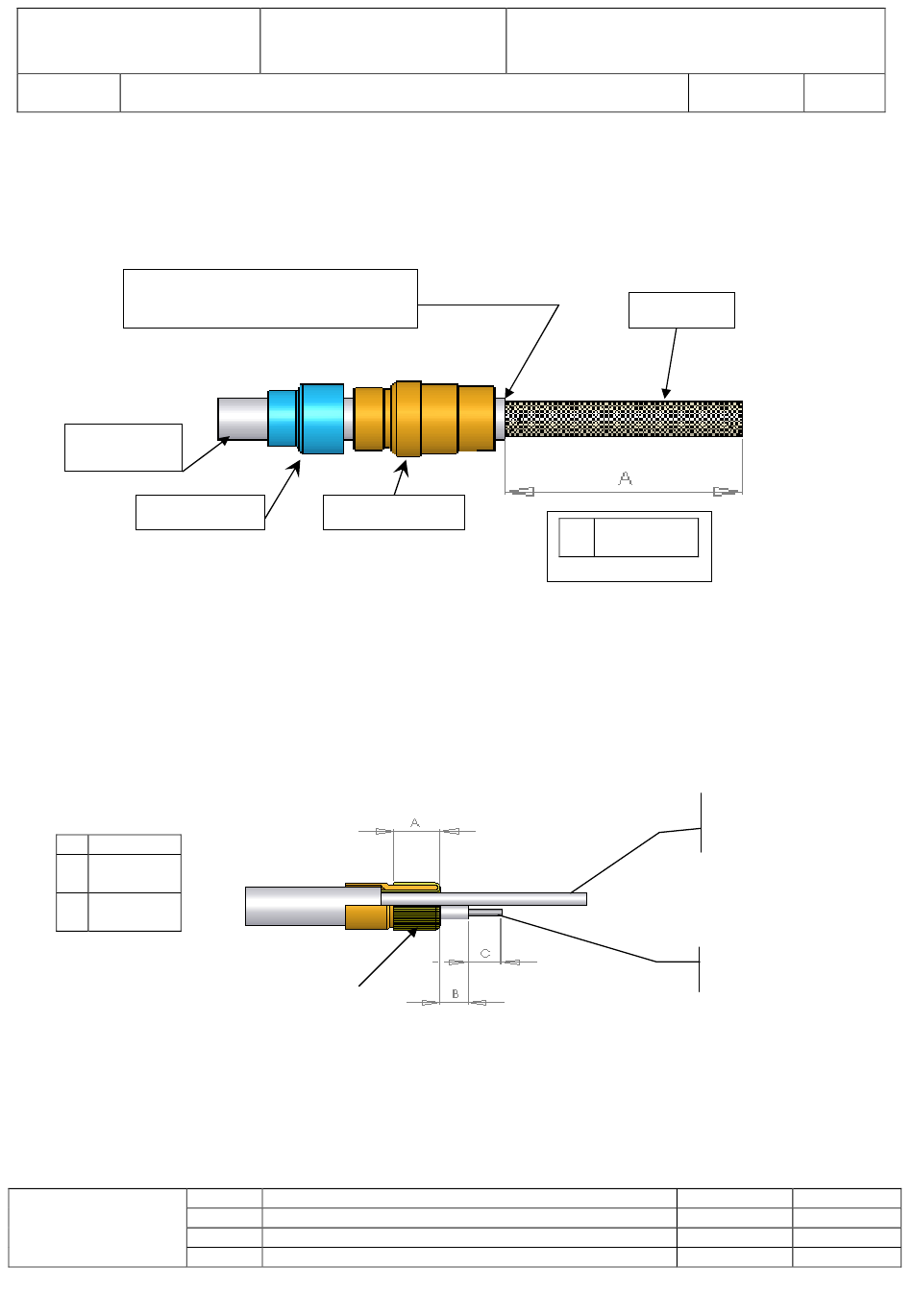

STEP 1/
TRIM CABLE JACKET TO LENGTH INDICATED
Cut outer braid and 2 aluminum ribbons
On the right
Jacket cable
WHITE
Sealing sleeve
STEP 2/
SLIDE THE FERRULE OVER THE CABLE. CUT THE HIGH IMMUNITY RIBBON IF ANY
FOLD BACK BRAID OR BRAIDS OVER THE FERRULE AS INDICATED
CUT BRAID OR BRAIDS AS SHOWN
CUT ROD FILLERS
STRIP THE N°2 CONDUCTOR (WARNING : COLOR POLARIZATION PER INDICATE )
A 4,50 (.177)
B 3,20 (.126)
2,20 (.087)
C 4,00 (.157)
3,50 (.138)
CREATION
NAME : B.GOMBERT
DATE : 29/09/04
APPR. : L.LAHOREAU
TECHNICAL DATA
SHEET
CONCENTRIC TWINAX CONTACT 616096017
ASSEMBLY INSTRUCTIONS FOR F2709/9 CABLE
Sealing bushing
BRAIDS
14/04/05 Selector position 6 was 7 ;CHANGE DRAWING
05JAN05 Was RP57839 ; revision per wish Customer
ISSUE
MICT0300003
A
REVISIONS
Issue
14 APRI 2005
Inner braid
26 ,00 (1.023)
24,00(.945)
N°1 CONDUCTOR
(see step 4/ )
N°2 CONDUCTOR
B Gombert
B.Gombert
NAME
Page
1/4
C.Lahoreau
C.Lahoreau
APPROVED
