Series
EPXB
NOTE:
• We recommend a cable thermal preconditioning before assembly.

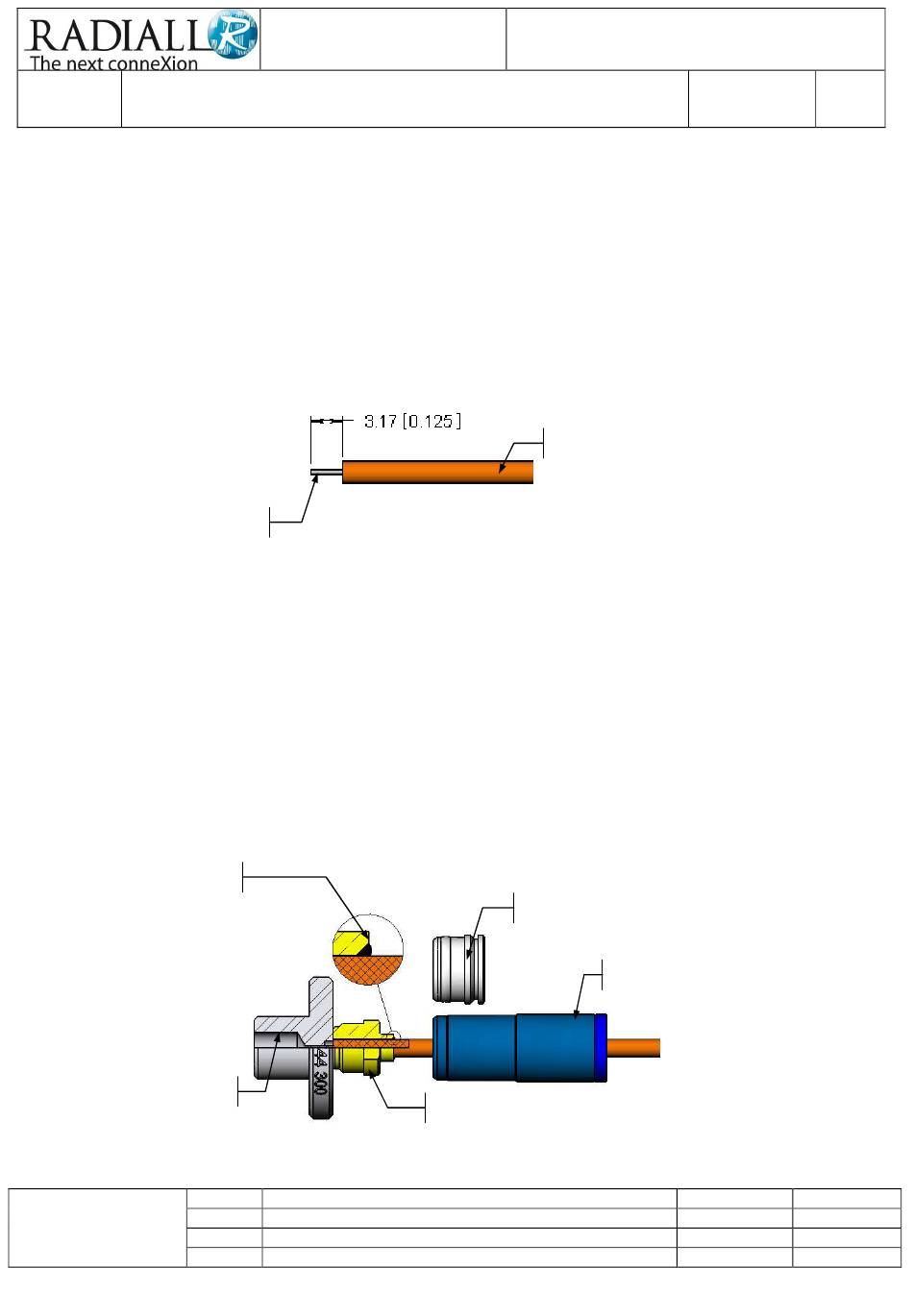

STEP 1:
• Take the tool kit R282 120 000.
• Strip the dielectric of the cable up to the center conductor.
- Stripping tool: R282 051 000.
• Trim cable center conductor.
- Pointer gauge: R282 063 000.
• Clean the cable.
Center conductor
STEP 2:
• Slide the centering boot or the sealing boot.
• Slide the solder sleeve onto the cable.
• Position the solder sleeve flush against the solder barrel gauge and solder to the cable or align with the
outer contact.
- Solder barrel gauge : R282 744 300.
Solder detail
Solder barrel gauge
CREATION
NAME : A. LEBOCQ
DATE : 12/04/2012
APPR.
Y. LE GLOAHEC
BMA #8 PIN CONTACT :
ASSEMBLY INSTRUCTIONS
FOR .085 cable
ISSUE
MI CT 05 00000
Dielectric + jacket
Centering boot
Solder sleeve
REVISIONS
Issue
April 12, 12
Sealing boot
NAME
Page
1 / 2
APPROVED
