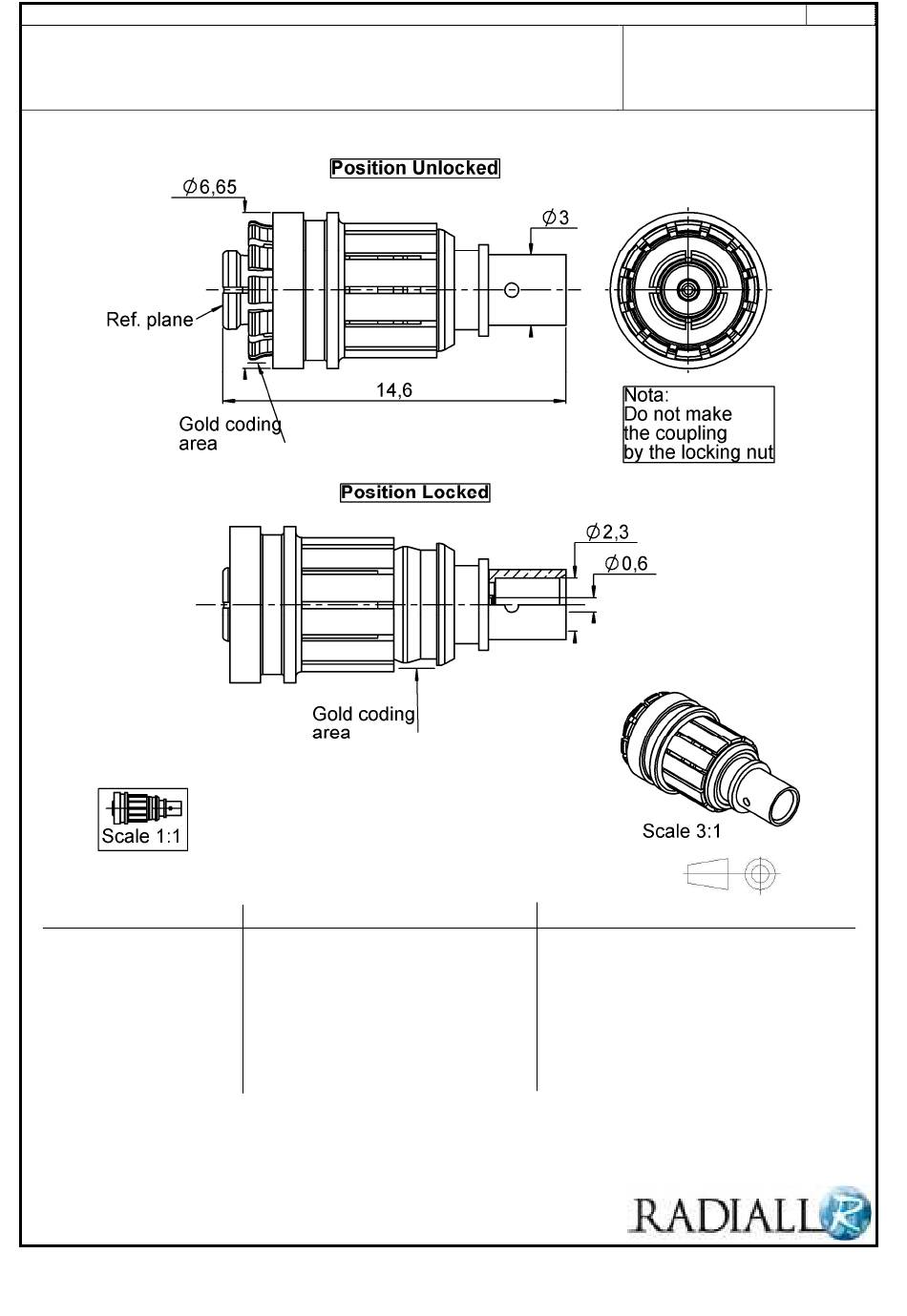

STRAIGHT PLUG SOLDER TYPE
All dimensions are in mm.
.
.
pn
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
Issue : 1229
A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
CABLE .085
MATERIALS
BERYLLIUM COPPER
BERYLLIUM COPPER
-
PTFE+PEEK
CuAg LOADED SILICONE RUBBER
BERYLLIUM COPPER
-
-
R222.L80.010
Series : SMP LOCK
PLATING
N2PGR
GOLD 1.27 OVER NICKEL 1.27
-
NICKEL 2
-
-
1 / 3
(µm)
Advertisement
Table of Contents
Related Manuals for Radiall SMP LOCK Series
Summary of Contents for Radiall SMP LOCK Series
- Page 1 TECHNICAL DATA SHEET 1 / 3 R222.L80.010 STRAIGHT PLUG SOLDER TYPE Series : SMP LOCK CABLE .085 All dimensions are in mm. COMPONENTS MATERIALS PLATING (µm) BODY BERYLLIUM COPPER N2PGR CENTER CONTACT BERYLLIUM COPPER GOLD 1.27 OVER NICKEL 1.27 OUTER CONTACT INSULATOR PTFE+PEEK GASKET...
- Page 2 TECHNICAL DATA SHEET 2 / 3 R222.L80.010 STRAIGHT PLUG SOLDER TYPE Series : SMP LOCK CABLE .085 PACKAGING SPECIFICATION Standard Unit Other Contact us CABLE ASSEMBLY ELECTRICAL CHARACTERISTICS Stripping 50 Ω Impedance 1,78 0,00 0,00 0,00 0,00 0,00 Frequency 0-26.5 GHz VSWR 1.3 + 0,0000 x F(GHz) Maxi √F(GHz) dB Maxi...
- Page 3 TECHNICAL DATA SHEET 3 / 3 R222.L80.010 STRAIGHT PLUG SOLDER TYPE Series : SMP LOCK CABLE .085 COMPONENTS Sub-assembly Insulator/center Body contact We recommend a cable thermal preconditioning before assembly Mount the positioner A. Slide the center contact into the positioner A. Insert the cable into the clamp element.
- Page 4 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Radiall R222L80010...
