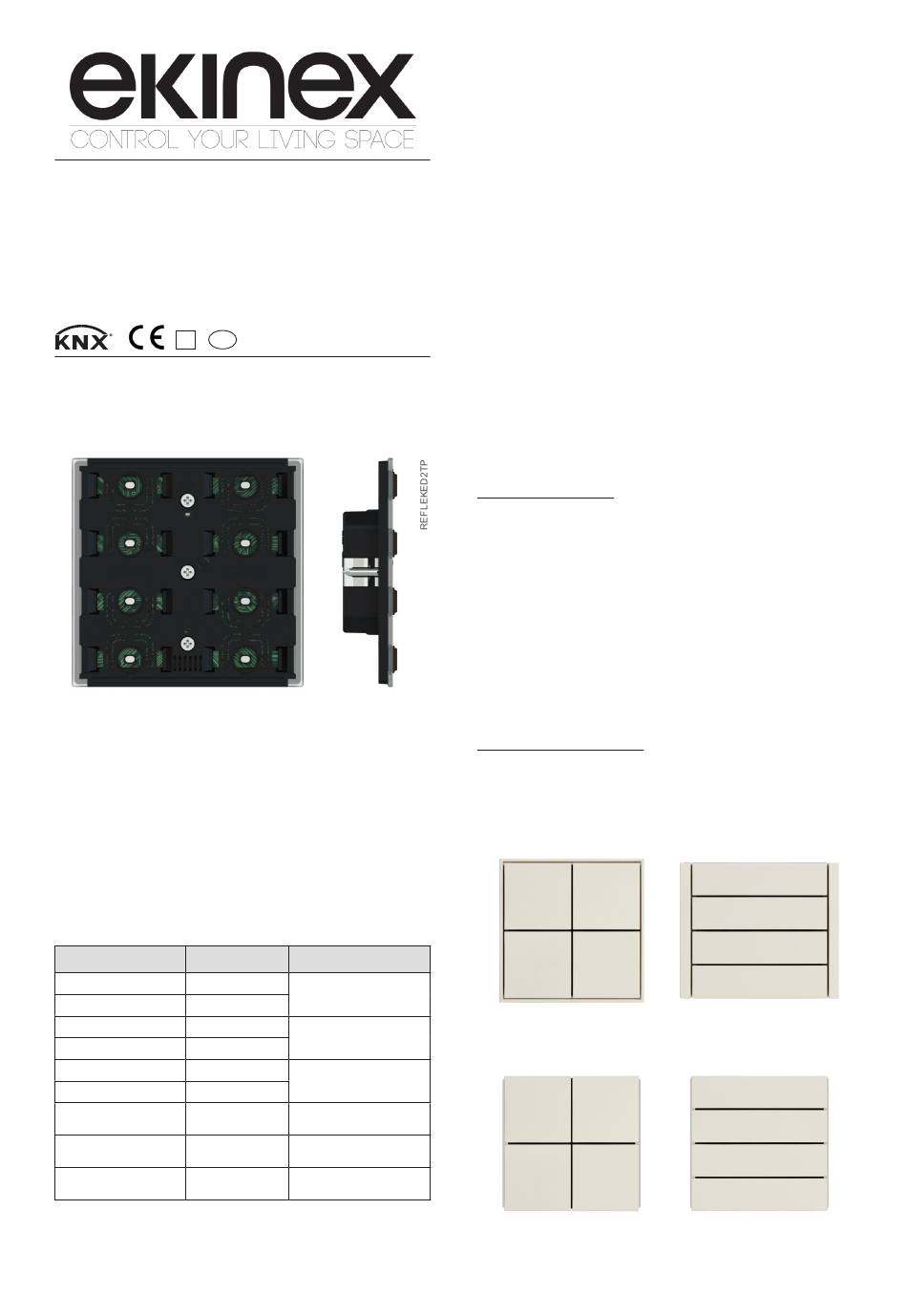

Ekinex KNX FF Series Quick Start Manual

Pushbutton FF series KNX

Codes:
EK-ED2-TP-... (with LED, temperature sensor and
temperature room controller)
EK-E32-TP-... (basic pushbutton)
S
TP1
KNX device for switching and control of single loads or
groups of loads and room temperature regulation. It has
to be used in KNX installations for control of homes and
buildings.
Description
The ekinex pushbutton of FF series is a KNX S-mode
®
device for on/off switching of loads, dimming of lighting
devices, controlling of motor drives or other programma-
ble switching and control functions. The integrated tem-
perature sensor allows the use as a room or zone tem-
perature controller (*). It is equipped with an integrated
KNX bus communication module and is designed for wall
installation on flush-mounting box. Each channel can be
freely configured to carry out 1 or 2 bus functions and
is provided with programmable LED (blue/green or red/
Versions
Device code LED colours
EK-ED2-TP blue / green
EK-ED2-TP-RW red / white
EK-ED2-TP-BG-NF blue / green
EK-ED2-TP-RW-NF red / white
EK-ED2-TP-BG-NFW blue / green
EK-ED2-TP-RW-NFW red / white
EK-E32-TP n.a. (*)
EK-E32-TP-NF n.a. (*)
EK-E32-TP-NFW n.a. (*)
*) The programmable LEDs, the temperature sensor
and the room temperature control function are available
for EK-ED2-TP-... versions only.
Datasheet STEKED32TP_EN
Mounting
with frame of the
form or flank series
without frame ('NF series)
with black side profile
without frame ('NF series)
with white side profile
with frame of the
form or flank series
without frame ('NF series)
with black side profile
without frame ('NF series)
with white side profile
1
white) (*) e.g. as a status feedback or orientation night-
light. Pressing a rocker, the device sends on the bus a
telegram, which is received and executed by one or more
KNX actuators depending on the configuration carried
out. The device is powered by the KNX bus line with a
SELV voltage 30 Vdc and does not require auxiliary po-
wer.
Main functional characteristics
• On/off switching of single loads or groups of loads
• Dimming of lighting devices
• Control of motor drives (for roller shutters, blinds, cur-
tains, etc.)
• Room temperature regulation (*)
• Logic functions
• Sending on the bus of values (temperature, bright-
ness, etc.)
• Switching to forced functioning (lock)
• Recalling and saving of scenes
• Measuring of room temperature through integrated
sensors (*)
• Different functions programmable for short pressure /
long pressure of a rocker
• Status feedback or orientation nightlight through 2-co-
lour programmable LEDs (*)
Other characteristics
• Housing in plastic material
• Wall installation in flush mounting box
• Protection degree IP20 (according to EN 60529)
• Classification climatic 3K5 and mechanical 3M2 (accor-
ding to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Weight 80 g (with mounting support)
• Dimensions 82 x 79 x 19 mm (WxHxD)
Technical data
• Power supply 30 Vdc from KNX bus line
• Current consumption < 15 mA
• Power from bus < 360 mW
Environmental conditions
• Operating temperature: - 5 ... + 45°C
• Storage temperature: - 25 ... + 55°C
• Transport temperature: - 25 ... + 70°C
• Relative humidity: 95% not condensing
Completed with frame EK-FOQ-... (form)
and square rockers EK-TQQ-...
Completed as 'NF series (without frame)
with square rockers EK-TQQ-...
Completed with frame EK-FLQ-... (flank)
and rectangular rockers EK-TRO-...
Completed as 'NF series (without frame)
with rectangular rockers EK-TRO-...
