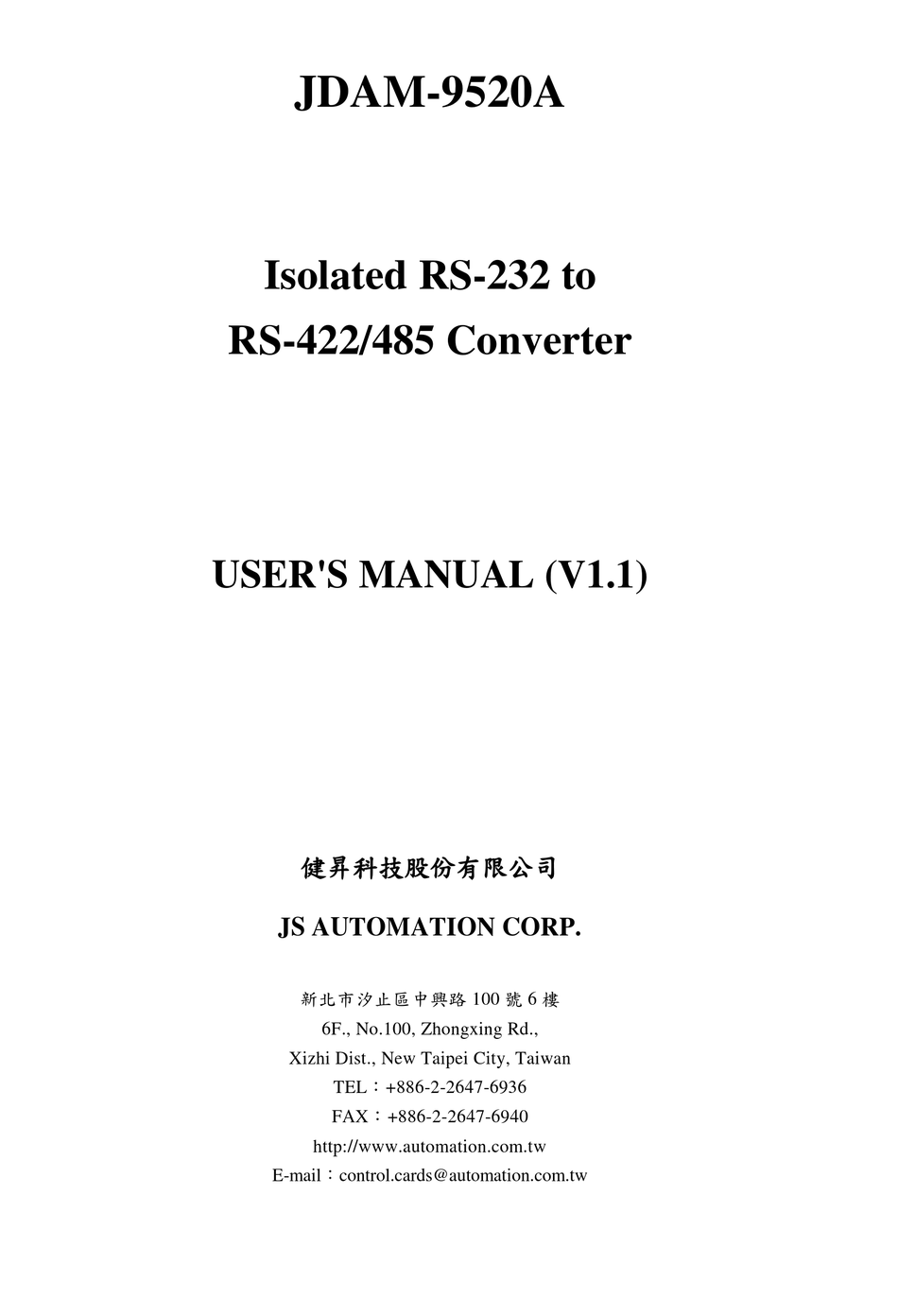

- Page 1 JDAM-9520A Isolated RS-232 to RS-422/485 Converter USER'S MANUAL (V1.1) 健昇科技股份有限公司 JS AUTOMATION CORP. 新北市汐止區中興路 100 號 6 樓 6F., No.100, Zhongxing Rd., Xizhi Dist., New Taipei City, Taiwan TEL：+886-2-2647-6936 FAX：+886-2-2647-6940 http://www.automation.com.tw E-mail：control.cards@automation.com.tw...
- Page 2 Correction record Version Record Add Correction record and Warranty...
- Page 3 Contents Introduction ............................ 3 Features ............................4 Specifications ..........................5 Power supply ..........................5 Block diagram ..........................5 RS-422 / 485 Termination Resistor ....................6 Block diagram ..........................6 Connection ............................. 7 Dimensions ............................ 7...
- Page 4 The JDAM-9520A is warranted against defects in materials and workmanship for a period of two years from the date of shipment, as evidenced by receipts or serial no. on board. JS automation Corp. will, at its option, repair or replace product that proves to be defective during the warranty period.
- Page 5 1. Introduction The RS-485 standard supports half-duplex communication. But with a special I/O circuit in the JDAM-9520A automatically senses the direction of the data flow and switches the transmission direction. In addition, the JDAM-9520A also provides a flexible function called “Auto baud rate detector”...
- Page 6 3. Specifications Power requirement: Unregulated +10 to +30 V DC with protection from power reversals Case: ABS with captive mounting hardware Converted signals: RS-232 to RS-422 or RS-485 Auto switching(jumperless) Accessories (Supplied):NYLON DIN-rail Mounting Adapter SECC Panel Mounting Bracket ...
- Page 7 6. RS-422 / 485 Termination Resistor 7. Block diagram J-DAM JDAM-9520A...
- Page 8 8. Connection 9. Dimensions J-DAM JDAM-9520A...
