Dell Precision 7740 Service Manual

Hide thumbs Also See for Precision 7740:
Table of Contents

Advertisement

Quick Links

Download this manual

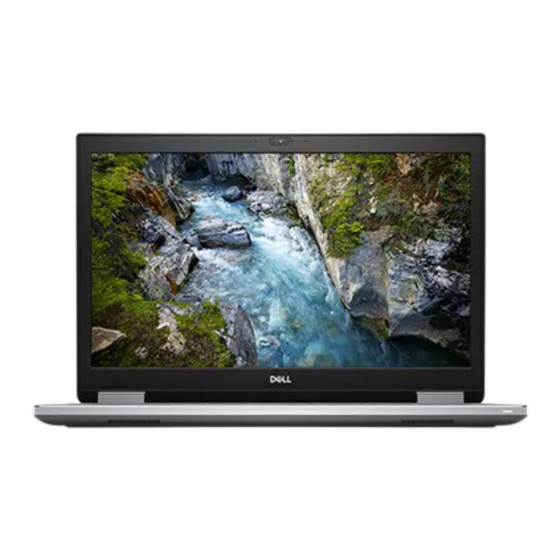

Dell Precision 7740
Service Manual
Regulatory Model: P34E
Regulatory Type: P34E002

Advertisement

Table of Contents
loading

Related Manuals for Dell Precision 7740

Summary of Contents for Dell Precision 7740

  • Page 1 Dell Precision 7740 Service Manual Regulatory Model: P34E Regulatory Type: P34E002...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2018 - 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents 1 Working on your computer......................6 Safety instructions.................................6 Turning off your computer — Windows 10........................6 Before working inside your computer..........................6 After working inside your computer............................ 7 2 Technology and components......................8 HDMI 2.0....................................8 USB features..................................8 USB Type-C..................................10 3 Removing and installing components....................
  • Page 4 Installing SIM card................................. 38 Solid State Drive.................................. 39 Removing the M.2 Solid State Drive—SSD module....................39 Installing the M.2 SSD module............................. 42 2.5" Hard drive..................................45 Removing the hard drive assembly..........................45 Installing the hard drive assembly..........................46 Hard drive interposer board............................... 47 Removing the hard drive interposer board.........................47 Installing the hard drive interposer board........................
  • Page 5 Display bracket..................................95 Removing the display support bracket........................95 Installing the display support bracket..........................96 4 Troubleshooting......................... 98 Enhanced Pre-Boot System Assessment — ePSA diagnostics................... 98 Running the ePSA Diagnostics............................ 98 Diagnostic LED..................................98 Battery status LED................................99 5 Getting help..........................100 Contacting Dell...................................100 Contents...

  • Page 6: Working On Your Computer

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 7: After Working Inside Your Computer

    CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for other Dell computers. 1. Connect any external devices, such as a port replicator or media base, and replace any cards, such as an ExpressCard.

  • Page 8: Technology And Components

    Technology and components This chapter details the technology and components available in the system. Topics: • HDMI 2.0 • USB features • USB Type-C HDMI 2.0 This topic explains the HDMI 2.0 and its features along with the advantages. HDMI (High-Definition Multimedia Interface) is an industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any compatible digital audio/video source, such as a DVD player, or A/V receiver and a compatible digital audio and/or video monitor, such as a digital TV (DTV).
  • Page 9 Table 1. USB evolution Type Data Transfer Rate Category Introduction Year USB 2.0 480 Mbps High Speed 2000 USB 3.0/USB 3.1 Gen 1 5 Gbps Super Speed 2010 USB 3.1 Gen 2 10 Gbps Super Speed 2013 USB 3.0/USB 3.1 Gen 1 (SuperSpeed USB) For years, the USB 2.0 has been firmly entrenched as the de facto interface standard in the PC world with about 6 billion devices sold, and yet the need for more speed grows by ever faster computing hardware and ever greater bandwidth demands.

  • Page 10: Usb Type-C

    480Mbps theoretical maximum throughput, making data transfer at around 320Mbps (40MB/s) — the actual real-world maximum. Similarly, USB 3.0/USB 3.1 Gen 1 connections will never achieve 4.8Gbps. We will likely see a real-world maximum rate of 400MB/s with overheads. At this speed, USB 3.0/USB 3.1 Gen 1 is a 10x improvement over USB 2.0. Applications USB 3.0/USB 3.1 Gen 1 opens up the laneways and provides more headroom for devices to deliver a better overall experience.
  • Page 11 it as an external display — all via the one little USB Type-C connection. To use this, the device and the cable have to support USB Power Delivery. Just having a USB Type-C connection doesn't necessarily mean they do. USB Type-C and USB 3.1 USB 3.1 is a new USB standard.
  • Page 12 Thunderbolt Icons Figure 2. Thunderbolt Iconography Variations Technology and components...

  • Page 13: Removing And Installing Components

    Phillips #1 screwdriver • Plastic scribe NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4 Screw size list Table 2. Precision 7740 Component Screw type Quantity Image M2.0x3.0 SSD thermal plate 1 per SSD M.2 SSD card...

  • Page 14: Sd Card

    Component Screw type Quantity Image HDD assembly M2.5x4.0 Display hinge Hinge cap M2.5x5.0 GPU card System board Palmrest Display assembly (bottom) M2.5x6.0 Display assembly (rear) M3.0x3.0 HDD bracket SD card Removing SD card 1. Follow the procedure in Before working inside your computer.

  • Page 15: Installing Sd Card

    Installing SD card 1. Slide the SD card into its slot until it clicks into place. 2. Follow the procedure in After working inside your computer. Battery cover Removing the battery cover 1. Follow the procedure in Before working inside your computer.

  • Page 16: Installing The Battery Cover

    Installing the battery cover 1. To install the battery cover: a) Slide the battery cover into its slot until it clicks into place [1]. b) The release latch automatically springs back to the lock position [2]. Removing and installing components...

  • Page 17: Battery

    If the battery gets stuck inside your computer as a result of swelling, do not try to release it as puncturing, bending, or crushing a lithium-ion battery can be dangerous. In such an instance, contact Dell technical support for assistance. See www.dell.com/contactdell.

  • Page 18: Removing The Battery

    Removing the battery 1. Follow the procedure in Before working inside your computer. 2. Remove the:. SD card battery cover 3. To remove the 6-cell battery: a) Disconnect the battery cable from the connector on the battery [1]. b) Remove the 3 (M2.5x3.0) screws that secure the battery to the system [2]. c) Remove the battery away from the system [3].

  • Page 19: Installing The Battery

    Installing the battery 1. To install the 6-cell battery: a) Place the battery onto its slot in the system [1]. b) Replace the 3 (M2.5x3.0) screws to secure the battery to the system [2]. c) Connect the battery cable to the connector in the battery [3]. Removing and installing components...
  • Page 20 2. To install the 4-cell battery: a) Place the battery onto its slot in the system [1 , 2]. b) Replace the 2 (M2.5x3.0) screws to secure the battery to the system [3]. c) Connect the battery cable to the connector in the system board [4]. Removing and installing components...

  • Page 21: Keyboard

    3. Install the: battery cover SD card 4. Follow the procedure in After working inside your computer. Keyboard Removing the keyboard 1. Follow the procedures in Before working inside your computer. 2. Remove the: SD card battery cover battery 3. To remove the keyboard: a) Lift the latch and disconnect the keyboard cable, fingerprint cable and the fingerprint button cable from the connectors on the system board.
  • Page 22 b) Turn-over and open the system at 90° angle. c) Using a plastic scribe pry the keyboard lattice starting from the recess points on the top edge [1,2] and work along the sides and bottom edge of the keyboard lattice. Removing and installing components...
  • Page 23 d) Lift the keyboard lattice away from the system. e) Remove the 5 (M2.0x2.5) screws that secure the keyboard to the palmrest [1]. Removing and installing components...
  • Page 24 f) Pry the bottom edge of the keyboard and then work along the left and right sides of the keyboard [2,3,4]. g) Slide and remove the keyboard from the system. Removing and installing components...

  • Page 25: Installing The Keyboard

    Installing the keyboard 1. To Install the keyboard: a) Align the keyboard and route the cables back through to the bottom of the compartment. b) Press and align the keyboard to its compartment working along the left, right and bottom edges [1,2,3]. c) Replace the 5 (M2.0x2.5) screws to secure the keyboard to the palmrest [4].
  • Page 26 d) Align the keyboard lattice to its position on the keyboard and ensure that the keyboard lattice clicks into its place. e) Turn-over the system at 90° angle to access the keyboard cables. Removing and installing components...

  • Page 27: Base Cover

    f) Connect the keyboard cable, fingerprint cable and fingerprint button cable to the connectors on the system board. NOTE: Ensure that you fold the keyboard data cable in perfect alignment. 3. Install the: battery battery cover SD card 4. Follow the procedure in After working inside your computer.

  • Page 28: Installing The Base Cover

    Installing the base cover 1. To install the base cover: a) Slide the base cover to align with the screw holes on the system [1]. b) Replace the 2 (M2.5X5.0) screws to secure the base cover to the system [2]. Removing and installing components...

  • Page 29: Primary Memory Module

    2. Install the: battery battery cover SD card 3. Follow the procedure in After working inside your computer. Primary memory module Removing the primary memory module 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery base cover...

  • Page 30: Installing The Primary Memory Module

    NOTE: Repeat step (c) and (d) if there is another memory installed. Installing the primary memory module 1. To Install the primary memory module: a) Insert the memory module into the memory socket [1]. b) Press the clips to secure the memory module to the system board [2]. c) Slide in the memory shield on the memory module [3].

  • Page 31: Secondary Memory Module

    2. Install the: keyboard base cover battery battery cover SD card 3. Follow the procedure in After working inside your computer. Secondary memory module Removing the secondary memory module 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery...

  • Page 32: Installing The Secondary Memory Module

    Installing the secondary memory module 1. To install the secondary memory module: a) Insert the memory module into the memory socket. b) Press the clips to secure the memory module to the system board. Removing and installing components...

  • Page 33: Wwan Card

    2. Install the: battery battery cover SD card 3. Follow the procedure in After working inside your computer. WWAN card Removing WWAN card 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery base cover 3.

  • Page 34: Installing The Wwan Card

    Installing the WWAN card 1. To install the WWAN card: a) Slide the WWAN card to the WWAN card slot on the system board [1]. b) Route the WWAN antenna cables through the routing channel. c) Connect the antenna cables to the connectors on the WWAN card [2]. d) Align the WWAN metal bracket above the WWAN card and replace the single (M2.0x3.0) screw to secure the WWAN metal bracket to the system board [3,4].

  • Page 35: Wlan Card

    2. Install the: base cover battery battery cover SD card 3. Follow the procedure in After working inside your computer. WLAN card Removing the WLAN card 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery base cover...

  • Page 36: Installing The Wlan Card

    Installing the WLAN card 1. To install the WLAN card: a) Slide the WLAN card to the WLAN card slot in the system board [1]. b) Route the WLAN antenna cables through the routing channel. c) Connect the antenna cables to the connectors in the WLAN card [2]. d) Align the WLAN metal bracket above the WLAN card and replace the single (M2.0x3.0) screw to secure the WLAN metal bracket to the system board [3,4].

  • Page 37: Sim Card

    2. Install the: base cover battery battery cover SD card 3. Follow the procedure in After working inside your computer. SIM card Removing SIM card 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery base cover...

  • Page 38: Installing Sim Card

    Installing SIM card 1. To install the SIM card: a) Slide the SIM card into the SIM card compartment [1]. b) Snap the SIM card cover down [2]. c) Slide the SIM card cover towards the front of the system to lock the SIM card cover [3]. Removing and installing components...

  • Page 39: Solid State Drive

    2. Install the: base cover battery battery cover SD card 3. Follow the procedure in After working inside your computer. Solid State Drive Removing the M.2 Solid State Drive—SSD module 1. Follow the procedures in Before working inside your computer. 2.
  • Page 40 d) Remove the single (M2.0x3.0) screw that secures the thermal plate to the SSD assembly [1]. e) Remove the thermal plate away from the SSD assembly [2]. f) Remove the single (M2.0x3.0) screw that secures M.2 SSD to the SSD holder [3]. g) Remove the M.2 SSD from the SSD holder [4].
  • Page 41 Removing and installing components...

  • Page 42: Installing The M.2 Ssd Module

    Installing the M.2 SSD module 1. To install the M.2 SSD module (Slot 4): a) Place the M.2 SSD into the slot in the SSD holder [1]. b) Replace the single (M2.0x3.0) screw to secure the M.2 SSD to the SSD holder [2]. c) Place the thermal plate above the M.2 SSD assembly [3].
  • Page 43 2. To install the M.2 SSD module (Slot 3, 5 or 6): a) Place the M.2 SSD into its slot in the system [1]. b) Replace the single (M2.0x3.0) screw to secure the M.2 SSD to the system board [2]. c) Place the thermal plate above the M.2 SSD module [3].
  • Page 44 Removing and installing components...

  • Page 45: 2.5" Hard Drive

    3. Install the: battery battery cover SD card 4. Follow the procedure in After working inside your computer. 2.5" Hard drive Removing the hard drive assembly 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover 3.

  • Page 46: Installing The Hard Drive Assembly

    e) Remove the 4 (M3.0x3.0) screws that secure the hard drive assembly to the hard drive bracket. f) Remove the hard drive from the hard drive bracket. Installing the hard drive assembly 1. To install the hard drive assembly: a) Place the hard drive to the hard drive bracket and replace the 4 (M3.0x3.0) screws to secure the hard drive to the hard drive bracket.

  • Page 47: Hard Drive Interposer Board

    b) Insert the hard drive assembly into its slot in the system [1]. c) Flip down the tab at the end of the hard drive assembly [2]. d) Replace the 4 (M2.5x3.0) screws to secure the hard drive assembly to the system [3]. e) Slide the hard drive release latch into the lock position [4].

  • Page 48: Installing The Hard Drive Interposer Board

    SD card battery cover hard drive 3. To remove the hard drive interposer board: a) Remove the single (M2.0x3.0) and the single (M2.0x5.0) screw that secures the hard drive interposer board to the hard drive interposer board holder [1]. b) Remove the hard drive interposer board from the system [2]. c) Remove the 3 (M2.0x3.0) screws that secure the hard drive interposer board holder to the system [3].

  • Page 49: Coin-Cell Battery

    2. Install the: hard drive battery cover SD card 3. Follow the procedure in After working inside your computer. Coin-cell battery Removing the coin cell battery 1. Follow the procedures in Before working inside your computer. 2. Remove the: SD card battery cover battery base cover...

  • Page 50: Installing The Coin Cell Battery

    CAUTION: Disconnecting coin cell battery may reset BIOS settings, time and date within System Settings, cause BitLocker or other security resets. Installing the coin cell battery 1. To install the coin cell battery: a) Replace the coin cell battery in its slot on the system. b) Connect the coin cell battery cable to the system.

  • Page 51: Power Connector Port

    2. Install the: base cover battery battery cover SD card 3. Follow the procedure in After working inside your computer. Power connector port Removing the power connector port 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery...
  • Page 52 c) Remove the single (M2.0x3.0) screw that secures the power connector cable metal bracket to the system [1]. d) Remove the metal bracket away from the system [2]. e) Lift the power connector port from the system [3]. Removing and installing components...

  • Page 53: Installing The Power Connector Port

    Installing the power connector port 1. To install the power connector port: a) Connect the power connector port to the system [1]. b) Place the power connector cable metal bracket [2]. c) Replace the single (M2.0x3.0) screw to secure the metal bracket to the system [3]. Removing and installing components...
  • Page 54 d) Affix the adhesive tape to secure the power connector cable in place [1]. e) Route the cable through the routing channel and affix the adhesive tape [2]. f) Connect the power connector cable to the connector on the system board [3]. Removing and installing components...

  • Page 55: Palm Rest

    2. Install the: base cover battery battery cover SD card 3. Follow the procedure in After working inside your computer. Palm rest Removing the palmrest 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery keyboard...
  • Page 56 c) Turn the system around and disconnect the system board cable and power button cable from the connectors on the system board [1, 2]. d) Remove the 4 (M2.0x3.0) screws that secure the palmrest to the system [3]. Removing and installing components...
  • Page 57 e) Push the hole at the bottom of the system to release the palmrest from the bottom chassis. f) Lift and remove the palmrest from the system. Removing and installing components...

  • Page 58: Installing The Palmrest

    Installing the palmrest 1. To install the palmrest: a) Align the palmrest on the system and press until it snaps in its place [1, 2]. Removing and installing components...
  • Page 59 b) Replace the 4 (M2.0x3.0) screws to secure the palmrest to the system [1]. c) Connect the system board and power button cable to the connectors on the system board [2,3, 4]. Removing and installing components...

  • Page 60: Touchpad Button

    d) Turn the system and replace the 15 (M2.5x5.0) and the 2 (M2.0x3.0) screws to secure the palmrest to the system [1, 2]. e) Connect the touchpad and touchpad button cables to the connectors on the system board and lock the latch [3]. 2.

  • Page 61: Installing The Touchpad Button

    c) Remove the touchpad button from the palmrest [3]. Installing the Touchpad button 1. To install the touchpad button: a) Place the touchpad button into its slot in the palmrest [1]. b) Replace the 2 (M2.0x3.0) screws to secure the touchpad button to the palmrest [2]. c) Connect the touchpad button cable to the connector in the touchpad [3].

  • Page 62: Smart Card Cage

    2. Install the: palmrest base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Smart card cage Removing the smart card cage 1. Follow the procedure in Before working inside your computer.

  • Page 63: Installing The Smart Card Cage

    d) Remove the 2 (M2.0X3.0) screws that secure the smart card cage to the palmrest [3]. e) Remove the smart card cage from the palmrest [4]. Installing the smart card cage 1. To install the smart card cage: a) Place the smart card cage into its slot in the palmrest [1]. b) Replace the 2 (M2.0X3.0) screws to secure the smart card cage to the palmrest [2].

  • Page 64: Speaker

    2. Install the: palmrest base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Speaker Removing the speakers 1. Follow the procedure in Before working inside your computer. 2. Remove the: SD card battery cover battery...

  • Page 65: Installing The Speakers

    Installing the speakers 1. To install the speaker: a) Align the speakers along the slots on the system [1]. b) Route the speaker cable through the routing channels on the system. c) Connect the speaker cable to the connector on the system board [2]. Removing and installing components...

  • Page 66: Led Board

    2. Install the: palmrest base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. LED board Removing the LED board 1. Follow the procedures in Before working inside your computer. 2.

  • Page 67: Installing The Led Board

    b) Peel the LED-board cable from the system. c) Remove the single (M2.0x3.0) screw that secures the LED board to the system [2]. d) Remove the LED board from the system [3]. Installing the LED board 1. To install the LED board: a) Align the LED board to its original position on the system [1].

  • Page 68: Heat Sink

    2. Install the: palmrest base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Heat sink Removing the heat sink assembly 1. Follow the procedure in Before working inside your computer.
  • Page 69 b) Remove the eDP cable bracket from the system [2]. c) Disconnect the eDP cable from the connector on the system board [3]. d) Pry the adhesive tape that secures the eDP cable in place. e) Disconnect the two fan cables from the connector on the system board [4,5]. f) Loosen the 8 captive screws that secure the heat sink assembly to the system board [1].
  • Page 70 h) Slide and remove the heat sink assembly from the system. Removing and installing components...

  • Page 71: Installing The Heat Sink Assembly

    Installing the heat sink assembly 1. To install the heat sink assembly: a) Insert the heat-sink assembly in its slot on the system [1]. b) Tighten the 8 captive screws to secure the heat-sink assembly to the system board [2]. NOTE: Tighten the captive screws in the order stamped onto the heat sink next to the screws [1 >...
  • Page 72 c) Connect the eDP cable to the connector on the system board and affix the adhesive tape to secure the eDP cable in place [1]. d) Place and align the display cable bracket above the eDP cable connector [2]. e) Replace the single (M2.0x3.0) screw to secure the eDP cable bracket to the system board [3]. f) Connect the two fan cables to the connector on the system board [4, 5].

  • Page 73: Graphics Card

    2. Install the: palmrest base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Graphics card Removing the graphics card 1. Follow the procedure in Before working inside your computer. 2.

  • Page 74: Installing The Graphics Card

    a) Remove the 2 (M2.0x3.0) screws that secure the beam connector to the system board [1]. b) Remove the beam connector from the system board [2]. c) Remove the 3 (M2.5x5.0) screws that secure the graphics card to the system board [3]. d) Remove the graphics card from the system [4].

  • Page 75: System Board

    NOTE: The above procedures are for UMA graphics card. Systems shipped with UMA GPU card do not have GPU power cable. However, for discrete models shipped with either a 128 MB or 256 MB VRAM GPU card, you need to connect the GPU power cable after installing the GPU card.
  • Page 76 hard drive interposer board keyboard base cover primary memory secondary memory WLAN card WWAN card M.2 SSD card SIM card palmrest heat sink assembly graphic card 3. To disconnect the system board: a) Disconnect the power connector cable and battery cable from the connectors on the system board [1, 2]. b) Remove the 3 (M2.0x5.0) screws that secure the Type-C USB bracket to the system [1].
  • Page 77 e) Remove the 2 (M2.5x5.0) screws that secure the system board in place [1]. f) Lift the right side of the system board and remove the system board from the system chassis [2, 3]. Removing and installing components...

  • Page 78: Installing The System Board

    Installing the system board 1. To install the system board: a) Align the system board into its original position on the system [1, 2]. b) Replace the 2 (M2.5x5.0) screws to secure the system board in place [3]. c) Connect the LED board cable [1], speaker cable [2] and touchpad cable [3] to the connectors on the system board. d) Place the Type-C USB bracket onto its slot on the system [4].
  • Page 79 f) Connect the power connector cable and battery cable to the connectors on the system board [1, 2]. 2. Install the: Removing and installing components...

  • Page 80: Display Assembly

    graphic card heat sink assembly palmrest SIM card M.2 SSD card WWAN card WLAN card primary memory secondary memory base cover keyboard hard drive interposer board hard drive battery battery cover SD card 3. Follow the procedure in After working inside your computer.
  • Page 81 c) Remove the 2 (M2.5x6.0) screws at the rear of the system that secures the display assembly in place. Removing and installing components...
  • Page 82 d) Open the display assembly to a 180-degree angle. e) Remove the 4 (M2.5x4.0) screws that secures the display hinge caps to the system [1]. f) Remove the display hinge caps from the system [2]. g) Remove the single (M2.0x3.0) screw that secures the eDP cable bracket to the system board [1]. h) Remove the eDP cable bracket [2].

  • Page 83: Installing The Display Assembly

    j) Peel the adhesive tape that secures the eDP cable in place [4]. k) Unroute the wireless cable from the routing channels located next to the hinges . l) Remove the display assembly [5]. Installing the display assembly 1. To install display assembly: a) Align the display assembly into the slots on the system [1].
  • Page 84 f) Align the display hinge caps and replace the 4 (M2.5x4.0) screws to secure the display hinge caps to the system [1, 2]. g) Close the display assembly and replace the 2 (M2.5x6.0) screws at the rear of the system to secure the display assembly in place. h) Route all the wireless antenna cables to the routing channels at the bottom of the system and next to the hinge caps [1].

  • Page 85: Display Bezel

    2. Install the: palmrest WWAN card WLAN card base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Display bezel Removing the display bezel 1. Follow the procedure in Before working inside your computer.

  • Page 86: Installing The Display Bezel

    hard drive base cover WWAN card WLAN card palmrest display assembly 3. To remove display bezel: a) Using a plastic scribe pry the two recess points at the bottom edge of the display bezel [1]. b) Pry around the sides and top edge of the display bezel [2, 3, 4]. NOTE: While prying the display bezel, make sure to pry along the outside edge of the display bezel using your hands-using a screw driver or other sharp objects may damage the display cover.

  • Page 87: Display Panel

    2. Install the: display assembly palmrest WWAN card WLAN card base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Display panel Removing the display panel 1. Follow the procedure in Before working inside your computer.

  • Page 88: Installing The Display Panel

    3. To remove screws from the display panel : a) Remove the 4 (M2.0X3.0) screws that secure the display panel to the display assembly [1]. b) Lift the display panel and turn the display panel over to access the eDP cable [2]. 4.

  • Page 89: Display Hinges

    2. Install the: display bezel display assembly palmrest WWAN card WLAN card base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Display hinges Removing the display hinge 1. Follow the procedure in Before working inside your computer.

  • Page 90: Installing The Display Hinge

    WWAN card WLAN card palmrest display assembly display bezel display panel 3. To remove display hinge: a) Remove the 6 (M2.5x4.0) screws that secure the display hinges to the display assembly [1]. b) Remove the display hinges [2]. Installing the display hinge 1.

  • Page 91: Camera

    2. Install the: display panel display bezel display assembly palmrest WWAN card WLAN card base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Camera Removing the camera 1. Follow the procedure in Before working inside your computer.

  • Page 92: Installing The Camera

    palmrest display assembly display bezel display panel 3. To remove camera: a) Peel the adhesive tape that covers the camera module [1]. b) Disconnect the eDP cable from the camera module [2]. c) Carefully pry the camera module from the system [3]. Installing the camera 1.

  • Page 93: Edp Cable

    2. Install the: display panel display bezel display assembly palmrest WWAN card WLAN card base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. eDP cable Removing the eDP cable 1.

  • Page 94: Installing The Edp Cable

    WLAN card palmrest display assembly display bezel display panel 3. To remove eDP cable: a) Peel the adhesive tape covering the camera module [1]. b) Disconnect the eDP cable from the camera module [2]. c) Peel the eDP cable from the display cover and unroute the cable from the routing channels [3]. d) Remove the eDP cable from the system.

  • Page 95: Display Bracket

    2. Install the: display panel display bezel display assembly palmrest WWAN card WLAN card base cover hard drive keyboard battery cover battery SD card 3. Follow the procedure in After working inside your computer. Display bracket Removing the display support bracket 1.

  • Page 96: Installing The Display Support Bracket

    WLAN card palmrest display assembly display bezel display panel display hinge 3. To remove display bracket: a) Peel the adhesive tape that covers the display support bracket [1]. b) Remove the 6 (M2.0x3.0) screws that secure the display support brackets to the display cover [2]. c) Remove the display support brackets from the display cover [3].
  • Page 97 2. Install the: display hinge display panel display bezel display assembly palmrest WWAN card WLAN card base cover hard drive keyboard battery battery cover SD card 3. Follow the procedure in After working inside your computer. Removing and installing components...

  • Page 98: Troubleshooting

    Invoke diagnostics boot by either of the methods that are suggested below: 1. Power on the computer. 2. As the computer boots, press the F12 key when the Dell logo is displayed. 3. In the boot menu screen, use Up/Down arrow key to select the Diagnostics option and then press Enter.

  • Page 99: Battery Status Led

    Table 3. Diagnostic LED Blinking Pattern Possible Problem Suggested Resolution Amber White CPU failure Replace the system board System Board failure (included BIOS corruption or ROM error) Flash latest BIOS version. If problem persists, replace the system board No Memory/ RAM detected Confirm that the memory module is installed properly.

  • Page 100: Getting Help

    Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: 1.
