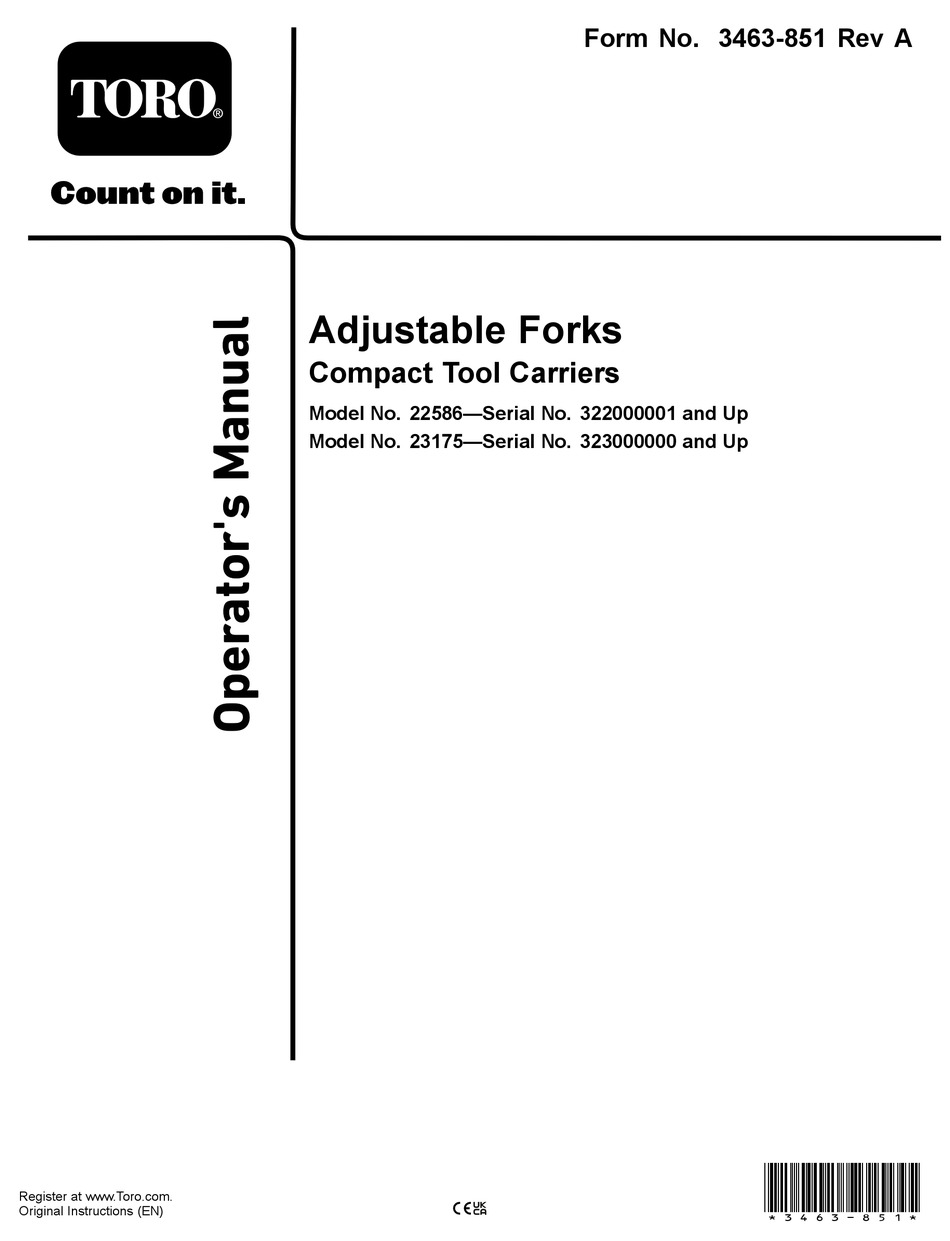

- Page 1 Form No. 3463-851 Rev A Adjustable Forks Compact Tool Carriers Model No. 22586—Serial No. 322000001 and Up Model No. 23175—Serial No. 323000000 and Up *3463-851* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Figure 1 The adjustable forks attachment is a load-bearing attachment intended to be used on a Toro compact 1. Model 22586 model and serial number location tool carrier. It is designed primarily for moving material such as posts, rocks, trees, pallets, etc. Using this product for purposes other than its intended use could prove dangerous to you and bystanders.
-
Page 3: Table Of Contents
Contents Safety ............... 4 g000502 Figure 3 General Safety ........... 4 Slope Safety ............4 1. Safety-alert symbol Forks Safety ............5 Maintenance and Storage Safety......5 Safety and Instructional Decals ......5 This manual uses 2 words to highlight information. Setup ................ -
Page 4: Safety
Slope Safety Safety • Operate the machine up and down slopes with the heavy end of the machine uphill. Weight General Safety distribution changes with attachments. An empty bucket makes the rear of the machine the heavy Always follow all safety instructions to avoid serious end, and a full bucket makes the front of the injury or death. -
Page 5: Forks Safety
TX as necessary. 1000 with wheels installed and the attachment retracted is 99 kg (220 lb). Decals 161-1097 and 161-1098 are only on Model 23175. decal161-1097 161-1097 1. Attention—read the Operator’s Manual. decal161-1098 161-1098 1. -
Page 6: Setup
Fork cross-section size 7.5 x 2.5 cm (3.0 x 1 inches) Fork width adjustment range 29 to 79 cm (11 to 31 inches) (outside to outside dimensions) Model 23175 Overall width 72.1 (28.4 inches) Overall length 118.1 cm (46.5 inches) Overall height 68.8 cm (27.1 inches) -
Page 7: Operation
Operation To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement Installing and Removing parts and accessories made by other manufacturers could be dangerous, and such use could void the the Attachment product warranty. -
Page 8: Operating Tips
Operating Tips Storage • To adjust the forks, slide them along the frame to Before long-term storage, wash the attachment the desired width. Adjust the forks to the widest with mild detergent and water to remove dirt and possible setting to ensure that the load is as stable grime. - Page 9 Notes:...
