Bimba MRS-.027-B Assembly Instructions

CONTENTS:

SWITCH MOUNTING INSTRUCTIONS

MRS-.027-B
Contacts ................................ SPST Form A
Contact Rating .......................3 Watts max.
Switch Voltage ...........28 Volts AC/DC max.
Maximum Current ................... 250 mA max.
Actuating Time Average ..... 1.0 millisecond
2 wire models, no LED
Bimba Manufacturing Company
Monee, IL 60449-0068
Telephone: 708.534.8544
Fax: 708.235.2014
Email: cs@bimba.com
www.bimba.com
MRS Magnetic Reed Switch
®
Pig Tail Lead (Quick Connect on reverse side)
MRS-.027-B, MRS-.027-BL
1 switch
1 band

ELECTRICAL SPECIFICATIONS

(Normally Open)
(Resistive)
RED
LOAD
BLACK

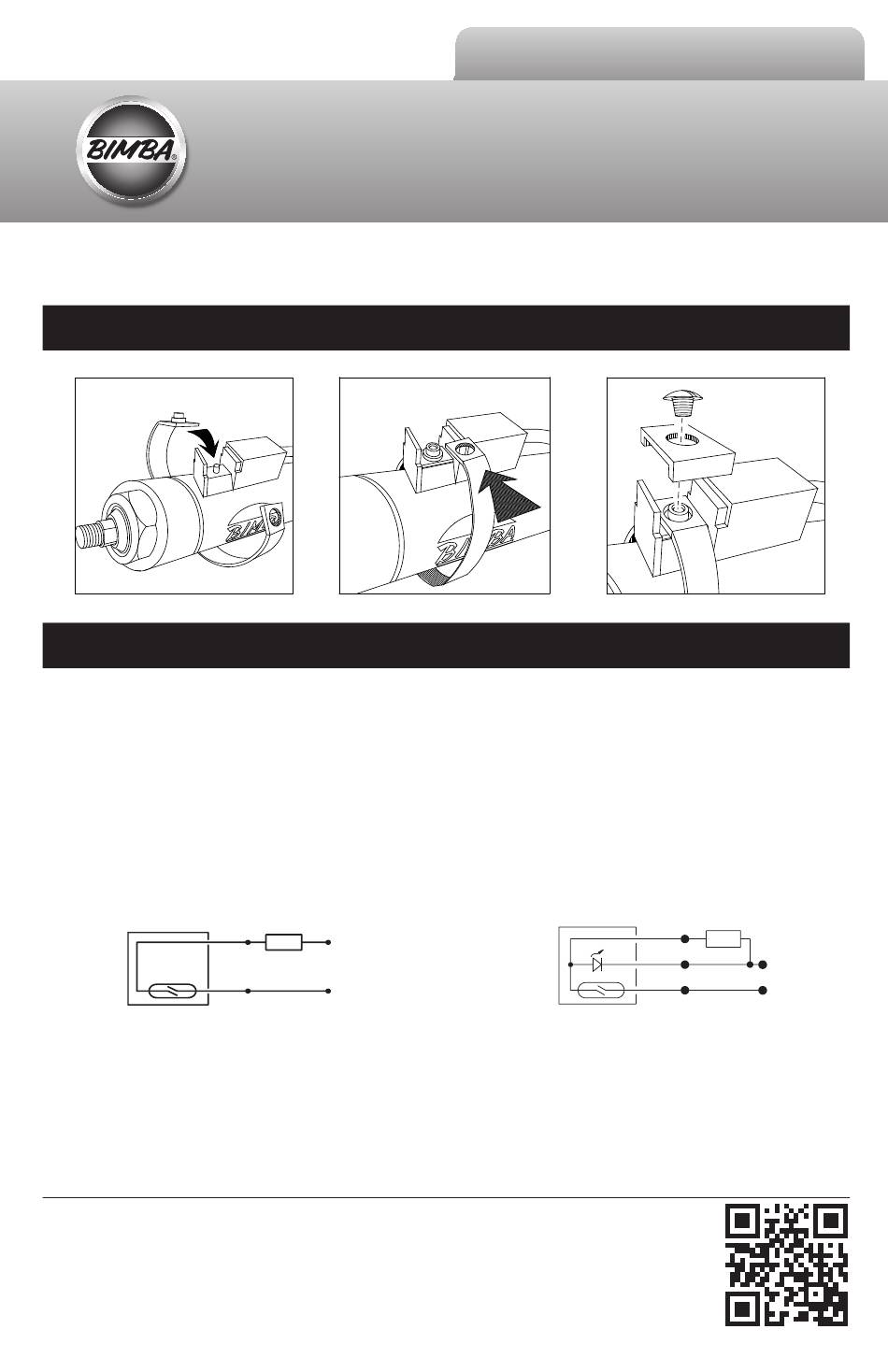

Assembly Instructions
1 U-shaped bracket
1 button head hex screw
MRS-.027-BL
Contacts ................................ SPST Form A
Contact Rating ....................2.8 Watts max.
Switch Voltage ........ 6 to 24 Volts AC or DC
Maximum Current ................... 250 mA max.
Actuating Time Average ..... 1.0 millisecond
3 wire models, with LED
Form: BMS-1028
rev. 1: EC-39223
T
o learn more about this
product, scan this QR code
with your mobile device.
(Normally Open)
(Resistive)
BLACK
LOAD
WHITE
–
RED
+
Amps.
