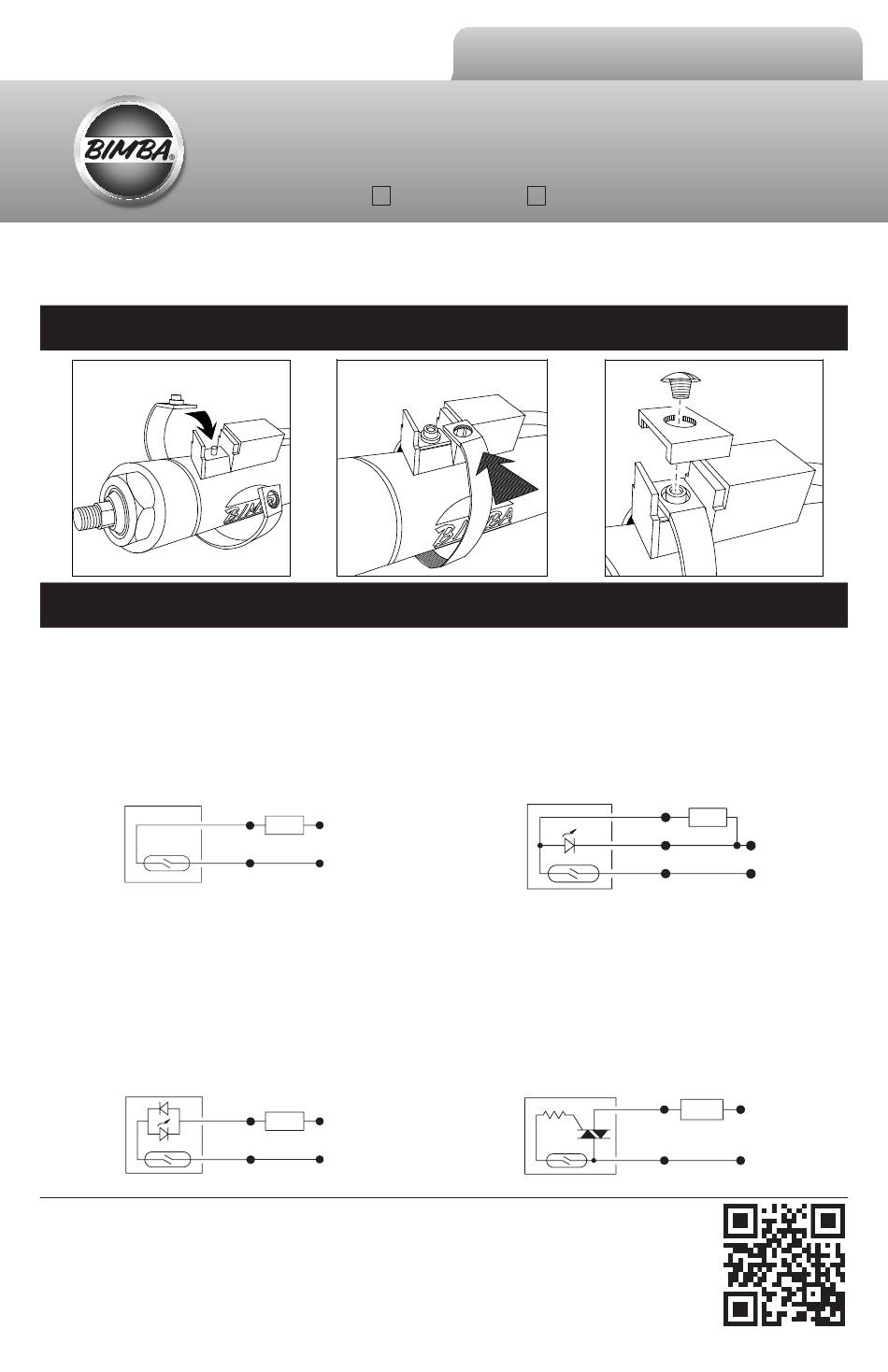

Bimba MRS-.087 Series Assembly Instructions

CONTENTS: 1 switch
1 U-shaped bracket
1 button head hex screw

SWITCH MOUNTING INSTRUCTIONS

MRS-.087-B
Contacts ..... SPST Form A (Normally Open)
Contact Rating .....................10 Watts max.
Switch Voltage .........200 Volts max. AC/DC
Maximum Current . 500 mA max. (Resistive)
Actuating Time Average ...................1.0 ms
BLACK
MRS-.087-PBL
Contacts ..... SPST Form A (Normally Open)
Contact Rating ....................2.5 Watts max.
Switch Voltage ...... 3 to 120 Volts AC or DC
Minimum Current ..............10 mA AC or DC
Maximum Current .............20 mA AC or DC
Actuating Time Average ...................1.0 ms
BLACK
Bimba Manufacturing Company
Monee, IL 60449-0068
Telephone: 708.534.8544
Fax: 708.235.2014
Email: cs@bimba.com
www.bimba.com
MRS Magnetic Reed Switch
®
Pig Tail Lead (Quick Connect on reverse side)
MRS-.087- , MRS-1.5-

ELECTRICAL SPECIFICATIONS

RED
LOAD
RED
LOAD
Assembly Instructions
(Band may be ordered separately)
MRS-.087-BL
Contacts ..... SPST Form A (Normally Open)
Contact Rating .......................9 Watts max.
Switch Voltage .........................6 to 24 Volts
Maximum Current . 500 mA max. (Resistive)
Actuating Time Average ...................1.0 ms
BLACK
WHITE
RED
MRS-1.5-B
Contacts ..... SPST Form A (Normally Open)
Voltage Rating ..... 12 to 230 Volts (AC only)
Minimum Current ..........................0.1 amps
Maximum Current ...1.5 amps @ 50ºF(10ºC)
Actuating Time Average ...................2.0 ms
BLACK
Form: BMS-1008
rev. 1: EC-37790
