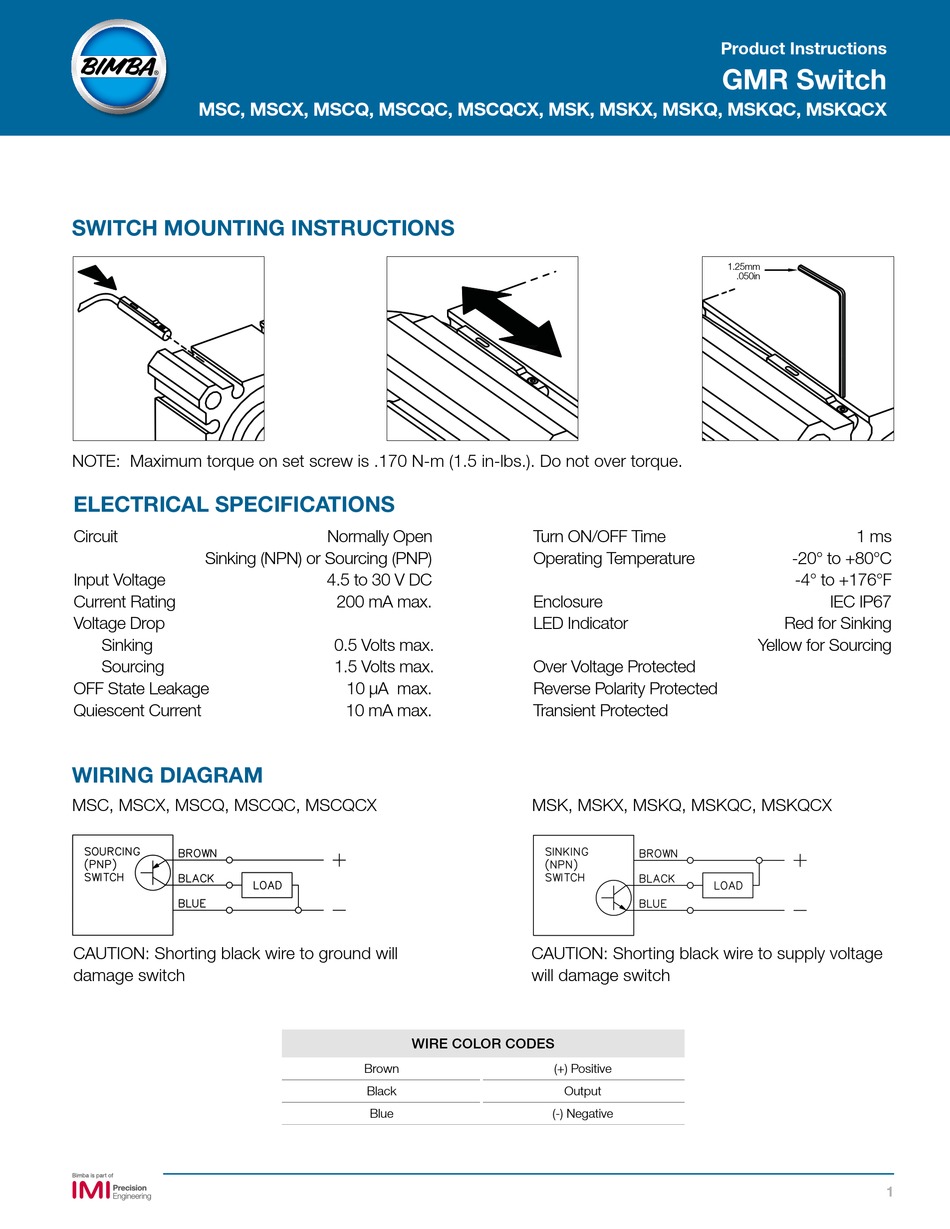

Bimba MSC Product Instructions

SWITCH MOUNTING INSTRUCTIONS

NOTE: Maximum torque on set screw is .170 N-m (1.5 in-lbs.). Do not over torque.

ELECTRICAL SPECIFICATIONS

Circuit
Input Voltage
Current Rating
Voltage Drop
Sinking
Sourcing
OFF State Leakage
Quiescent Current

WIRING DIAGRAM

MSC, MSCX, MSCQ, MSCQC, MSCQCX
MSC, MSCX, MSCQ (Sourcing, Solid State)
CAUTION: Shorting black wire to ground will
damage switch
S, MSX, MSQ
MSC, MSCX, MSCQ, MSCQC, MSCQCX, MSK, MSKX, MSKQ, MSKQC, MSKQCX
Normally Open
Sinking (NPN) or Sourcing (PNP)
4.5 to 30 V DC
200 mA max.
0.5 Volts max.
1.5 Volts max.
10 µA max.
10 mA max.
Brown
Black
Blue
1.25mm
.050in
Turn ON/OFF Time
Operating Temperature
Enclosure
LED Indicator
Over Voltage Protected
MR, MRX, MRQ (Reed Switch)
Reverse Polarity Protected
Transient Protected
MSK, MSKX, MSKQ, MSKQC, MSKQCX
MSK, MSKX, MSKQ (Sinking, Solid State)
CAUTION: Shorting black wire to supply voltage
will damage switch

WIRE COLOR CODES

(+) Positive
Output
(-) Negative
Product Instructions
GMR Switch
1.25mm
1.25mm 1.25mm
.050in
.050in .050in
-20° to +80°C
-4° to +176°F
Red for Sinking
Yellow for Sourcing
1 ms
IEC IP67
MS, MSX,
1
