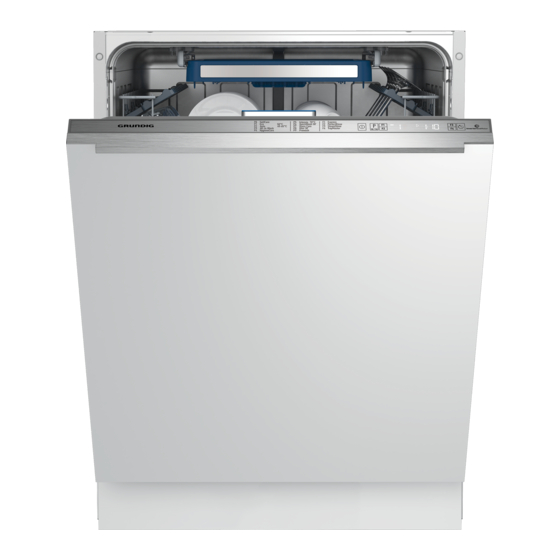

- Page 1 DISHWASHER USER INSTRUCTIONS GNV 41922 www.grundig.com...
- Page 2 DISHWASHER USER INSTRUCTIONS GNV 41922...
- Page 3 Please read this user manual first! Dear Customer, Thank you for preferring a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 4: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY 5 OPERATING THE AND ENVIRONMENT PRODUCT Keys ...............22 General safety ..........4 Intended use ........... 4 Preparing the machine ........23 Children’s safety ..........5 Programme selection ........23 Disposing of packaging material ....5 Auxiliary functions ........25 Transportation of the product ....... -
Page 5: Instructions For Safety And Environment
INSTRUCTIONS FOR SAFETY AND ENVIRONMENT • This section contains safety Never touch the plug with instructions that will help to get wet hands! Never unplug by protected from risk of personal pulling on the cable, always injury or property damage. Failure pull out by grabbing the plug. -
Page 6: Children's Safety
instructions for safety and environment • • This appliance is intended Do not forget to close the door to be used in household and of the product when leaving similar applications such as: the room where it is located. • - Staff kitchen areas in shops, Store all detergents and offices and other working... -
Page 7: Compliance With Weee Directive And Disposing Of The Waste Product
instructions for safety and environment Compliance with WEEE Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 8: Dishwasher
DISHWASHER Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. Upper cutlery basket 14. -
Page 9: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2006/95/EC, 2004/108/EC, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 10: Installation
INSTALLATION Appropriate installation Refer to the nearest Authorised Service Agent for installation of your product. To location make the product ready for use, make sure • Place the product on a solid and flat that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be installed... -
Page 11: Connection To The Drain
Installation Permitted water temperature: up to Attach the water discharge hose to the 25°C drainpipe without bending it. Tightly fix the The dishwasher may not be connected to water discharge hose to the drainpipe in open warm water devices or flow-through order to prevent any dislocation of the water water heaters. -
Page 12: Waterprotect
Installation • WaterProtect+ The specified voltage must be equal to your mains voltage. The WaterProtect+ system protects against • Do not make connections via extension water leaks that may occur at the hose inlet. cables or multi-plugs. Water contact with the valve box of the Damaged power cables must system must be avoided to prevent damage be replaced by the Authorised... -
Page 13: Preparation
PREPARATION Tips for energy saving Following information will help you use the product in an ecological and energy-efficient manner. Wipe away any coarse food remnants on the dishes before putting them in the product. Operate the product after filling it completely. -
Page 14: Adding Salt
Preparation Adding salt 5. If you will not start a washing programme immediately after adding the salt, run the Water softening system needs to be machine empty in the shortest programme to regenerated in order for the product dissolve and wash away the scattered salt in operates with the same performance the machine. -
Page 15: Tablet Detergents
Preparation Use powder detergent in short programmes without prewash since the solubility of the tablet detergent changes depending on the temperature and time. Excessive usage of powder detergents will cause the detergent not dissolve completely and will also cause scratches on the glassware. 2. -
Page 16: Rinse Aid
Preparation Information about suitable Depending on the model, salt places (detergent dispenser, indicator and/or rinse aid basket etc.) in the dishwasher to indicator should be enabled place the tablet can be found again if they are disabled amongst the usage instructions before. - Page 17 Preparation Decorative prints of chinaware as well as aluminum and silver items may get discoloured or tarnished after washing in the dishwasher just as it happens in handwashing as well. Some delicate glass types and crystals may become dull in time. We strongly recommend you to check if the tableware you are going to purchase is suitable...
- Page 18 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware DISHWASHER / USER INSTRUCTIONS 17 / 37 EN...
-
Page 19: Cutlery Basket
Preparation Cutlery basket Grab one of the upper basket wires (right or left) and lift it up (A). Cutlery basket is designed to wash your Repeat the same process to raise the other dishes such as knife, fork, spoon, etc. in an side of the basket. -
Page 20: Collapsible Upper Basket Tines
Preparation Collapsible upper basket tines Upper basket height adjustable rack Upper basket of the machine is equipped with tines with gradual folding system (A) Use the lower and upper parts of the height that you can lay down when you need a adjustable racks in the upper basket of larger space for large dishes. -
Page 21: Collapsible Lower Basket Tines
Preparation Collapsible lower basket tines Tray Wash Supports The six piece foldable tines (A) located Use the supports to wash trays in the bottom at the lower basket of the machine are basket. designed for an easier placement of large See the Auxiliary functions section for pieces such as pans, bowls, etc. -
Page 22: Upper Cutlery Basket
Preparation Upper cutlery basket The upper cutlery basket is designed for small dishes, or long items that cannot fit into the lower cutlery basket. After taking out the basket by lifting it up, remove the carrier part from the rails by pulling it towards yourself (C). -
Page 23: Operating The Product
OPERATING THE PRODUCT 1. On/Off key 5. Salt indicator 2. Programme Selection / Programme Not in use Cancel (3 seconds) key 7. Start / Cancel indicator 3. Function keys 8. Time Delay / Programme Time indicator Express 9. Time Delay key Perfect Rinse function 10. -
Page 24: Preparing The Machine
Operating the product Preparing the machine 1. Open the door of the dishwasher. 2. Place the dishes in accordance with the instructions in the user manual. 3. Make sure that the upper and lower impellers rotate freely. 4. Put adequate amount of detergent into the detergent dispenser. - Page 25 Operating the product /37 EN DISHWASHER / USER INSTRUCTIONS...
-
Page 26: Auxiliary Functions
Operating the product Auxiliary functions Automatic Detergent Detection Feature Washing programmes of your dishwasher The product has a feature to automatically are designed to obtain the best cleaning detect the type of the detergent and adjust effect, considering the type of the soiling, the washing programme and drying soiling degree and properties of the dishes system to the best performance. -
Page 27: Scheduling The Washing Time
Operating the product Scheduling the washing time Interior Lighting (Depends on the model) Time Delay Some models have interior lighting to If an economical electricity tariff is applied illuminate the interior when the door is in your region, you can use the Time opened. -
Page 28: Starting The Programme
Operating the product Cancelling the programme 1 countdown, 0:01 is displayed, close the door of the product and wait for the draining Open the door of the product Press and process complete. Draining is completed in hold the Programme Selection / Programme 2 minutes and the machine gives an audible Cancel keys for 3 seconds. -
Page 29: End Of Programme
Operating the product End of programme Water cut-off warning If mains water is cut or water inlet tap is When the programme you have turned off the machine cannot take water in selected comes to an end, an and E:02 icon will flash on the programme audible warning signal will warn indicator. -
Page 30: Cleaning The Filters
MAINTENANCE AND CLEANING Service life of the product extends and out and clean well under running water. frequently faced problems decrease if it is 1. Turn the micro filter (1) and coarse filter cleaned at regular intervals. (2) assembly counterclockwise and pull it out from its seating (A). -
Page 31: Cleaning The Hose Filter
Maintenance and cleaning 6. Place the coarse filter into the microfilter. Cleaning the impellers Make sure that it is properly seated. Turn Clean the impellers at least once a week in the coarse filter clockwise until a “click” order for the machine operates efficiently. sound is heard. -
Page 32: Upper Impeller
Maintenance and cleaning Upper impeller Ceiling Impeller Check if the holes on the upper impeller (1) Check if the holes on the top ceiling impeller are clogged. If they are clogged, remove (1) of your machine are clogged. If they are and clean the impeller. -
Page 33: Troubleshooting
TROUBLESHOOTING Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 34 Troubleshooting • Selected programme is unsuitable. >>> Since rinsing temperature is low at programmes with short duration, drying performance will also be low. Select programmes with longer duration for a higher drying performance. • Surface quality of the kitchen utensils is deteriorated. >>> Desired washing performance can not be obtained at kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well.
- Page 35 Troubleshooting of the machine completely in order to avoid odour build up in machine. You can also use commercially available odour removers or machine cleaners. Rust, discoloration or surface deterioration occurs on dishes • Salt leakage exists. >>> Salt may cause deterioration and oxidation on metal surfaces. Pay attention not to spill salt around the salt filling hole while adding salt.
- Page 36 Troubleshooting Decorations and ornaments on kitchen utensils are being erased. Decorated glasses and decorated luster porcelains are not suitable for washing in the dishwasher. Manufacturers of glassware and porcelain tableware items do not recommend washing such kitchen utensils in the dishwashers either. Dishes are scratched.
- Page 37 Troubleshooting Kitchen utensils are broken. • Dishes are not placed orderly in the machine. >>> Load the dishes as described in the user manual. • Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity. Water remains in the dishwasher at the end of the programme. •...
- Page 38 www.grundig.com...
