Lunos 5/EC-ZI 90 Manual

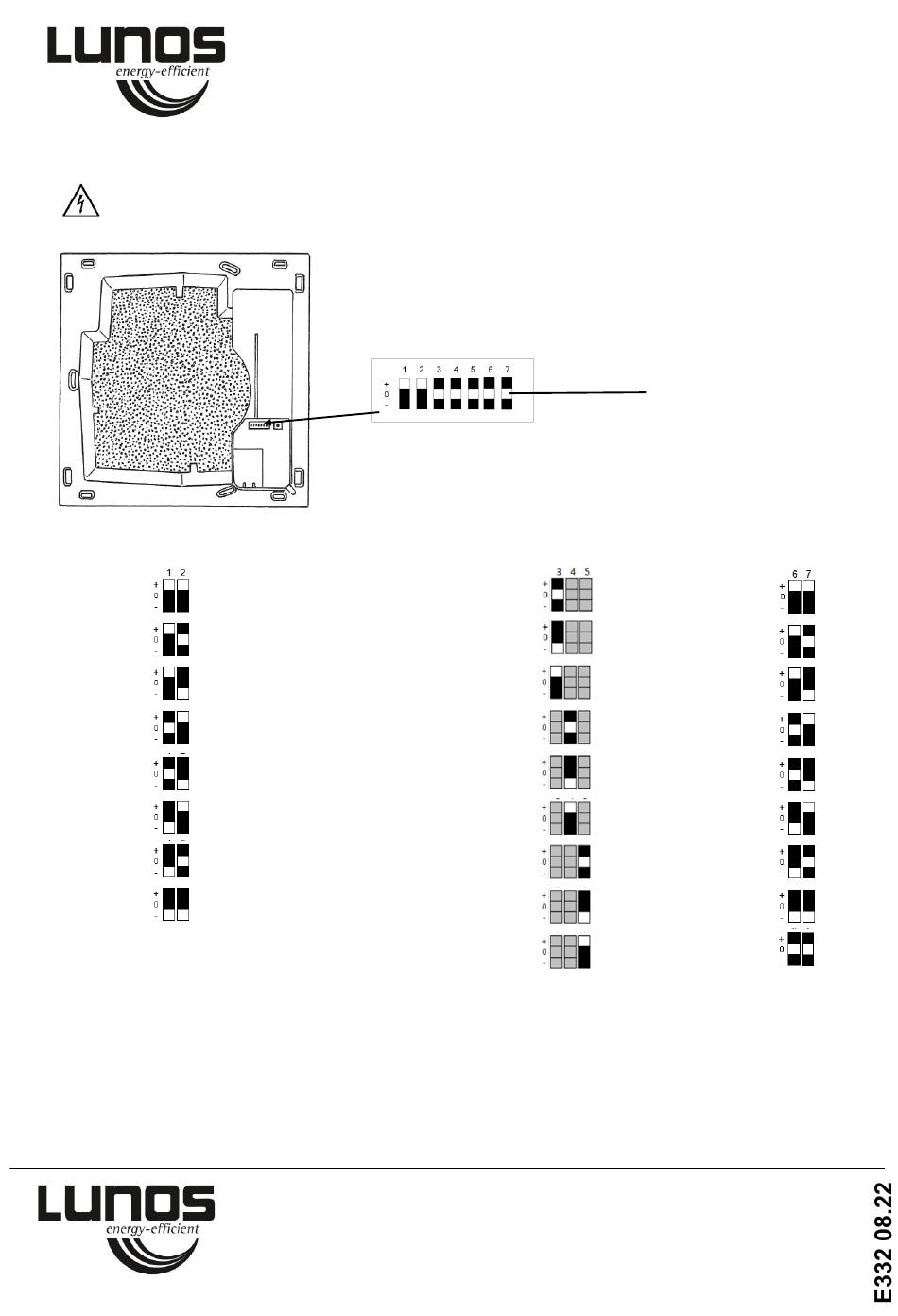

You have the option of setting a variety of fan functions via the DIP switches on the control board!
Each of the white switches has three setting options!
Attention! Adjust the switch only when the ventilation unit is voltage-free!
Basic Ventilation
0 m³/h
15 m³/h
20 m³/h
30 m³/h
40 m³/h
45 m³/h
50 m³/h
60 m³/h
* The time functions Interval operation and Run-on time are always carried out at the set regulated ventilation level (DIP switches
6 and 7).
The characteristic curve of the level 60 m³/h is part of the DIBt approval Z-51.1-215 and can be taken from it. The characteristic
curve is also summarized with all other characteristic curves in a separate document that can be downloaded from
www.lunos.de.
The fans of the Silvento ec series can be configured in combination with the circuit boards listed above and the volume flow can
be calibrated. Instructions can also be found at www.lunos.de.
The volume flows specified in the accompanying documents refer to the installed condition, taking into account correct design/
planning and corresponding installation.
DIP Switch Settings of the Silvento ec in Connection with the
Boards of Type 5/EC-ZI 90 and 5/EC-FK 90
Factory setting:
Basic ventilation:
Nominal load stage:
Interval:
Run-on time:
Switch-on delay:
Changing the settings:
1. Remove the design screen
2. Make the desired settings
3. Remount in reverse order
Time Functions
Interval OFF
Interval ON*
Fan runs every 4 hrs. for 30 min
Interval ON*
Fan runs every 2 hrs. for 15 min
Run-on time OFF
Run-on time ON*
Fan runs on for 15 min
Run-on time ON*
Fan runs on for 30 min
Switch-on delay OFF
Switch-on delay 120 s
Switch-on delay 45 s
LUNOS Germany
LUNOS Lüftungstechnik GmbH & Co. KG
für Raumluftsysteme
Wilhelmstr. 31
13593 Berlin ∙ Germany
White Switch
Regulated Ventilation
0 m³/h
15 m³/h
20 m³/h
30 m³/h
40 m³/h
45 m³/h
50 m³/h
60 m³/h
90 m³/h
Phone: +49 30 / 36 20 01 - 0
Fax: +49 30 / 36 20 01 - 89
info@lunos.de
www.lunos.de
OFF
90 m³/h
OFF
OFF
OFF
