7 Manual Setting

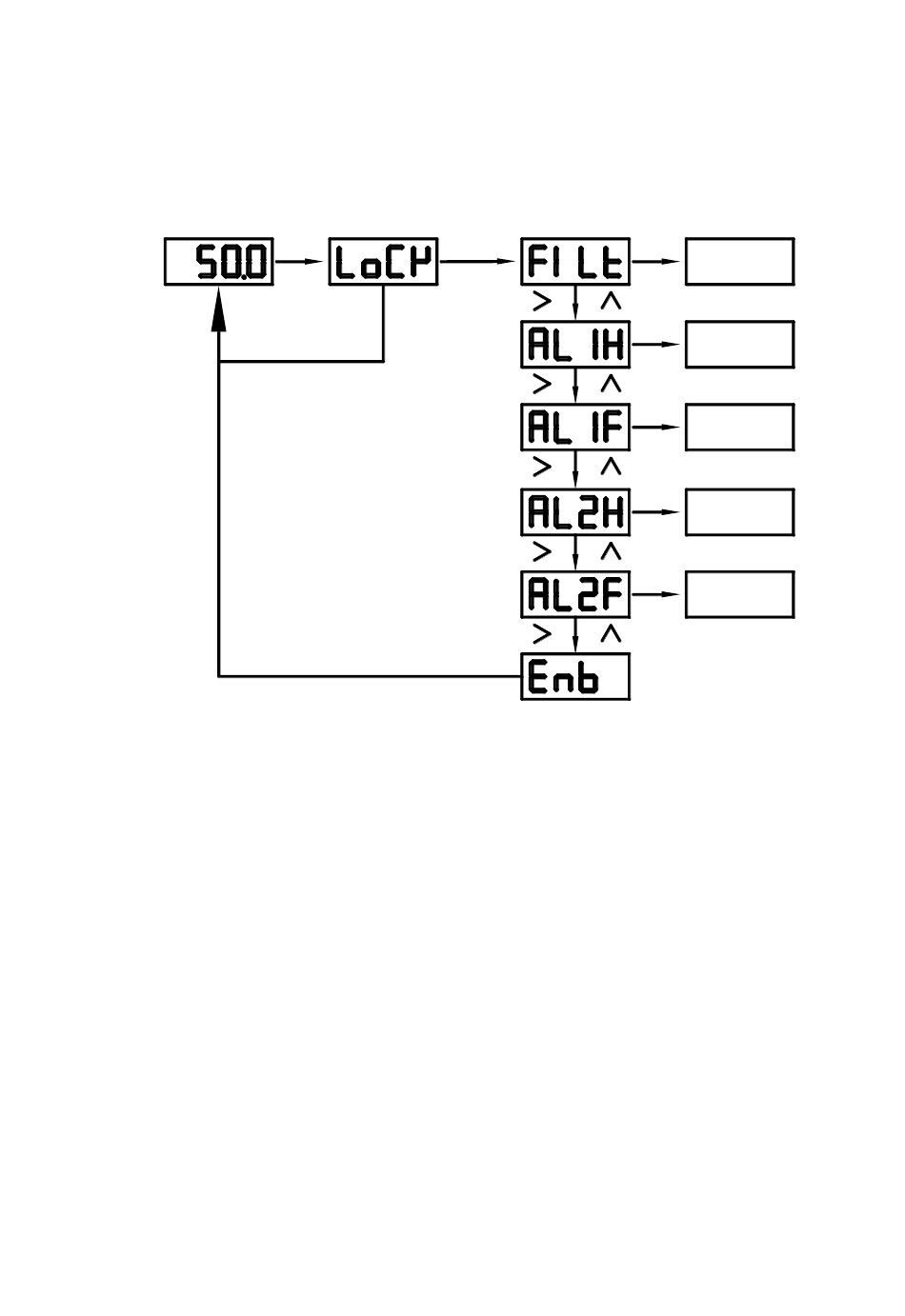

Switch point setting process:
Measurement Status
FILT This value is the display filter coefficient.
AL1H: This value is the pull-in value of switch 1 (AL1/SP1).
AL1F: This value is the release value of switch 1 (AL1/SP1).
AL2H: This value is the pull-in value of switch 2 (AL2/SP2) .
AL2F: This value is the release value of switch 2 (AL2/SP2).
END: Save and exit.
Note:
If AL1H>AL1F, then this SP1 is the upper limit alarm mode.
If AL1H<AL1F, then this SP1 is the lower limit alarm mode,
Correct Password 0001
SET
Incorrect Password
7
SET
Display Filter
SET
AL1 Pull-in Value
SET
AL1 Release ValueL
SET
AL2 Pull-in Value
SET
AL2 Release ValueL
