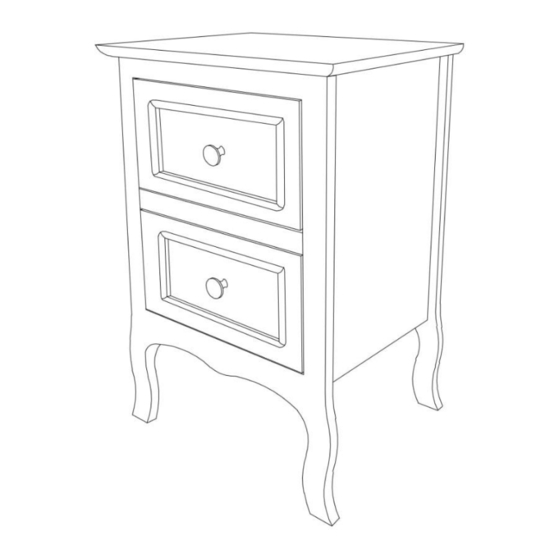

INSTRUCTION MANUAL
Thank you for your purchase.
Please contact us if you have difficulty with assembly
or need replacement parts.
Vingli Customer Service team is here to assist you.
Here is how we can connect:
Email: support@bonnlo.com
Parts List
Part List
Description
TOP BOARD
SIDE PANEL
BACK PANEL
FRONT PANEL
DRAWER FRONT BOARD
DRAWER BACK BOARD
DRAW SIDE BOARD
Qty.
Drawings
1PC
2PCS
1PC
1PC
2PCS
2PCS
4PCS
1
Advertisement
Related Manuals for Bonnlo FT010BT
Summary of Contents for Bonnlo FT010BT
- Page 1 2PCS Thank you for your purchase. Please contact us if you have difficulty with assembly or need replacement parts. Vingli Customer Service team is here to assist you. DRAW SIDE BOARD 4PCS Here is how we can connect: Email: support@bonnlo.com...
- Page 2 STEP 1 DRAWER BOTTOM BOARD 2PCS KNOB 2PCS SCREW 2PCS SCREW 8PCS CAM BOLT 24PCS CAM LOCK 24PCS STEP 1 WOOD DOWEL 4PCS 1.Insert the cam bolts (D) to the drawer front board (5). TOOLS NEEDED FOR ASSEMBLY: PHILIPS SCREWDRIVER (NOT INCLUDED) 2.Attach the knob (A) to the front drawer board (5) with the screw (B) tighten in the inside part.
- Page 3 STEP 2 STEP 3 STEP 3 STEP 2 1.Insert the cam bolts (D) to the back panel (3). 1.Attach the drawer side board (7) with the drawer back board (6) using screw (C). 2.Attach the drawer bottom board (8) with the drawer side boards STEP 4 3.Attach the drawer front board (5) to the drawer side boards (7) with the cam lock (E).
- Page 4 STEP 5 STEP 6 STEP 5 STEP 6 1. Attach the side panel (2) to the back panel (3), and use the cam 1. Attach the front panel (4) to the side panel (2), and use the cam lock (E) tighten the cam bolts on each side. lock (E) tighten the cam bolts on each side.
- Page 5 STEP 7 STEP 8 STEP 7 1.Insert the cam bolts (D) to the top board (1). STEP 8 1.Insert wood dowels (F) into the left and right side panel. 2.Attach the top board (1) with the left and right side panel, and use the screw driver to tighten the cam locks (E) to the side panels.
- Page 6 STEP 9 STEP 9 1.Slide the drawer into the frame, then you’ve finished assembling your nightstand!
