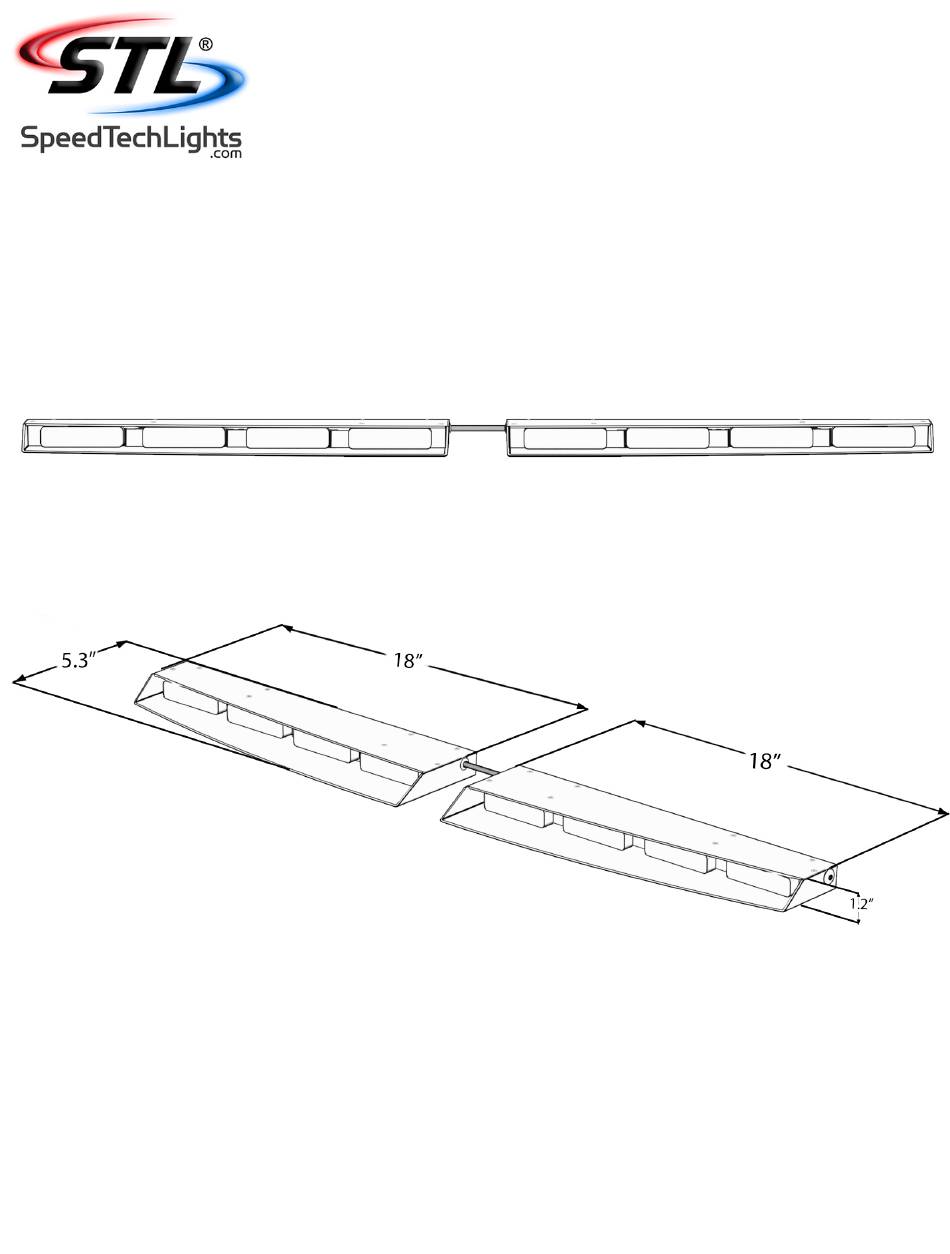

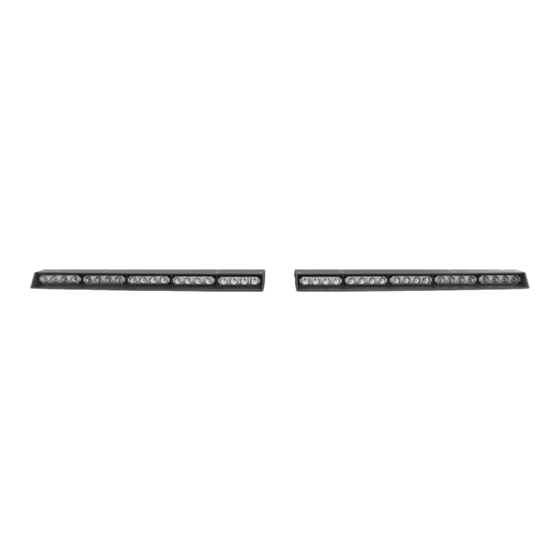

VISOR LIGHT BAR
B-RTX8
INSTRUCTION MANUAL
1
SpeedTech Lights, Inc © 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAPTOR-X TIR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SpeedTech Lights RAPTOR-X TIR

  • Page 1 - X TIR RAPTOR ® VISOR LIGHT BAR B-RTX8 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2022...
  • Page 2 SpeedTech Lights, Inc assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of the warning devices and safe operation of the emergency vehicle. Since the operator is under stressful environments the equipment must be properly wired and mounted to ensure effectiveness and safety.
  • Page 3: Maintenance

    • Use Water (H2O) with a soft cloth to clean your Light Bar and lenses. • Yellowing of clear lenses may occur overtime. Lenses can be purchased by calling STL Customer Service at 800-757-2581. SpeedTech Lights, Inc © 2022...
  • Page 4 NOT cross connect wires. Use the reattached connector from the end of the main cable harness to plug into the control box. • NOTE: DO NOT leave connectors, cables, solder points exposed to heat, moisture, or debris. SpeedTech Lights, Inc © 2022...
  • Page 5 Q-RVT07: Chevy Tahoe (2007-2014) Driver Center Passenger Side Side Q-RVC11: Dodge Charger (2011+) Driver Center Passenger Side Side Q-RVR15: Dodge Ram (2015+) Driver Center Passenger Side Side Q-RVIT11: Ford Taurus/ Interceptor (2011+) Driver Center Passenger Side Side SpeedTech Lights, Inc © 2022...
  • Page 6 Side Q-RVF15: Ford F-150 (2015+) Driver Center Passenger Side Side Q-RVE11: Ford Explorer (2011-2019) Driver Center Passenger Side Side Q-RVE20: Ford Explorer (2020+) Driver Center Passenger Side Side Q-RVU: Universal Short Base Long Fork Fork SpeedTech Lights, Inc © 2022...
  • Page 7 3. Use (2) flat washers, (2) split lock washers, and (2) hex nuts to secure each bracket set to the unit. 4. Apply the included rubber protective strips to prevent windshield chatter. 5. Now position the forks to line up with your visor joints and secure. SpeedTech Lights, Inc © 2022...
  • Page 8 Now you will be able to adjust the unit laterally as well as front to back in order to position the forks to line up with your visor joints and secure. NOTE: All vehicle specific brackets have the same mounting versatility as above. See exhibits below: SpeedTech Lights, Inc © 2022...
  • Page 9 NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVE20: Ford Explorer (2020+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. SpeedTech Lights, Inc © 2022...
  • Page 10 NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVT07: Chevy Tahoe (2007-2014) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. SpeedTech Lights, Inc © 2022...
  • Page 11 NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. Q-RVR15: Dodge Ram (2015+) Driver Side Center Center Passenger Side NOTE: Universal Base bracket can also be added for additional lateral and/or forward adjustment if necessary. SpeedTech Lights, Inc © 2022...
  • Page 12 Apply the pieces of double sided chatter guard tape squares across the length of the extender to ensure tight contact with the Raptor housing to prevent chatter. Use the base screws to secure the visor extender into final position. SpeedTech Lights, Inc © 2022...
  • Page 13 SpeedTech Lights, Inc, except for non-commercial purposes as permitted by United States copyright law. Customers of SpeedTech Lights, Inc, may download and print this Instruction Manual for use with products sold to the customer by SpeedTech Lights, Inc. However, no part of this Instruction Manual may be otherwise or subsequently reproduced, downloaded, disseminated, published, or transferred, in any form or by any means, except with the prior written consent of SpeedTech Lights, Inc.
