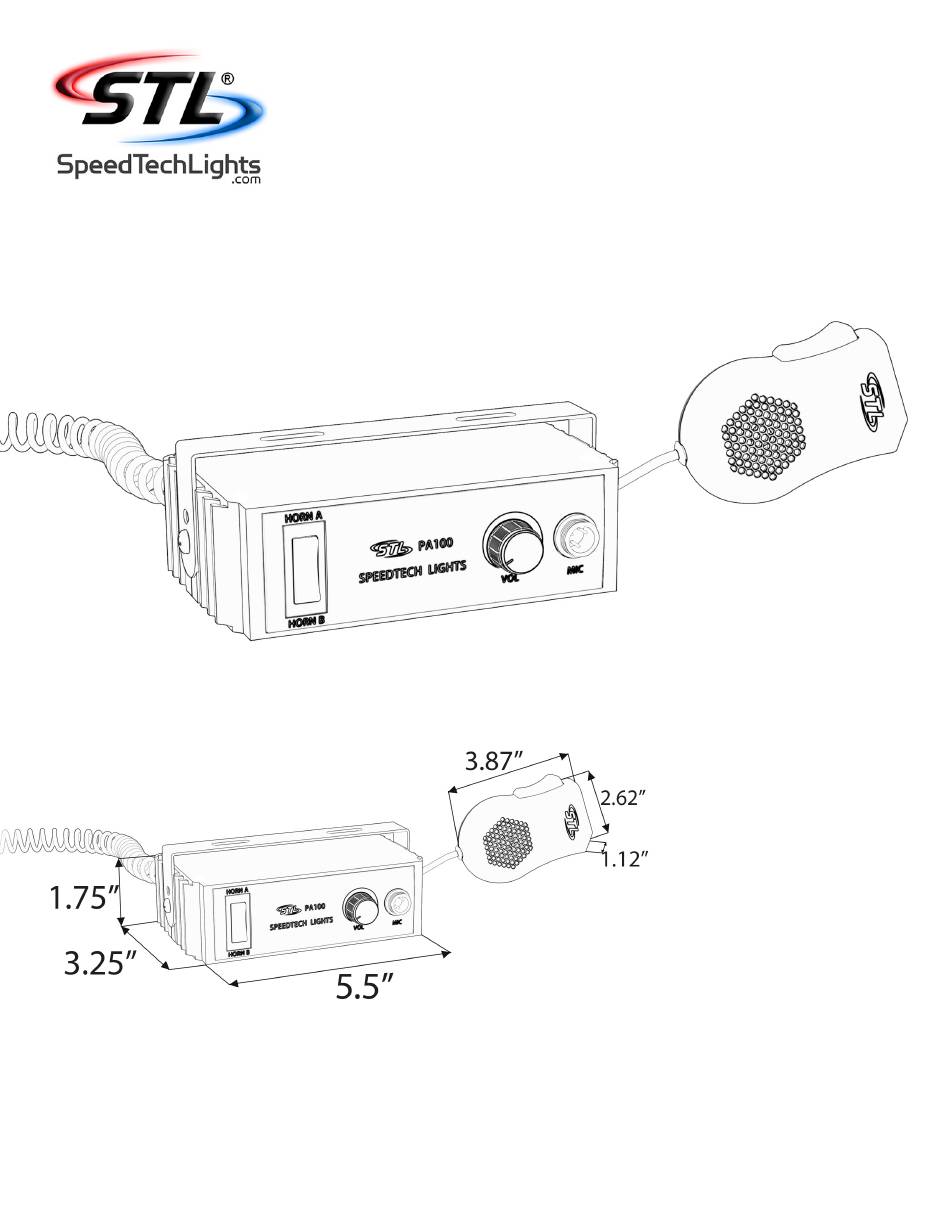

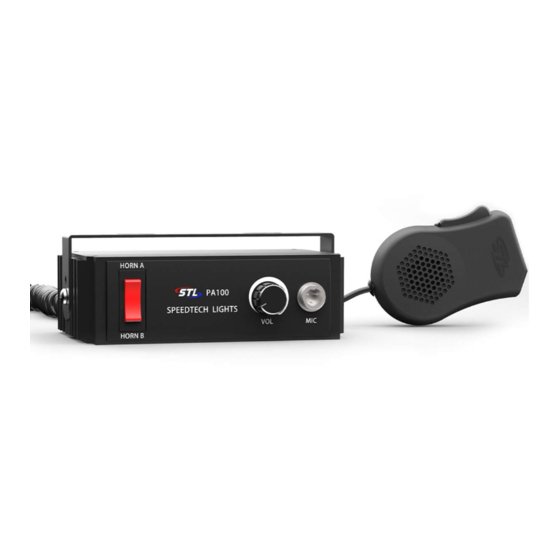

PA 100 AIR HORN

PUBLIC ADDRESS

S-HPA100

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the PA 100 AIR HORN and is the answer not in the manual?

Page 2 SpeedTech Lights, Inc assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of the warning devices and safe operation of the emergency vehicle. Since the operator is under stressful environments the equipment must be properly wired and mounted to ensure effectiveness and safety.
Page 3 PA 100 AIR HORN PUBLIC ADDRESS Important Points for Your Safety and Longevity of Your Light Bar • Installers are required to have a good understanding of automotive electronic systems and procedures for proper installation. • Never stare directly into the LEDs as momentary blindness and/or eye damage may occur.
Page 4 PA 100 AIR HORN PUBLIC ADDRESS Wiring Harness Diagram Wire Color Function Positive Red* Negative Black* Primary Speaker Brown Primary Speaker Brown * Indicates a main power cable. Specifications Ohms 11 Ω Cable Length 6’ PA Operation Power/Volume Knob: •...
Page 5 Lights, Inc, except for non-commercial purposes as permitted by United States copyright law. Customers of SpeedTech Lights, Inc, may download and print this Instruction Manual for use with products sold to the customer by SpeedTech Lights, Inc. However, no part of this Instruction Manual may be otherwise or subsequently reproduced, downloaded, disseminated, published, or transferred, in any form or by any means, except with the prior written consent of SpeedTech Lights, Inc.
