Summary of Contents for Streetwize SWINV1500

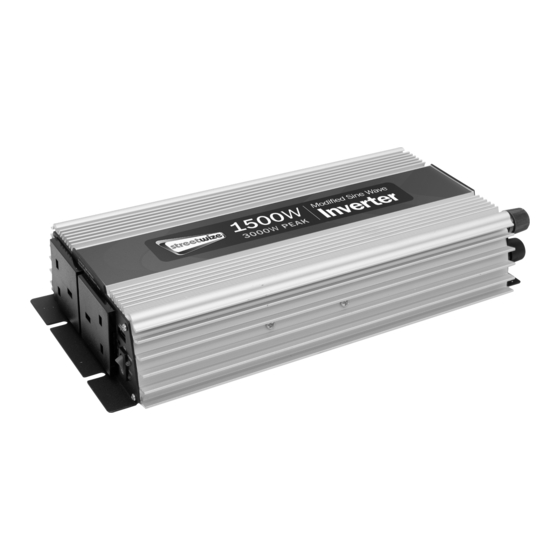

- Page 1 SWINV1500 1500W Modified Sine Wave Inverter 3000W PEAK Information for use...
- Page 2 Running time at rated continuous rated power Recommended battery 1 hour 12V/150Ah Health & Safety Guidelines IMPORTANT: This inverter is only suitable for use with 12V batteries only. Warning! Electric Hazard. Keep away from children 1. This inverter is not a toy, and it should never be used by children. 2.
- Page 3 Intention For Use Thank you for purchasing this 1000W modified sine wave inverter from Streetwize. This inverter safely converts your vehicle’s 12V DC battery into a 240V AC power supply for using standard UK electrical appliances that require up to 1000W.
- Page 4 Product Elements 1. Modified sine wave inverter 2. Battery clamp connection cables Pure Sine Wave & Modified Sine Wave Inverters There are two types of inverters: Pure Sine Wave & Modified Sine Wave. The figure below shows a graphical comparison of modified sine wave inverters and pure sine wave inverters.
- Page 5 12V Socket To use the inverter via your vehicle’s 12V socket, simply connect the O-rings of the 12V connection cable to the inverter’s terminals, with the black cable going to the negative terminal and the red cable going to the positive terminal. Plug the 12V plug into the 12V socket, then switch on your vehicle.
- Page 6 After Use After you have finished using the inverter (or when the inverter is not in use), turn off the unit and make sure your vehicle’s fully switched off. Then, turn the unit off and then disconnect the inverter from the 12V power supply. When discon- necting from the battery, disconnect the negative cable first, followed by the positive cable.
- Page 7 Troubleshooting What To Do When The Inverter Is Not Working Troubleshoot/Problem Possible Cause Suggested Solution No AC out - the green LED light DC input is below 10V Recharge or replace the battery is not coming on No AC output - the inverter is Poor connection with the Switch off vehicle &...
- Page 8 (see Technical Specifications) along with the technical query and proof of purchase. Technical Specifications Product Name/Code Streetwize 1500W Modified Sine Wave Inverter/SWINV1500 Max Contiuous Power 1500W Peak Power 3000W...
