Lorex SG6228 Quick Setup Manual

5. Operate the Camera

light shows the
current channel
repeatedly press
to choose channel
Use the channel selector switch to set the accessory
wireless camera to a different channel than the other
wireless cameras that are already connected.
Holding this button for 3 seconds turns the camera
ON/OFF. An LED light will be illuminated when the
camera is set to "ON".
For optimum reception, you may need to try changing
to alternate channels on both the receiver and camera, between
1-4.
Please refer to the Owner's Manual of your original system
for instructions on setting the Dwell Time and Auto Scanning
Congratulations! You have successfully
expanded your Wireless Security System.

Camera Specifications

Image Sensor 1/3" CMOS Color NTSC
Resolution 240 TV Lines
Lens 3.6 mm F 2.0
Min. Illumination 3 LUX (without IR LED)
Transmitting Freq. 2.411 GHz ~ 2.473 GHz (4 Ch)
Power Source 9 V DC 300 mA Adaptor
Dimensions 2.5"w x 3.5"h x 1.5"d
It's all on the web
Product Information
Specification Sheets
User Manuals Software Upgrades
Firmware Upgrades
Quick Start Guides
V I S I T
w w w . l o r e x c c t v . c o m
Strategic Vista International Inc.
Copyright © 2005 Strategic Vista International Inc
As our products are subject to continuous improvement, SVII and its
subsidiaries reserve the right to modify product design, specifications
and prices, without notice and without incurring any obligation. E&OE
B U S I N E S S & H O M E
A C C E S S O R Y 2 . 4 G H z 4 C H A N N E L
C O L O R W E A T H E R R E S I S T A N T *
Quick Set-up Guide
* IP44 rated for Indoor and Outdoor use. Not recommended for direct
exposure to water, rain or snow.
C A M E R A

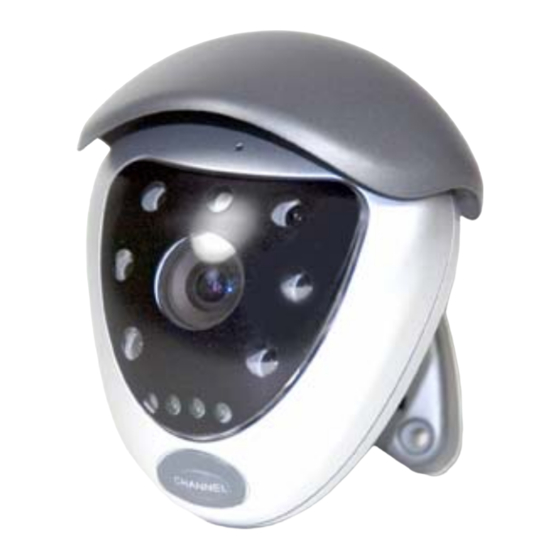

Model SG6228
