Summary of Contents for Silver King SKFI15-EL

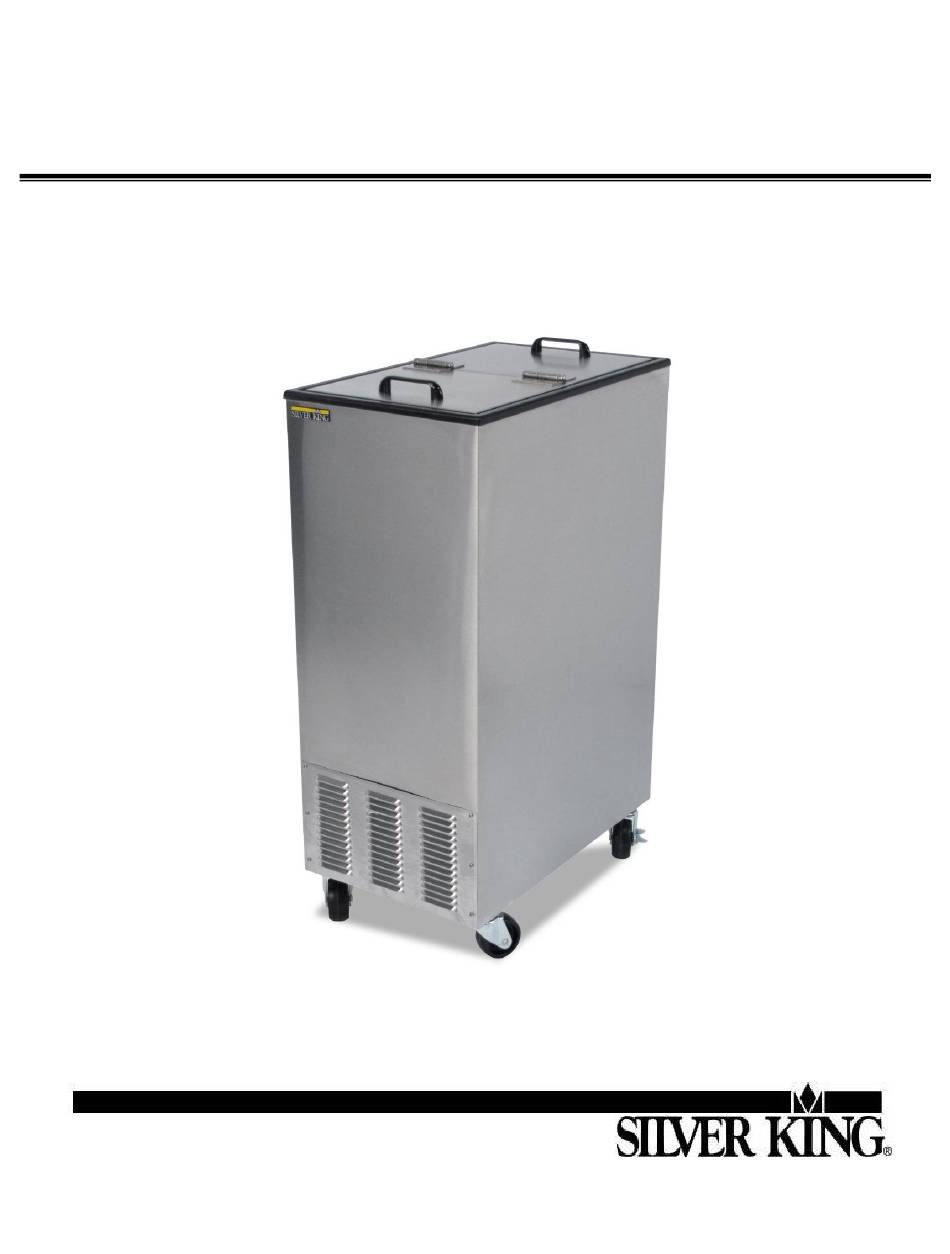

- Page 1 Technical Manual Replacement Parts List Mobile and Meatwell Freezers MODELS: SKFI15-EL 115V SKFI15-EL 230V Marmon Foodservice Technologies 355 Kehoe Blvd., Carol Stream, IL 60188 Contact: (800) 328-3329 Silverking.com FORM 45366 REV E 01/2023 Specifications Subject to Change Without Notice.
- Page 2 UNCRATE AND INSPECT FOR DAMAGE Upon delivery of your new Silver King unit, uncrate at once to inspect for possible freight damage following the instructions printed on the exterior of the container. Report any damages to the carrier responsible for transportation and promptly present a written claim for any evidence of mishandling.
-
Page 3: Different Types Of Alerts
Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner’s guide before attempting to service this product. All safety precautions must be followed. Caution – Risk of fire or explosion. To be repaired only by trained service personnel. Use only Silver King approved replacement parts. Flammable refrigerant used. Caution –... - Page 4 SAFETY PRECAUTIONS (Continued): WARNING - Do not use electrical appliances inside the food/ice storage compartments unless they are of the type recommended by the manufacturer. WARNING - Appliances and their surroundings shall not attain excessive temperatures in normal use. WARNING - Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
-
Page 5: Installation
Your Silver King refrigerator is equipped with an eight (8) foot power cord. Any attempt to modify the plug will void the warranty, terminate the manufacturers responsibility, and could result in serious injury. - Page 6 R290 R PECIALIZED RECAUTIONS AND UIDELINES FOR ERVICING NITS SING EFRIGERANT: Qualification of Service Personnel/Workers: Required qualification of working personnel for maintenance, service and repair operations. Every working procedure that affects safety means shall only be carried out by competent persons. Examples for such working procedures are: ·...
- Page 7 Checks to the Refrigeration Equipment: Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer’s technical department for assistance.
- Page 8 Cabling: Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse physical or environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
-
Page 9: Charging Procedures
Charging Procedures: In addition to conventional charging procedures, the following requirements shall be followed. WARNING: Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. WARNING: Cylinders shall be kept in an appropriate position according to the instructions. -
Page 10: Operation
Defrost The Silver King freezer is a manual defrost unit. The unit should be defrosted whenever the walls accumulate a frost layer that is 1/4 inch thick. To defrost the unit, either turn the Temperature Control to the ‘off’ position or disconnect the Power Cord from the electrical receptacle and remove or open the Lid Assembly. - Page 12 REPLACEMENT PARTS LIST - SKFI15-EL 115V/230V ITEM NO. PART DESCRIPTION PART NO. COVER ASSEMBLY COMPLETE 39277-SK KIT HINGE (HINGE, COVERS, SCREWS) 46944s HANDLE COVER 28788 TEMPERATURE CONTROL ELECT 115V (BLUE LED) 39592 47319-SK TEMPERATURE CONTROL ELECT 230V (BLUE LED) 38822...
- Page 13 Thermistor Field Testing Use the guide below to test if a thermistor (temperature probe) is functioning properly. See the replacement parts list for part number information. Table 2 is valid for all thermistors listed on table 1. • Establish Thermistor Temperature ▪...
- Page 14 90 DAY REPLACEMENT PARTS WARRANTY Silver King warrants to the original Equipment purchaser that a replacement OEM part thereof will be free of defects in material and workmanship, under normal use and service, for a period of 90 days from the date of original purchase of such replacement OEM part subject to all terms and conditions herein.
- Page 15 Silver King’s review to be inefficient or inoperative due to defects in material or factory workmanship.
-
Page 16: Product Ordering Information
An RMA (Returned Merchandise Authorization) form must be completed and then approved by Silver King. Please contact Silver King for details. Restocking fee will apply. All electrical equipment is single phase. Prices, designs, and specifications are subject to change without notice.
