Pull-out shelves for corner cabinet, two melaminated bottom shelves with
chromed wire rail. Right and left version.
FITTINGS
N° 12 6,3x16 mm Euroscrews
N° 28 4x25 mm Self tapping screws
PARTS
A. N°2 Shelves
B. N°2 Slides
C. N°2 Mechanisms
D. N°1 Mounting template
E. N°2 Plastic bush
F. N°4 Stopper
G. N°2 Pivoting guide
H. N°5 Caps
I. N°1 Drilling template
MAINTENANCE
Clean with a soft, dry cloth. Avoid using solvents or abrasive.
TOOLS
LEFT
A
C
F
E
Storg Elska Pull-Out Cloud
ST22PCL.2PCP450L.CPWH
ST22PCL.2PCP450R.CPWH
RIGHT
B
H
I
Nuvola 40 Min. 360 Min.800
Nuvola 45 Min. 410 Min.900
Nuvola 50 Min. 460 Min.900
Nuvola 60 Min. 560 Min.1000
ATTENTION
D
G
A
B
C
470
490
490
490
Advertisement
Table of Contents
Related Manuals for Furnware Storg ST22PCL.2PCP450L.CPWH
Summary of Contents for Furnware Storg ST22PCL.2PCP450L.CPWH

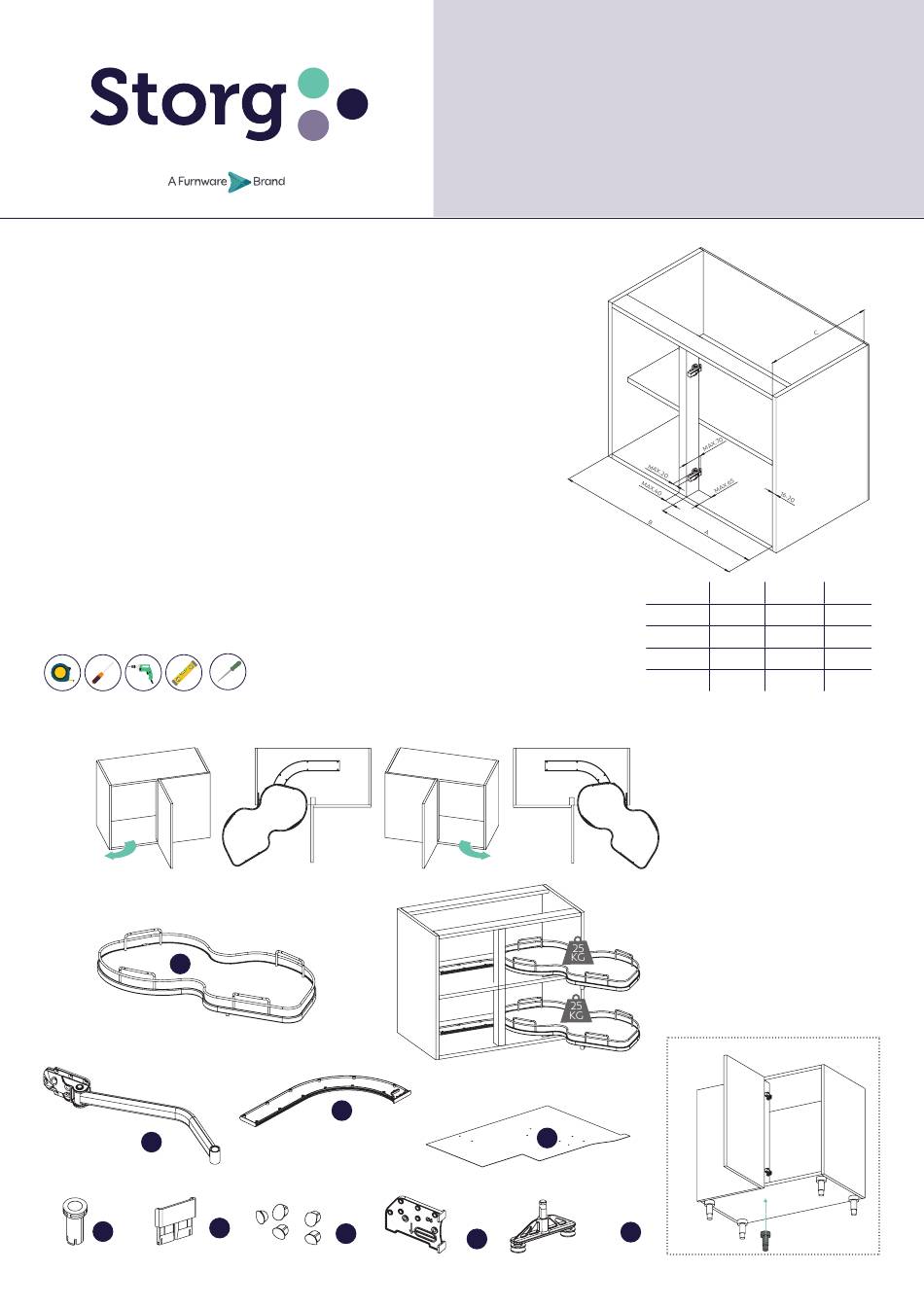

- Page 1 Storg Elska Pull-Out Cloud ST22PCL.2PCP450L.CPWH ST22PCL.2PCP450R.CPWH FEATURES Pull-out shelves for corner cabinet, two melaminated bottom shelves with chromed wire rail. Right and left version. FITTINGS N° 12 6,3x16 mm Euroscrews N° 28 4x25 mm Self tapping screws PARTS A. N°2 Shelves B.
