Do not use powered screw drivers for adjustment.
FITTINGS
12 of 3.9x13 Self tapping screw pan head
8 of 4x16 Self tapping screw countersunk head
4 of M4x5 Special machine screw
2 of M6x10mm Pan head machine screw
2 of M6 Washer

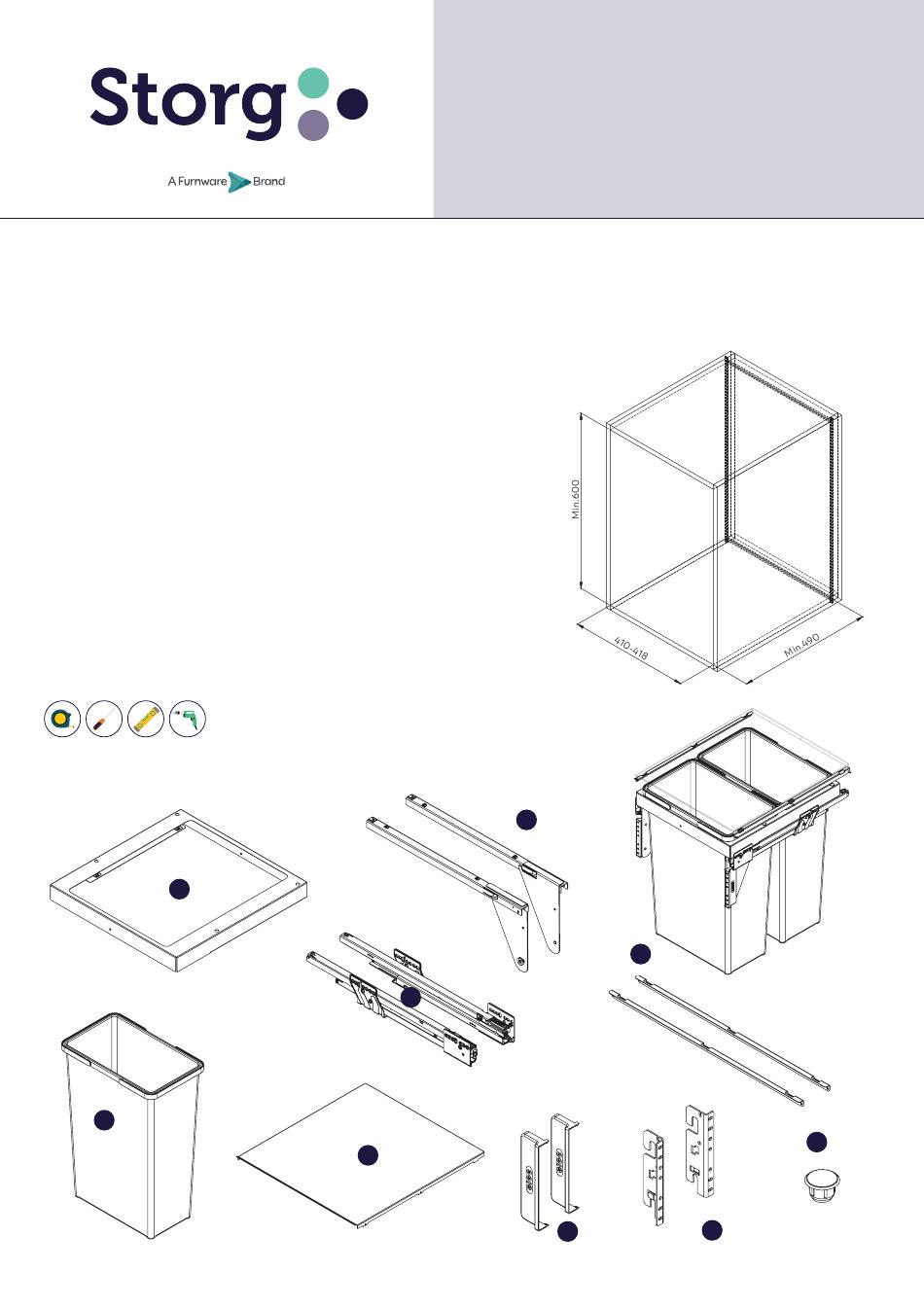

COMPONENTS
A. Metal frame
B. Kit Grass slides (pair)
C. Slide cover
D. Lid holder (Pair)
E. Lid
F. Door fixing brackets
G. Door bracket cover
H. Stopper
I. Wastebin 35L
MAINTENANCE
Clean with a soft, dry cloth. Avoid using solvents or abrasive.
Plastic waste bins can be washed with warm water and mild detergent.
Allow to dry completely before use.
TOOLS
A
I
Storg Safna
56 Series Waste Bin
ST561.450.235.OGY
C
B
E
D
F
G
H
