SJE Rhombus WellZone Installation And Operation Manual

Pressure controller single phase well pump control panel
Hide thumbs Also See for WellZone:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual

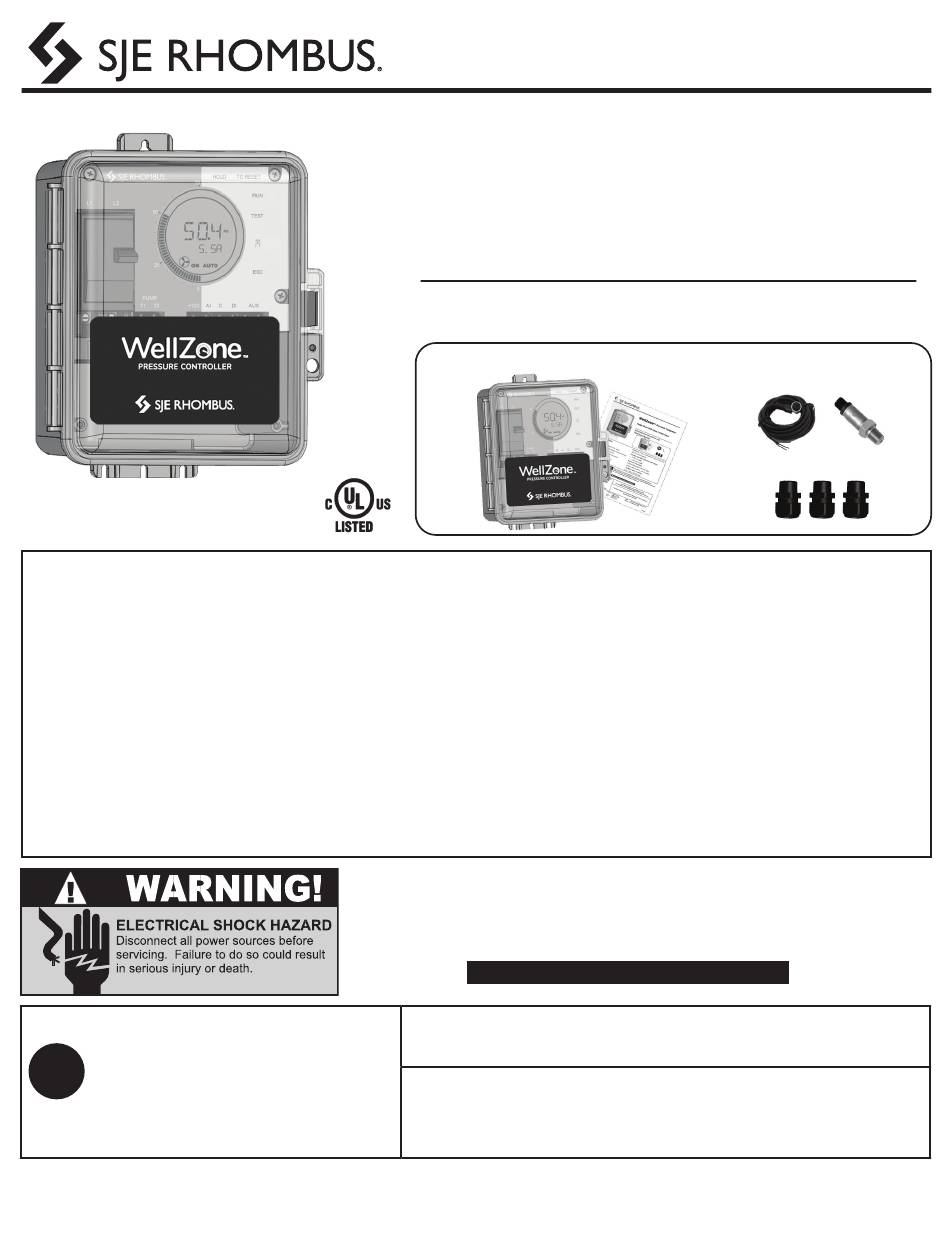

Specifi cations
Input Voltage: 115/230 VAC, 60Hz
Pump Ratings: Single phase, 2-wire (4~14FLA)
•
0.5 HP at 115 VAC, 60Hz
•
0.5 HP -1.5 HP at 230 VAC, 60Hz
Operating Temperature:
14°F to 122°F (-10°Cto 50°C)
For information regarding operation,
?
available options, or servicing
questions, please call SJE Rhombus
Technical Support.
Manufactured by: SJE Rhombus

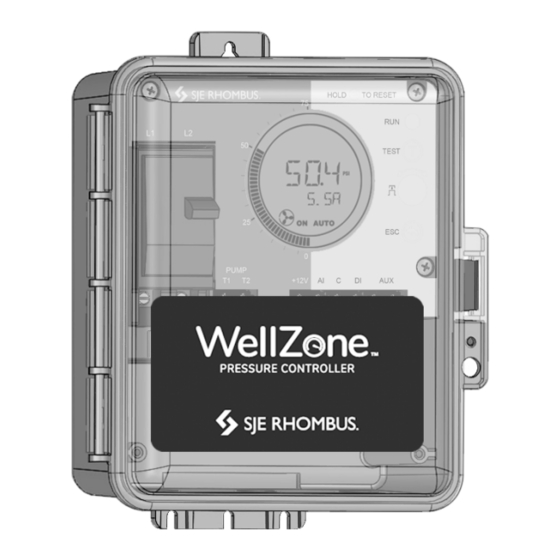

WellZone
Single Phase Well Pump Control Panel
Installation and Operation Manual
This digital controller does not provide Variable Speed Pump Control or constant pressure
operation. This control panel must be installed and serviced by a licensed electrician
in accordance with the National Electric Code NFPA-70, state and local electrical
codes. UL Type 4X enclosures are for indoor or outdoor use.
Products returned must be cleaned, sanitized, or decontaminated as necessary
hazards in handling said material. All applicable laws and regulations shall apply.
Technical Support: +1-800-746-6287
techsupport@sjeinc.com
www.sjerhombus.com
Technical Support Hours: Monday-Friday, 7:00 AM to 6:00 PM Central Time
™
Parts Included
Enclosure: 8 x 6 x 4 inch (20.32 x 15.24 x 10.16 cm)
NEMA 4X thermoplastic
Includes liquid tight cable strain relief fi ttings:
•
2-1/2" UF cable
•
1-1/2" round cable
Pressure Transducer:
0-150 PSI (included) 1/4" NPT Male,
NSF 61 rated, 4-20mA, with 16.4 ft (5m) cable
Auxiliary Alarm Contacts:
N.O. 1 amp, 120 VAC Max
Warranty void if panel is modifi ed.
SJE Rhombus off ers a fi ve-year limited warranty.
For complete terms and conditions, please visit www.sjerhombus.com.
prior to shipment to ensure that employees will not be exposed to health
Pressure Controller
PN 1076888C 09/23
©2023 SJE, Inc. All Rights Reserved.
SJE RHOMBUS is a trademark of SJE, Inc
EN1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WellZone and is the answer not in the manual?

Questions and answers

Related Manuals for SJE Rhombus WellZone

Summary of Contents for SJE Rhombus WellZone

  • Page 1 National Electric Code NFPA-70, state and local electrical codes. UL Type 4X enclosures are for indoor or outdoor use. Warranty void if panel is modifi ed. SJE Rhombus off ers a fi ve-year limited warranty. For information regarding operation, For complete terms and conditions, please visit www.sjerhombus.com.

  • Page 2: Circuit Breaker

    Features The WellZone™ digital controller provides pressure control for single phase 2-wire submersible well pump applications. It uses a 0-150 PSI pressure transducer to monitor the discharge pressure and turns the pump ON and OFF according to the Start and Stop setpoints. The LCD display is visible through the clear cover of the enclosure to allow for quick view of the system pressure, run status, hours run and pump cycles.

  • Page 3: Mounting The Control Panel

    Mounting the Control Panel Drill and fasten top of the enclosure using appropriate anchor. Drill and fasten bottom of the enclosure using appropriate anchors. Technical support, service questions: +1-800-746-6287 techsupport@sjeinc.com Monday - Friday 7:00 AM to 6:00 PM Central Time...

  • Page 4: Wiring The Control Panel

    Wiring the Control Panel CAUTION! Disconnect all power to the control panel before wiring. Ensure that the incoming supply power voltage is the same as the rating of the pump motor being installed. Ensure that the rated Amps of the motor does not exceed the rating of the control panel. Connect the following wires to the proper terminal positions: •...
  • Page 5 Operation Guide Start pressure Save and return Enter pump start to main screen pressure setting Enter Enter Main screen Enter Rotate SEE PARAMETER TABLE BELOW FOR Rotate COMPLETE LIST Rotate Pump run Fault History Enter cycles Select to view last 10 faults Enter Enter...

  • Page 6: Fault Information

    Fault Information Display Pump Reset Description Action LOW PRESSURE ALARM STOPS Hold ESC for 4 sec to Check for leaks, broken pipes. Pressure below the Low Pressure set point for longer PUMP reset or cycle power Check the pump and motor. than the Low Pressure Timer.

  • Page 7: Régulateur De Pression

    La garantie sera annulée en cas de modifi cation du panneau. de blessures graves ou mortelles. SJE Rhombus off re une garantie limitée de cinq ans. Pour toute information sur le Pour en savoir plus au sujet des termes et conditions, visitez fonctionnement, les options www.sjerhombus.com.

  • Page 8: Caractéristiques

    Caractéristiques Le régulateur numérique WellZone™ permet un contrôle de pression pour les applications de pompes de puits submersibles mo- nophasées à 2 fi ls. Il utilise un transmetteur de pression de 0 à 150 PSI pour mesurer la pression de décharge et pour activer la pompe en fonction des points de consigne de départ et d’arrêt.

  • Page 9: Montage Du Panneau De Commande

    Montage du panneau de commande Percez et fi xez la partie supérieure du coff ret à l’aide d’un ancrage approprié. Percez et fi xez le bas du coff ret à l’aide d’ancrages appropriés. Support technique, questions sur l’entretien : +1-800-746-6287 techsupport@sjeinc.com Du lundi au vendredi, de 7h à...
  • Page 10 Câblage du panneau de commande ATTENTION Coupez l’alimentation électrique du panneau de commande avant de procéder au câblage. Veillez à ce que la tension d’alimentation soit la même que celle du moteur de la pompe installée. Assurez-vous que l’ampérage nominale du moteur ne dépasse pas celle du panneau de commande. Branchez les câbles suivants aux bornes appropriées : •...

  • Page 11: Manuel D'utilisation

    Manuel d’utilisation Pression de départ Enregistrer et revenir Entrer le départ de la à l’écran principal pompe réglage de la pression Entrer Entrer Écran principal Entrer Tourner VOIR LE TABLEAU DES PARAMÈTRES CI-DESSOUS Tourner POUR LA LISTE COMPLÈTE Tourner Cycles de Historique des défauts fonctionne- Entrer...
  • Page 12 Informations sur les défauts Affichage Pompe Réinitialisation Description Action Maintenir le bouton ESC LOW PRESSURE ALARM (ALARME DE BASSE PRESSION) STOPS PUMP pendant 4 secondes pour Pression inférieure au point de consigne de basse Vérifier qu’il n’y ait pas de fuites ou de ruptures de (Arrête la réinitialiser ou mettre pression pendant plus longtemps que la minuterie de...

  • Page 13: Especificaciones

    (gabinetes) son clasifi cación UL Tipo 4X para uso interior o exterior. La garantía queda anulada si se modifi ca el panel. en serias lesiones o la muerte. SJE Rhombus ofrece una garantía limitada de cinco años. Para información acerca del Para consultar los términos y condiciones, visite el portal www.sjerhombus.com.

  • Page 14: Pantalla Lcd

    Características El controlador digital WellZone™ proporciona control de la presión en aplicaciones en pozos con bombas sumergibles monofásicas de dos hilos. Utiliza un transductor de presión de 0-150 PSI para monitorizar la presión de descarga y enciende o apaga la bomba (ON/OFF) conforme a los puntos de activación predeterminados para Arrancar (Start) y Detener (Stop) la bomba.

  • Page 15: Soporte Técnico

    Montaje del panel de control Perforar; sujetar la parte superior de la caja (gabinete) utilizando un anclaje apropiado. Perforar; sujetar la parte inferior de la caja utilizando un anclaje apropiado. Soporte técnico, preguntas sobre mantenimiento y reparación: +1-800-746-6287 techsupport@sjeinc.com Lunes a viernes 7:00 A.M.
  • Page 16 Cableado del panel de control PRECAUCIÓN Desconectar toda la alimentación al panel de control antes de efectuar el cableado. Comprobar que el voltaje de alimentación sea igual al voltaje nominal del motor de la bomba que se va a instalar. Comprobar que el amperaje nominal del motor no exceda el valor nominal del panel de control.

  • Page 17: Guía De Uso

    Guía de uso Presión de arranque Guardar y regresar a Ingresar el parámetro la pantalla principal de la presión de arranque de la bomba Intro Intro Pantalla principal Intro Girar LA LISTA COMPLETA ESTÁ EN LA SIGUIENTE Girar TABLA DE PARÁMETROS Girar Ciclos de Histórico de fallos...
  • Page 18 Información de fallos Pantalla Bomba Restablecer Descripción Acción STOPS Pulsar ESC por 4 seg LOW PRESSURE ALARM (Alarma de presión baja) PUMP para restablecer o apagar Presión por debajo del valor predeterminado de Presión Verificar que no haya fugas o tubería rota. (Detiene la y volver a encender la baja con duración mayor que el temporizador de presión...
  • Page 19 NOTES:...
  • Page 20 NOTES: Technical Support: +1 800-746-6287 techsupport@sjerhombus.com www.sjerhombus.com Technical Support Hours: Monday - Friday, 7 A.M. to 6 P.M. Central Time...
