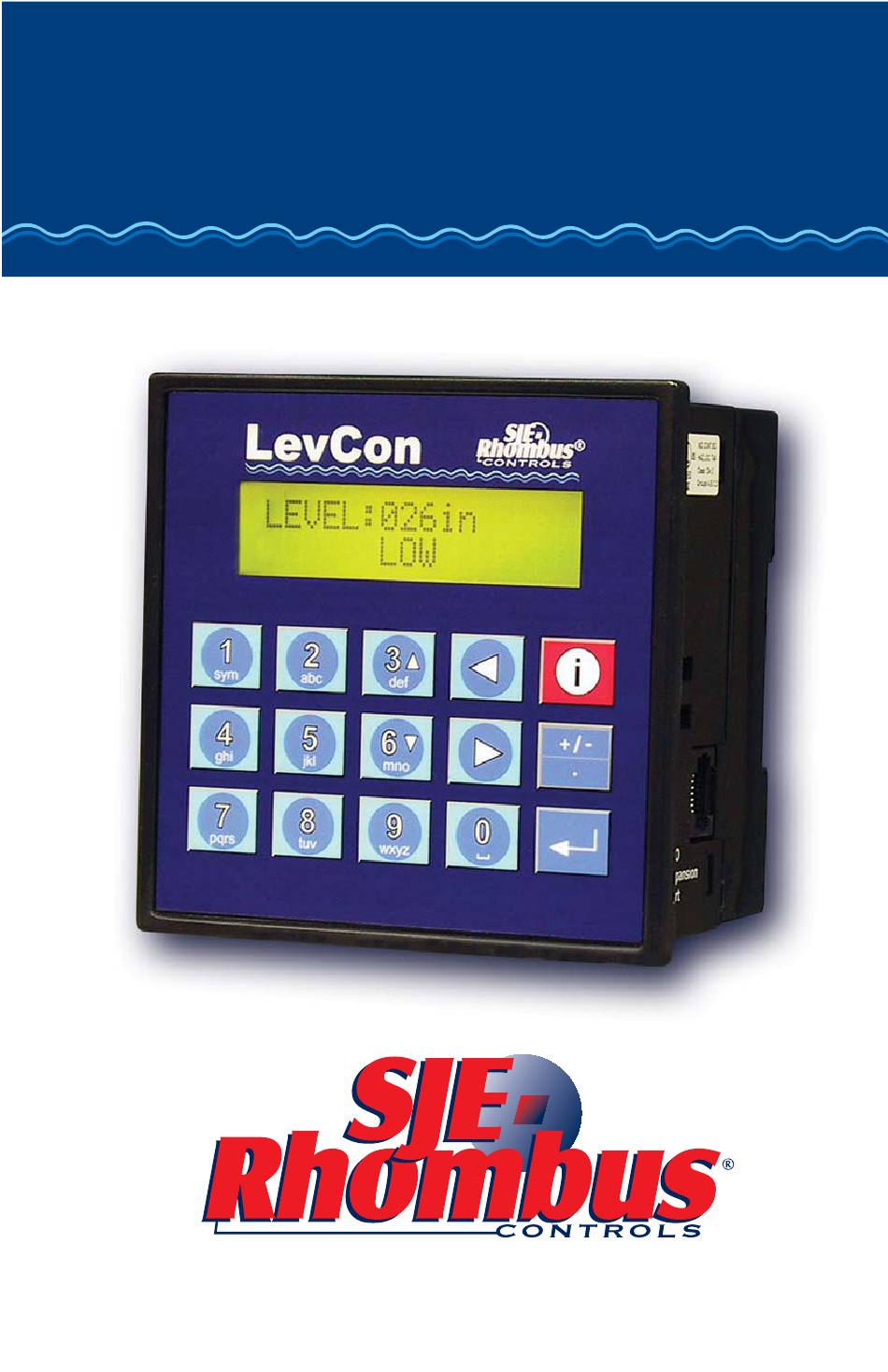

- Page 1 LevCon ™ Liquid Level Indicator / Controller 1-888-DIAL-SJE (1-888-342-5753) www.sjerhombus.com...
- Page 2 The LevCon™ controller has 10 digital input channels, one 4-20mA analog input channel, 6 relay output channels, a keypad for easy navigation, and 2 line by 16 character LCD display for level, pump status monitoring and operation setup.
- Page 3 EXPLOSION OR FIRE HAZARD Do not use this product with flammable liquids. Do not install in hazardous locations as defined by National Electrical Code, ANSI/NFPA 70. SJE-Rhombus Controls LevCon Controller Operation Manual...
- Page 4 LEVCON™ CONTROLLER QUICK START The LevCon™ controller main screen: 050IN P1P2 Current level Pumps 1 & 2 in inches called to run SJE-Rhombus Controls LevCon Controller Operation Manual...
- Page 5 LEVCON™ CONTROLLER NAVIGATION The LevCon™ controller navigation from the main screen: Pg. 6 To alarm and log screens Back to main screen Pg. 7 To manual screen Pg. 8 To communication screen To set up screens TO CHANGE TO CHANGE...
-
Page 6: Log Screens
LOG SCREENS The LevCon™ controller navigation from the main screen: High level transducer TRANSDUCER TRANSDUCER :HIGH :HIGH alarm and low level float < FLOAT FLOAT :LOW :LOW switch alarm Pump 1 & Pump 2 PUMP1 PUMP1 : FAIL FAIL SEAL... -
Page 7: Manual Operation Screen
If you leave the manual screen, all manual operations will automatically return to their automatic mode. After 90 seconds of inactivity (no buttons pressed on the keypad) the controller wll return to the main screen. SJE-Rhombus Controls LevCon Controller Operation Manual... -
Page 8: Communication Screen
COMMUNICATION SCREEN COMM COMM MODEM MODEM DIAL DIAL Modem status screen INITZD INITZD ONLINE ONLINE Back to main screen DIAL DAY/TIME SUN_08 00 08 05 SJE-Rhombus Controls LevCon Controller Operation Manual... -
Page 9: One-Year Limited Warranty
Warranty void if back cover of this product is removed. Call factory with servicing questions: 1-800-RHOMBUS (1-800-746-6287). SJE-Rhombus Controls ® 22650 County Hwy. 6 PO Box 1708 Detroit Lakes, MN 56502 USA 1-888-DIAL-SJE 218-847-1317 Fax 218-847-4617 (1-888-342-5753) www.sjerhombus.com SJE-Rhombus Controls LevCon Controller Operation Manual...
