Moes AM43 Instruction Manual

Enjoy Our Smart Life
Support:
service@moeshouse.com
2.Motor Specifications
Model Input Power
AM43-0.45/ DC charger
40-ES-EB 8.4VDC
3.Motor Illustration
4.Installation
1 Do not exposure it under strong direct sunshine.Keep the
blind engine far away from high temperture or wet place
for using or storing.
Remove the cover plate of driving gear
3 Tighten the cords or chains to driving gear.
Please leave 3-5mm space
between the bottom position
and support bracket during
installation.
4 Blind engine fixing plate installation options
1.3M adhesive 2.Screw fixing

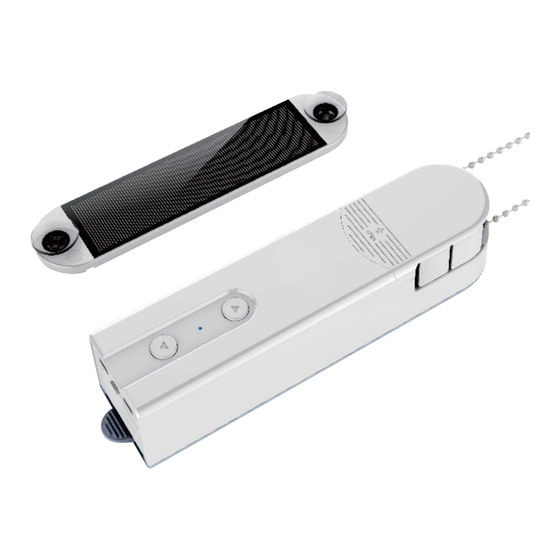

AM43 Blind Drive Motor
Manual Instruction
1.Features
Solar panel Lock-rotor
specs current
12V/0.3W 1.8A
Indicator
UP DOWN
1 Motor can set upper & bottom limit positions and limits can be saved even
when motor power off;
Tow running modes: tilting & continuous moving.Motor default mode is
2
tilting;
Motor can be control by APP on your smart phone;
3
Bluetooth bi-direction technology,you can see the status of your shades in
4
anytime;
Motor speed is adjustable on th APP;
5
Large battery capacity support long time working;
6
7 Powered by charger or solar panel,the solar panel with built in light sensor
for auto-control.
Speed Range Torque
20-40rpm 0.45Nm
Setting button
2 Choose compatible driving gear
Thin cord strings and
small bead chains
Protection
teeth
4 Connect the solar panel or sensor to blind engine;Please pay attention the
wires in case wires wrapping.
Correct installation
Rated Current Battery Capacity
7.4VDC/
1A
1000mAh
Solar & sensor connecting port
Thick cord strings Large bead chains
