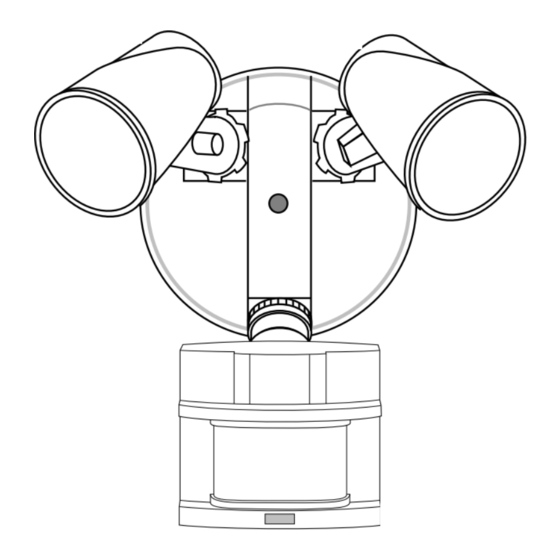

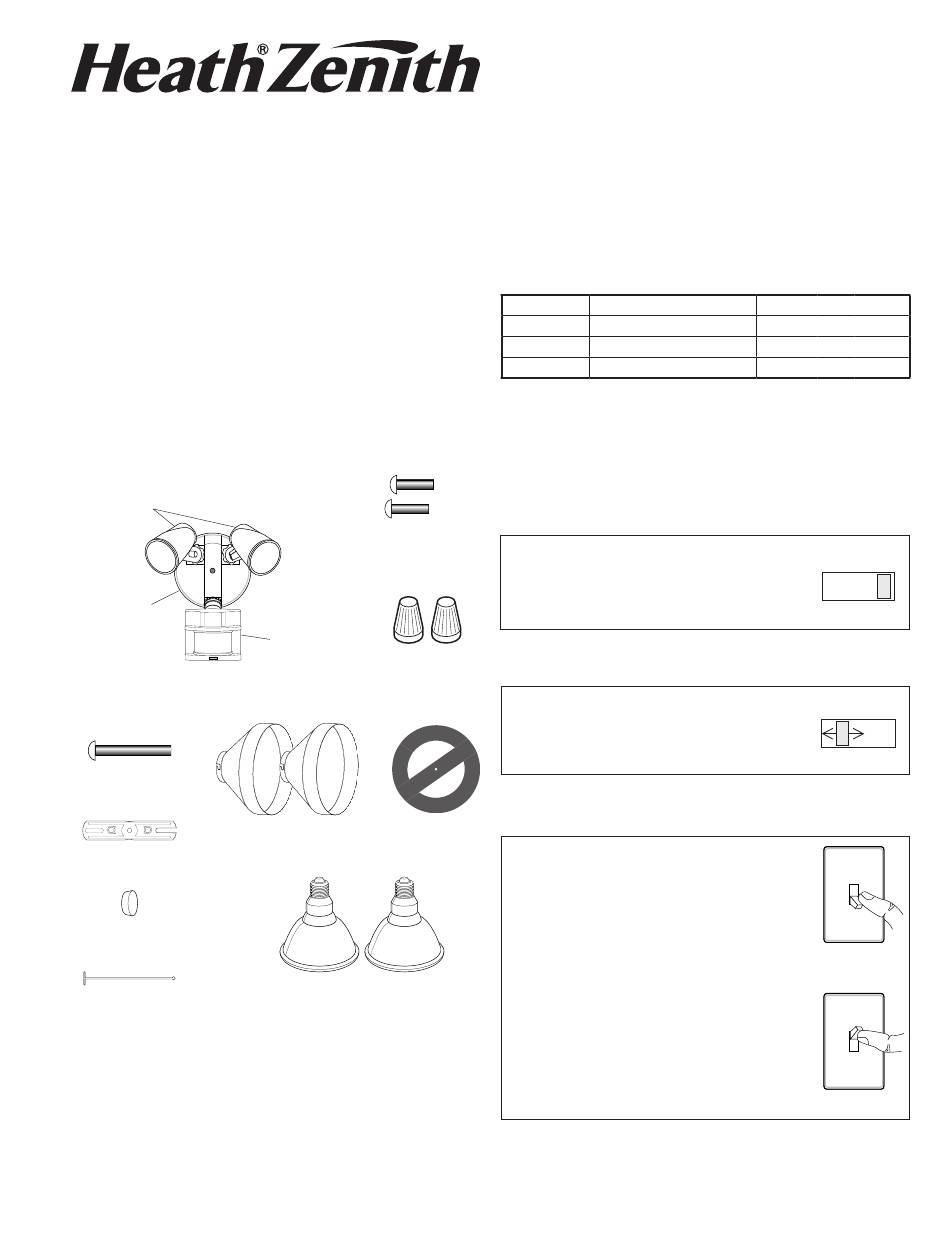

Motion Sensor Light
Control
Model 5412

Features

• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
This package includes:
Bulb
Holders
Cover
Plate
Light Control
Mounting Bolt
Mounting Strap
Rubber Plug
Plastic Hanger
© 2015 HeathCo LLC
6 Screws
(3 sizes included)
Sensor
2 Wire
Connectors
2 Shells
Gasket
2 Flood Lamps
(Not Included with all
Models)

Requirements

• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a
qualified electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.

OPERATION

Mode:
On-Time
Test
5 Seconds
Auto
1, 5, or 10 Minutes
Manual
To Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put the ON-TIME switch on the
bottom of the sensor in the TEST
position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Works: Day Night
x
/
minutes for
1
2
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second
OFF then...
... back on.
x
x
x
