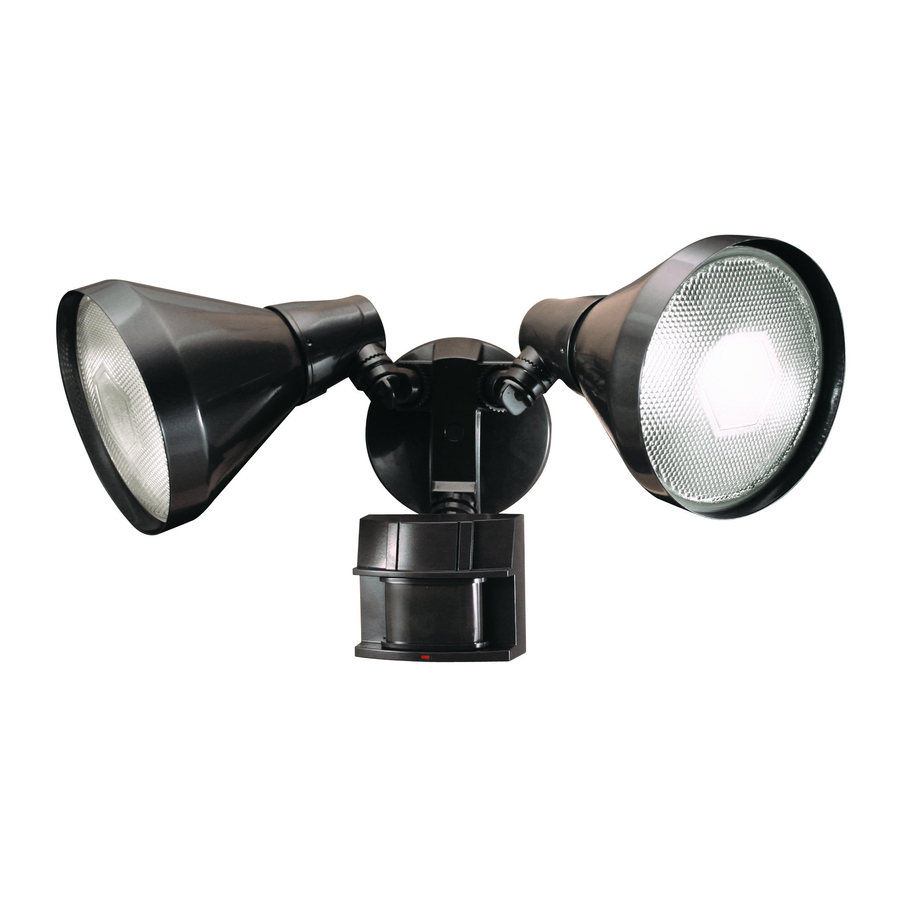

Heath Zenith 5412 - Motion Sensor Light Control Manual

Features

  • Turns on lighting when motion is detected.
  • Automatically turns lighting off.
  • Photocell keeps the lighting off during daylight hours.
  • LED indicates motion was sensed (day or night).

This package includes:
Unpacking

Requirements

  • The light control requires 120-volts AC.
  • If you want to use Manual Mode, the control must be wired through a switch.
  • Some codes require installation by a qualified electrician.
  • This product is intended for use with the enclosed gasket and with a junction box marked for use in wet locations.

OPERATION

Mode: On-Time Works:
Day Night
Test 5 Seconds x x
Auto 1, 5, or 10 Minutes x
Manual To Dawn* x

* resets to Auto Mode at dawn.
Note: When first turned on wait about 1 1/2 minutes for the circuitry to calibrate.

TEST
Put the ON-TIME switch on the bottom of the sensor in the TEST position.

AUTO
Put the ON-TIME switch in the 1, 5, or 10 minute position.

MANUAL MODE
Manual mode only works at night because daylight returns the sensor to AUTO.
Flip the light switch off for one second then back on to toggle between AUTO and MANUAL MODE.

Manual mode works only with the ON-TIME switch in the 1, 5, or 10 position.

Mode Switching Summary
Mode Switching Summary
* If you get confused while switching modes, turn the power off for one minute, then back on. After the calibration time the control will be in the AUTO mode.

INSTALLATION

For easy installation, select an existing light with a wall switch for replacement.
For best performance, mount the fixture about 8 ft. (2.4 m) above the ground. NOTE: If fixture is mounted higher than 8 ft. (2.4 m), aiming the sensor down will reduce coverage distance.
Installation
For under eave installation, the sensor head must be rotated as shown in the next two steps for proper operation and to avoid the risk of electrical shock.
For eave mount only:

  • Swing the sensor head towards the clamp screw joint.
  • Then rotate the sensor head clockwise 180° so the controls face down.

    If the sensor pops out of the ball joint, loosen the clamp screw and push the sensor back into the ball joint. Tighten the clamp screw when done.

Wire the Light Control


Turn power off at circuit breaker or fuse.
Wire the Light Control

  1. Remove the existing light fixture.
  2. Install the mounting strap as shown using two screws that fit your junction box.
  3. The plastic hanger can be used to hold the fixture while wiring. The small end of the plastic hanger can be threaded through the hole in the center of the cover plate. The small end then goes into one of the slots on the mounting strap.
  4. Route the light control's wires through the large gasket holes.
  5. Twist the junction box wires and fixture wires together as shown. Secure with wire connectors.

Mount the Light Control

  1. Align the light control cover plate and cover plate gasket. Secure with the mounting bolt.
  2. Align the three slots in the decorative shell with the bulb holder pins. Push the shell in and then twist clockwise to lock. Repeat for other shell.
    Mount the Light Control - Step 1
  3. Push the rubber plug firmly into place.
  4. If a wet location junction box was not used, caulk the wall plate mounting surface with silicone weather sealant.
    Mount the Light Control - Step 2
  5. Adjust the bulb holders by loosening the lock nuts but do not rotate the bulb holders more than 180° from the factory setting.
  6. Install flood lamps. When screwing in the flood lamps, do not overtighten. NOTE: Compact fluorescent lamps (CFL) must be agency listed and rated for outdoor use.

TEST AND ADJUSTMENT

  1. Turn on the circuit breaker and light switch.
    NOTE: Sensor has a 1 1/2 minute warm up period before it will detect motion. When first turned on, wait 1 1/2 minutes.
  2. Turn the RANGE control to the medium position (halfway between MIN and MAX) and the ON-TIME control to the TEST position.
    Bottom of Sensor
    Avoid aiming the control at:
    • Objects that change temperature rapidly, such as heating vents and air conditioners. These heat sources could cause false triggering.
    • Areas where pets or traffic may trigger the control.
    • Nearby large, light-colored objects reflecting light may trigger the shut-off feature. Do not point other lights at the sensor.
      Coverage
      NOTE: If fixture is mounted higher than 8 ft. (2.4 m), aiming the sensor down will reduce coverage distance. The detector is less sensitive to motion directly towards it.
      Sensitivity
  3. Loosen the clamp screw in the sensor ball joint and gently rotate the sensor.
  4. Walk through the coverage area noting where you are when the lights turn on (also, the LED will flash several times when motion is detected). Move the sensor head up, down, or sideways to change the coverage area. Keep the sensor at least 1" (25 mm) away from the bulbs.
  5. Adjust the RANGE as needed. RANGE set too high may increase false triggering.
  6. Secure the sensor head by tightening the clamp screw. Do not overtighten the screw.
  7. Set the amount of ON-TIME you want the lights to stay on after motion is detected (1, 5, or 10 minutes).
    NOTE: It is recommended to use the 10 minute ON-TIME setting when using CFL bulbs.


Do not leave ON-TIME switch in the TEST position. The frequent ON/OFF cycling of the bulb will reduce its life.

Risk of fire. Do not aim the bulbs at a combustible surface within 3 ft. (1 m).

SPECIFICATIONS

Range Up to 70 ft. (21 m) [varies with surrounding temperature].
Sensing Angle Up to 180°
Electrical Load Up to 300 Watt Maximum Tungsten [Up to 150 Watt maximum each bulb holder.]
Up to 60 Watt Maximum self ballasted CFL [Up to 30 Watt maximum each bulb holder.]
Power Requirements 120 VAC, 60 Hz
Operating Modes TEST, AUTO, and MANUAL MODE
Time Delay 1, 5, 10 minutes
Range Adjustable

HeathCo LLC reserves the right to discontinue products and to change specifications at any time without incurring any obligation to incorporate new features in products previously sold.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. this device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B)

TROUBLESHOOTING GUIDE

SYMPTOM POSSIBLE CAUSE SOLUTION
Lights will not come on.
  1. Light switch is turned off.
  2. Flood lamp is loose or burned out.
  3. Fuse is blown or circuit breaker is turned off.
  4. Daylight turn-off is in effect.
  5. Incorrect circuit wiring, if this is a new installation.
  6. Light control aimed in wrong direction.
  1. Turn light switch on.
  2. Check flood lamp and replace if burned out.
  3. Replace fuse or turn circuit breaker on.
  4. Recheck after dark.
  5. Verify wiring is correct.
  6. Re-aim light control to cover desired area.
Lights come on in daylight.
  1. Light control may be installed in a relatively dark location.
  2. Light control is in TEST.
  1. The fixture is operating normally under these conditions.
  2. Set control switch to 1, 5, or 10 minutes.
Lights come on for no apparent reason.
  1. Light control may be sensing small animals or automobile traffic.
  2. Range is set too high.
  1. Re-aim light control.
  2. Reduce range.
Lights turn off too late in Dusk-to-Dawn setting. Light control may be installed in a relatively dark location. Relocate light control, or use 3 hour or 6 hour setting.
Lights stay on continuously.
  1. A flood lamp is positioned too close to the light control or pointed at nearby objects that cause heat to trigger the light control.
  2. The light control may be picking up a heat source like an air vent, dryer vent, or brightly painted, heat reflective surface.
  3. Light control is in manual mode.
  1. Reposition the flood lamp away from the light control or nearby objects.
  2. Reduce range.
  3. Switch light control to AUTO.
Lights flash on and off.
  1. Heat or light from the flood lamps may be turning the light control on and off.
  2. Heat being reflected from other objects may be turning the light control on and off.
  3. Light control is in the TEST mode and warming up.
  4. Light may be leaking through the flood lamp reflectors.
  1. Reposition the flood lamp away from the light control.
  2. Reposition light control.
  3. Flashing is normal under these conditions.
  4. Replace the flood lamps with new high quality PAR 38 lamps. (Make sure the metal lamp protectors are installed).
Lights flash once, then stay off in manual mode. Light control is detecting its own lights. Reposition flood lamps to keep area below the light control relatively dark.

TECHNICAL SERVICE

Please call 1-800-858-8501 (English speaking only) for assistance before returning product to store.
If you experience a problem, follow this guide. You may also want to visit our Web site at: www.hzsupport.com. If the problem persists, call* for assistance at 1-800-858-8501 (English speaking only), 8:00 AM to 5:00 PM CST (M-F). You may also write* to:
HeathCo LLC, P.O. Box 90045
Bowling Green, KY 42102-9045
ATTN: Technical Service
* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of Purchase.
No Service Parts Available for this Product
Please keep your dated sales receipt, it is required for all warranty requests.

TWO YEAR LIMITED WARRANTY
This is a "Limited Warranty" which gives you specific legal rights. You may also have other rights which vary from state to state or province to province.
For a period of two years from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs, batteries, and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges.
This warranty covers only HeathCo LLC assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Please keep your dated sales receipt, it is required for all warranty requests.
