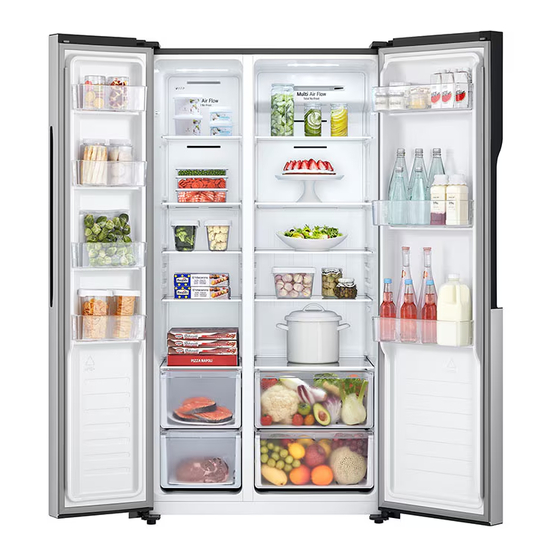

LG RVS-B200LS Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
FRIDGE & FREEZER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
Rev.00_072922
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG RVS-B200LS

Summary of Contents for LG RVS-B200LS

  • Page 1 Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH www.lg.com Rev.00_072922 Copyright © 2022 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased. This manual is subject to revision by the manufacturer. SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE............3 WARNING ......................3 CAUTION ......................8 INSTALLATION Before Installation ...................11 Removing the Fridge and Freezer Door............12 Levelling and Door Alignment................13...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 4 SAFETY INSTRUCTIONS responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments;...
  • Page 5 • Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material. • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
  • Page 6 • Ensure that the outlet socket is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.
  • Page 7 • Do not bend the power cable excessively or place a heavy object on it. • Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.

  • Page 8: Caution

    SAFETY INSTRUCTIONS • Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury. • Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation. •...
  • Page 9 • Make sure not to get a hand or foot stuck upon opening or closing the appliance door or door in door. Maintenance • This appliance is equipped with maintenance-free LED interior light. Do not remove cover or LED lamp in any attempt to repair or change it. Contact an LG Electronics customer information centre.
  • Page 10 They may shatter if exposed to sudden temperature changes. • Do not insert the shelves upside down. The shelves may fall. • To remove frost from the appliance, contact an LG Electronics customer information centre. • Dispose of the ice inside the ice bin in the freezer compartment...

  • Page 11: Installation

    INSTALLATION INSTALLATION Before Installation Ambient Temperature • The appliance is designed to operate within a Dimensions and Clearances limited range of ambient temperatures, depending on the climate zone. Too small of a distance from adjacent items may result in the degradation of freezing capability and •...

  • Page 12: Removing The Fridge And Freezer Door

    INSTALLATION Removing the Fridge and recommended that two or more people carry out the door removal and refitting. Freezer Door If your entrance door is too narrow for the appliance to pass through, remove the appliance Lift the freezer door until it is free of the doors and pass the appliance laterally.

  • Page 13: Levelling And Door Alignment

    INSTALLATION Refitting the Fridge and Freezer do not close easily, adjust the appliance’s tilt using the instructions below. Door Use the spanner to adjust the height by turning the levelling leg to the left to raise it or to the right Refit the doors in the reverse sequence of their to lower it.

  • Page 14: Turning On The Power

    INSTALLATION Turning on the Power Door Alignment for Freezer and Fridge Door Connecting the Appliance If the door of the appliance is not level, adjust the difference in the height of appliance door. After installing the appliance, connect the power plug into the outlet socket.

  • Page 15: Operation

    NOTE specifications. If you wish to minimise the impact • Contact the LG Electronics customer information on the food storage due to a temperature rise, centre if the alarm sound continues even after seal or wrap the stored food in several layers.
  • Page 16 OPERATION to reduce the quantity to be frozen if freezing NOTE every day is anticipated. • Place the refrigerated food or frozen food in • The max freezing capacity of your appliance is each fridge or freezer compartment stated on the rating label inside the fridge immediately after purchasing.

  • Page 17: Product Features

    OPERATION Product Features The appearance or components of the appliance may differ from model to model. Exterior *1 This feature is only available on some models. Door in Door This is a convenient storage area for frequently-used items that require easy access. Door in Door Lever Opens Door-in-Door.
  • Page 18 OPERATION Interior *1 This feature is only available on some models. Door in Door Model: InstaView Door in Door Model: LED Lamp The LED lamps inside the appliance light up when you open the door.
  • Page 19 OPERATION Temperature Sensor This sensor senses the temperature of the fridge compartment. • Maintain the distance between the sensor and food to accurately sense the temperature. Freezer Shelf Stores frozen food such as meat, fish, and ice cream. • To freeze food items quickly, store the food on the left side of the top shelf. If you need to store more food, store it on the shelves in order starting from the top shelf.
  • Page 20 OPERATION This is the bottom drawer cover. CAUTION • Do not store any items at the front of the bottom shelf. The items may fall and cause an injury or appliance damage. Air Filter Reduces odours inside the fridge compartment.

  • Page 21: Control Panel

    OPERATION Control Panel The actual control panel may differ from model to model. Control Panel and Functions *1 This feature is only available on some models. Fridge Press this button repeatedly to select a desired temperature between 2 ℃ and 8 ℃. •...

  • Page 22: Instaview

    OPERATION - When the function is activated, the temperature of the freezer is automatically switched to -24 ℃. - The function automatically shuts off after 52 hours and reverts back to the previous setting. • Artificial Intelligence ( ): When the function is selected, the temperature of the appliance is automatically adjusted.

  • Page 23: Door In Door

    OPERATION The LED light turns off automatically after ten There is plenty of storage space inside the door in seconds. door and its surrounding baskets, allowing you to store food in an organized manner. CAUTION • Do not open the door of the appliance with the door in door open, or do not open the door in door while the door of the appliance is open.

  • Page 24: Shelf

    OPERATION Shelf • If moved to the right side, the air guide will be closed and will maintain any humidity that is currently in the crisper drawer. CAUTION • Glass shelves are heavy. Use special care when removing them. • Do not clean glass shelves with warm water while they are cold.

  • Page 25: Icemaker

    OPERATION Icemaker Fill the ice tray with potable water up to the water line. Before Using the Icemaker WARNING • Fill with potable water only into icemaker or dispenser water tank. Place the ice tray back to its position carefully. NOTE •...

  • Page 26: Door Basket

    OPERATION NOTE • You can remove the icemaker or ice storage bin to create more space inside the freezer if you do not use it. Door Basket Removing/Refitting the Door Basket Hold both edges of the basket and remove it by lifting it upward.

  • Page 27: Maintenance Cleaning

    MAINTENANCE MAINTENANCE Cleaning Cleaning the Interior • When removing a shelf or drawer from inside General Cleaning Tips the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to • Performing manual defrosting, maintenance or the appliance.

  • Page 28: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service Cooling Symptoms Possible Cause & Solution There is no Is there a power interruption? refrigeration or • Check the power of other appliances. freezing. Check the power of other appliances. • Plug the power plug in the outlet properly. A fuse in your home may be blown or the circuit breaker tripped.
  • Page 29 TROUBLESHOOTING Symptoms Possible Cause & Solution The appliance contains Did you put in food with a strong smell? a bad smell. • Store foods with strong smells in sealed containers. Vegetables or fruit may have spoiled in the drawer. • Throw away rotten vegetables and clean the vegetable drawer. Do not store vegetables too long in the vegetable drawer.
  • Page 30 The inside lamp in the Lamp failure appliance does not • Close the door and re-open. If the lamp does not turn on, please contact turn on. the LG Electronics customer information centre. Do not attempt removal of the lamp.
  • Page 31 TROUBLESHOOTING Noises Symptoms Possible Cause & Solution The appliance is noisy Is the appliance installed on a weak floor or improperly levelled? and generates • Install the appliance on a solid and flat area. abnormal sounds. Does the rear of the appliance touch the wall? •...
  • Page 32 TROUBLESHOOTING Symptoms Possible Cause & Solution Vibrating If the side or back of the appliance is touching a cabinet or wall, some of the normal vibrations may make an audible sound. • To eliminate the noise, make sure that the sides and back do not make any contact with any wall or cabinet.
  • Page 33 Memo...
  • Page 34 Memo...
  • Page 35 Memo...
