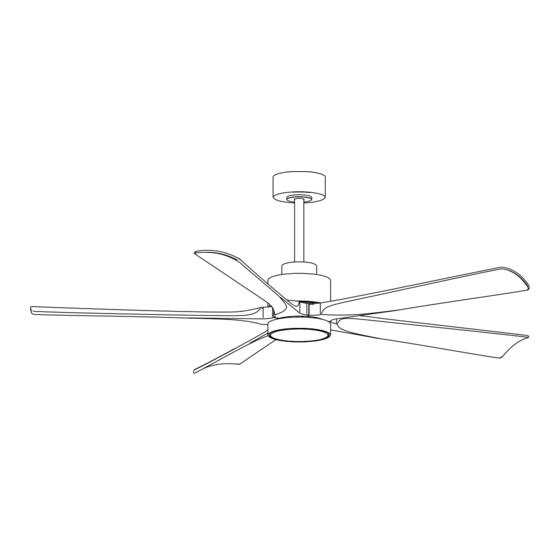

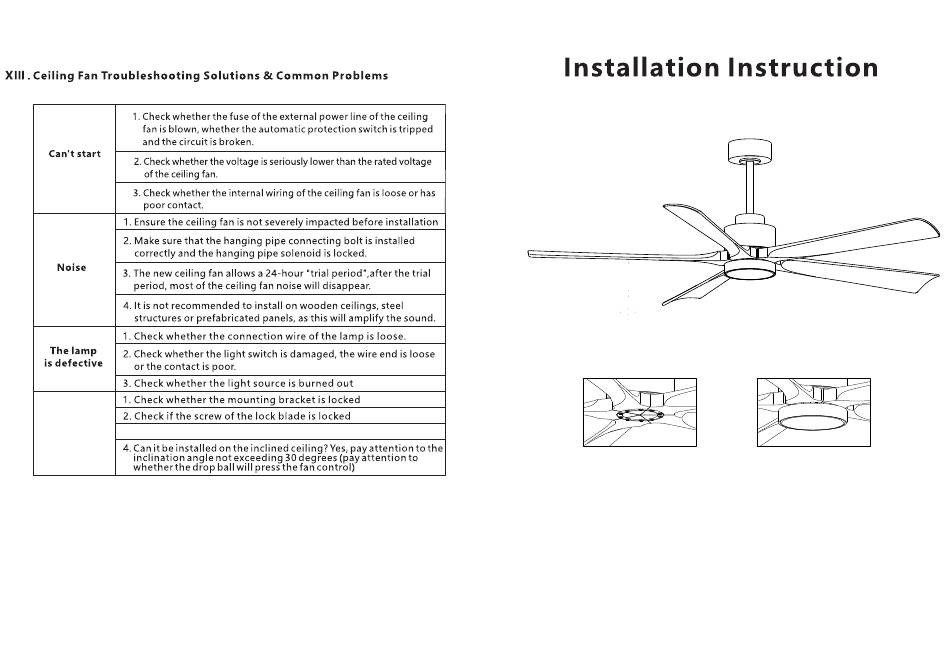

- Page 1 Fan wobble 3. Check whether the screw of the blade retracted to the motor is locked WITHOUTLIGHTKIT WITHLIGHTKIT WBCF-BS88~BS95 PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Ⅰ、Precautions
Ⅲ、Basic parameters 1 Voltage: 120V/60Hz 2 Power: Motor power: 30W LED power: 24W 3 Speed + Color change: 6 speed+3 color temperatures(Cool white light 6500K+ Thanks for your purchase! warm light 3000K+ neutral light 4500K) Should you have any questions or concerns, please do not hesitate to 4 Number of rotating leaves: 5 blades contact us by mail address 5 Fan blade material: Solid Wood... - Page 3 1. Select the downrod a. There are two downrods of 4.5inch and 12inch in the package, customers can choose according to the height of the house. b. The normal default is to install on the 4.5inch downrod. c. How to replace the 12 inch Downrod: Notice: Make sure the fan blades at least 7 feet above the floor 2.
- Page 4 2. Plug the 2 light kit wires into LED module power socket. (Figure 13) 3. Install the lamp shade to the lamp plate in place properly. Then turn it clockwise, Make sure the lamp shade tightening.(Figure 14) Set Screw Decorative cover Coupling Coupling...
- Page 5 Balance piece 1. Connect the live wire from ceiling to receiver black wire(AC IN L). 2. Connect the neutral wire from ceiling to receiver white wire(AC IN N) 3. Connect the Grey wire(Motor U) from motor to Grey wire(Motor U) from receiver.
