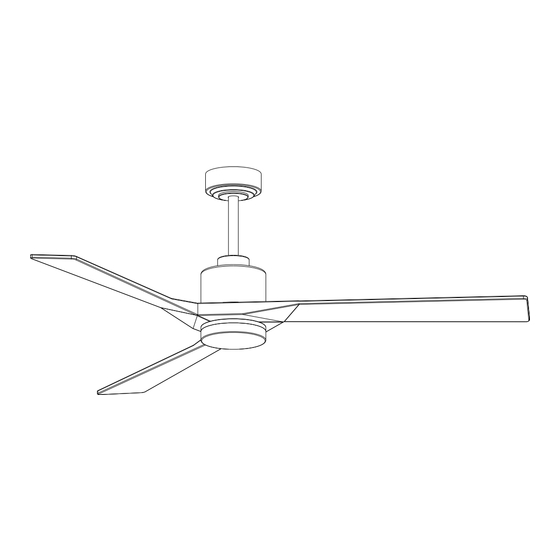

WINGBO WBCF-BS13-BS15 Series Installation Instructions

WINGBO WBCF-BS13-BS15 Series Installation Instructions

Advertisement

Quick Links

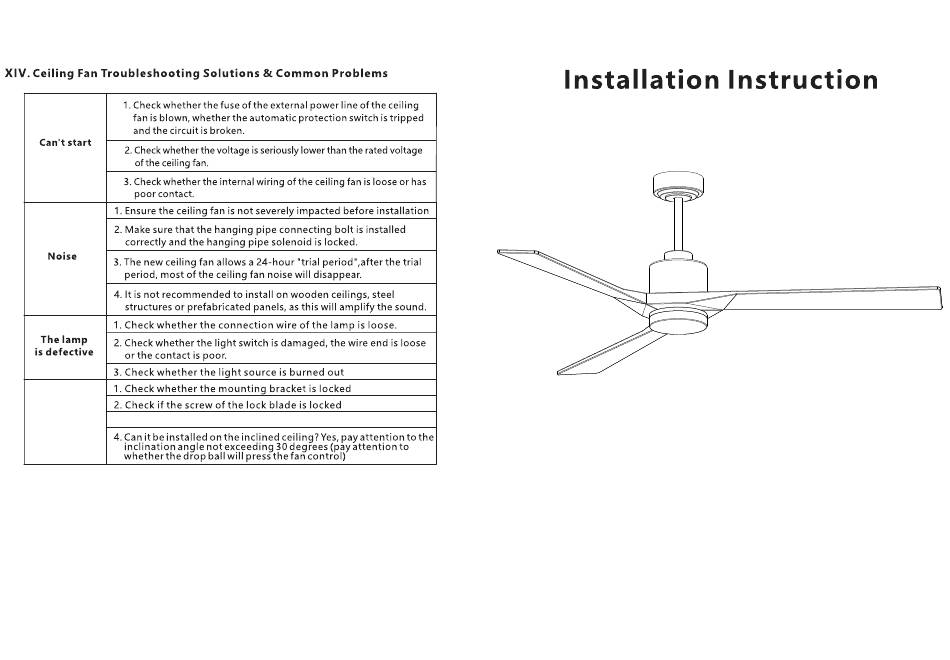

Fan wobble
3. Check whether the screw of the blade retracted to the motor is locked
WBCF-BS13-BS15 Series
WBCF-BS22-BS24 Series
PLEASE READ AND SAVE THESE INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the WBCF-BS13-BS15 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for WINGBO WBCF-BS13-BS15 Series

  • Page 1 Fan wobble 3. Check whether the screw of the blade retracted to the motor is locked WBCF-BS13-BS15 Series WBCF-BS22-BS24 Series PLEASE READ AND SAVE THESE INSTRUCTIONS...
  • Page 2 Ⅲ、Basic parameters 1 Voltage: 120V/60Hz 2 Power: Motor power: 52inch-35W/64inch-40W LED power: 24W 3 Speed + Color change: 6speed+3 color temperatures(Cool white light 6500K+ Thanks for your purchase! warm light 3000K+ neutral light 4500K) Should you have any questions or concerns, please do not hesitate to contact 4 Number of rotating leaves: 3 blades us by mail address 5 Fan blade material: Solid Wood...
  • Page 3 2. Concrete ceiling: First use an ∅8mm hammer drill bit to drill the hole according to the length of the expansion screw, then use the equipped expansion screws (2 Pieces) to fix the bracket on the ceiling, and then tighten the nut of the expansion screw. 4.5"...
  • Page 4 1. Take out the blade screws and washers in the hardware bag (as shown in Figure 10 ) 2. Align the blade screw hole with the motor blade plate hole, and tighten the screws in turn (Figure 11) screws and washers to fix the blade Note: The solid wood fan blades have a certain squeezing space.
  • Page 5 4. Connect the red wire(Motor V) from motor to red wire(Motor V) from receiver. 2. Adjust with balance kit. 5. Connect the yellow (Motor W) from motor to yellow wire (Motor W) from A. Take out the balance bag from the package box, use a balance clamp to select receiver.
