Rielta SH-V Installation Manual

VIBRATION SECURITY
Installation Guide

1 General Information

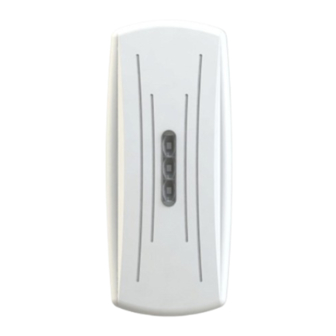

Vibration security detector «SH-V» (hereinafter, the Detector) is
designed to detect intentional destruction of building constructions such
as concrete walls and ceilings of thickness not less than 0.12 m, brick
walls with the thickness not less than 0.15 m, wood constructions with
material thickness from 20 to 40 mm, constructions made of chip wood
boards with material thickness not less than 4 mm, wood chip board
constructions with material thickness not less than 15 mm, standard
metal safes, cabinets, ATMs with following alarm message generation
by the relay contacts opening. The unit also provides immunity to
electromagnetic interference, acoustic noises and to single blows
delivered to protected construction.
The Detector generates an alarm message by the relay contacts
opening for the time not less than 2 s, followed by LED indication (See
Table 1).
Table 1
Name Description
«Norm» Standby mode
«Alarm - Destructive impact on the secured
Destruction» construction
«Power supply
Drop of supply voltage below 8 V
malfunction»
«Case tamper/ Detector case tampering or its pullout
pullout» of the secured construction
The Detector self-testing after
«Switching ON»
energizing
Presence of vibration on the secured
«Vibration» 2)
construction
Latched alarm: «Alarm-Destruction»
«Memory» 3) or «Power supply malfunction»
message
LED indication of impact group I
«ТЕSТ 1» 4)
testing mode
LED indication of impact group II
«ТЕSТ 2» 4)
testing mode
LED indication of impact group III
«ТЕSТ 3» 4)
testing mode
«O» – contact is opened; «C» – contact is closed; «X» – has no effect;
«Off» – LED is disabled;
« » – LED is in operation;
«oo» – intermittent infrequent LED blinking (twice per second);
«ooo» – intermittent frequent LED blinking (five blinks per second);
– indicators operate when switch IND is in ON position;
1)
– indication «Vibration» operates in case of interference or destructive impact on the
2)
secured construction in standby mode (TEST DIP-switch in OFF position) or under the
only impact of testee tools group (TEST DIP-switch in ON position);
3) – LED indication operates until the Detector is de-energized;
4) – Testing mode management is fulfilled by consequent setting TEST DIP-switch to ON
position and backward (recovery from testing mode).

2 Specifications

Table 2
Parameter
Detection area, not less than:
- continuous concrete, brick or wood construction;
- metal cabinet, door, ATM upper cabinet;
- safe, ATM lower cabinet
Nominal voltage supply
Power supply, DС
Current consumption, not more than
Permissible current through output contacts
Permissible voltage at output contacts
Operating temperature
Relative air humidity (at a temperature +25 °С), not more than
IP rating
Dimensions, not more than
Weight, not more than
Average service life
DETECTOR
«SH-V»
Contacts LED Indicators
Messages
C X Off
O X
O X oo
X O X
LED Indication
O X
C X X
C X
X X X
X X X
X X X
minus 30 ...+ 50 °С
105х45х34 mm

3 The Detector Design

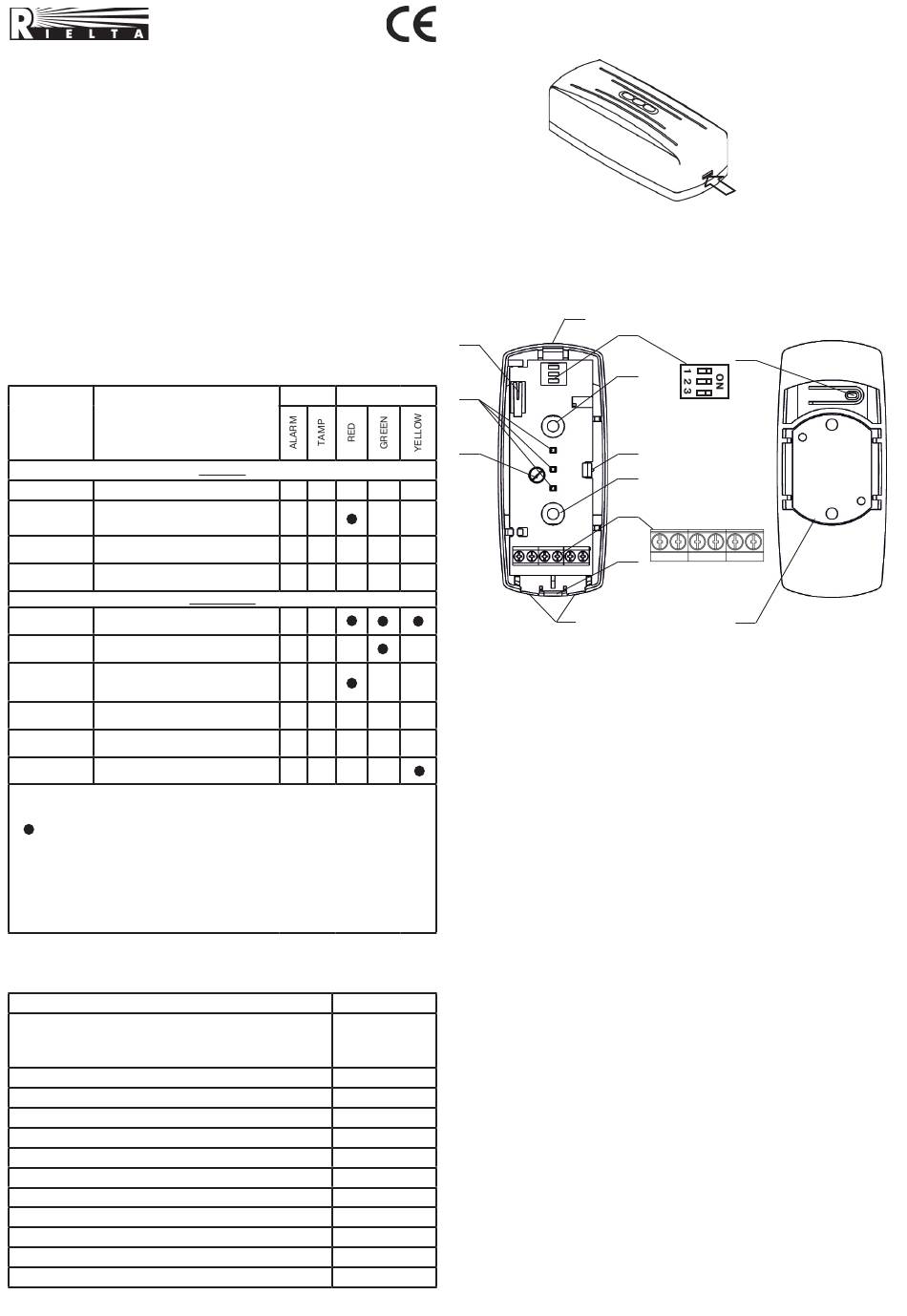

The Detector layout is shown in Figure 1.
The base with the PCB is shown in Figure 2.
a) top view (without cover)
10
9
1)
8
Off Off
X X
X X
X X
1 – hook on the cover;
X
2 – DIP switches;
3 – holes for fixing the Detector
X X
to the construction;
4 – PCB latch;
5 – terminal blocks;
X oo
6 – cover latch;
X ooo
X

4 The Detector Mounting

The Detector mounting and sensitivity adjustment are fulfilled with the
removed cover. In order to remove cover, loosen the latch by pressing
it through the rectangular opening in the cover (Figure 1).
Depending on type and material of secured construction, the Detector
is fastened either by screws through the base openings (see Figure 2,
position 3) (the distance between the openings is 35 mm) or by means
of superglue. It is very important to ensure firm contact with the surface
of the protected construction.
For the Detector mounting on brick or concrete constructions, it
should be used anchors (supplied). The depth of the openings for fixing
the Detector shall be sufficient to ensure full length deepening anchors
in main material of the protected construction, without including the
thickness of the finishing and (or) decorative coating. For the Detector
mounting on wood construction, it is permissible to use screw nails (self
Value
tappers) anchoring them in the main material of the secured construction
to a depth of at least 20 mm.
12 m
2
For the Detector mounting on metal construction, it is recommended
6 m 2
to use screw connection with nuts (М4) via openings or screw (M4)
3 m 2
connection through closed holes with preliminary cut thread. In these
12 V
conditions it is recommended to ground the metal construction with
9...17 V
mounted Detector.
The Detector installation inside safes including lower ATM cabinet
25 mA
should be fulfilled by means of M4 screws or superglue in accordance with
30 mA
instructions for use of superglue given in its supporting documentation
72 V
or on the package. The glue joint is also recommended for others metal
constructions without possibility to fulfill a screw connection.
90 %

5 Connection

The Detector connection to terminal device (TD) of data transmission
IP41
system (DTS) or to control panel (CP) should be fulfilled in accordance
with connection pattern contained in exploitation documents for DTS
0,2 kg
TD or CP as per the Detector terminal blocks marking (see Figure 2,
position 5). Two openable holes (see Figure 2, position 7) for wiring are
8 years
provided in the Detector case.
Press
Figure 1
1
2
11
3
TEST
MEM
IND
4
3
5
6
+12V- ALARM TAMP
7 12
7 – openable holes for wiring;
8 – sensitivity controller;
9 – indicators;
10 – tamper;
11 – wall tamper pin;
12 – sensing element.
Figire 2 – Base with the PCB
b) bottom view
