Rielta SH-VT Installation Manual

ATM SECURITY VIBRATION
AND TILT DETECTOR
Installation Guide
1 General Information

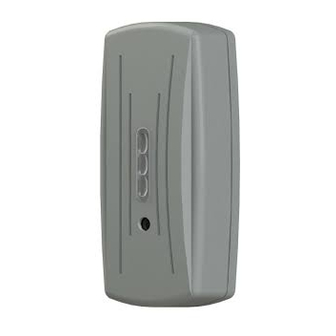

1.1 ATM security vibration and tilt detector «SH-VT» (hereinafter, the Detector)
is designed to detect intrusion, burglary and (or) theft attempts to units such
as ATMs, safes and other banking means of protection as well as to detect the
intentional destruction of building constructions with generation of the alarm
message by opening the relay contacts.
1.2 The Detector power supply is provided by a DC power source with a nominal
output voltage of 12 V DC.
1.3 The Detector comprises:
- two detection channels:
1) channel for break-in detection (hereinafter, channel 1), which is designed
to detect the intentional destruction of the protected construction or the safe
(ATM) break-in;
2) channel for detection of protected construction tilt changing for 5° or more
(hereinafter, the channel 2), designed to detect the unauthorized movement of
safe (ATM) or other separately installed protected construction;
- automatic choosing the algorithm of the microprocessor operation depending
on the type of destructive impact, ensuring high detection integrity and functional
reliability of the Detector;
- possibility of discrete sensitivity adjustment (detection range) of channel 1;
- LED indication of the Detector status and interference vibrations of the
secured construction;
- possibility of the LED indication modes management depending on the security
tactics chosen for the object (choosing modes of short-term LED indication or
LED indication up to forced reset);
- possibility of the LED indication disabling;
- voltage control;
- control of mechanical contact with the secured construction;
- case tamper control.
1.4 The Detector generates the following messages:
- «Destruction» – by opening VIBR contacts;
- «Tilt» – by opening TILT contacts;
- «Supply voltage alarm» – by opening VIBR and TILT contacts;
- «Case tamper/Wall tamper» – by opening TAMР contacts;
- Operating temperature from – minus 30 up to +50 °С.
1.5 The Detector is designed for continuous, around-the-clock operation.
1.6 The Detector is resistant to electromagnetic interference, single blows
delivered to the protected construction.
1.7 The Detector provides possibility of operation mode choice depending
on the material of the protected construction as well as possibility of sensitivity
step adjustment.
1.8 The Detector generates alarm messages by output contacts opening for
the time not less than 2 s and ensures LED status indication (see Table 1).
Table 1
Message Description
Normal Standby mode
Tool attack on the
Vibration alarm
construction
Destructive impact on the
Destruction
secured construction
Changing of the secured
Tilt alarm construction tilt for 5 о
or more
Supply voltage Supply voltage drop below
alarm 8 V
Case tamper /
Case or wall tampering
Wall tamper
LED INDICATION
Switching on Self test after energizing
Vibration of the secured
Noise vibration
construction
Constant LED indication -
Memory -
destruction**)
«Destruction»
Constant LED indication -
Memory – Tilt
alarm **)
«TILT»
Indication Memory –
Memory – Voltage
supply alarm**)
«Voltage supply«
O – open; C – closed;
о – indicator OFF; – indicator ON;
– LED flashing (once per second);
– LED flashing (five times per second);
X – has no effect;
) – Indicators operate when jumper IND – ON;
1
**) – LED MEM is lighting until supply voltage will be OFF or until DIP-switch MEM will be OFF.
«SH-VT»
Contacts Indicators
MESSEGES
C C X о
O X X
O X X
X O X
O O X
X X O X
O O X
X X X X
X X X X
X X X X
X X X X
2 Technical Specifications
Table 2
Detection Area, m
- continuous concrete, brick or wooden surface
- steel Cases, Vault Doors, ATM Upper cabinet
- safes, ATM low cabinet
Minimum detectable tilt of secured construction, deg
Overall dimensions, mm, not more than
Operating voltage, V
Consumption current, mA, max
Warm-up time of the Detector, s, not more than
Operating Temperatures, °C
Maximum Humidity (25°C), %
Permissible carry current, mA
Permissible output voltage, V
IP rating
Weight of the Detector, g, max
Mean time to failure in standby mode, not less than
Average service life, years
The probability of a failure leading to a false alarm of the Detector in standby
mode is not more than 0.01 per 1000 hours, which corresponds to the probability
of the absence of the specified failure of not less than 0.99 per 1000 hours. The
criterion of failure is generation of «Destruction» and/or «Tilt» messages in the
absence of impacts on the guarded structure and in the absence of a change in
the angle of inclination of the guarded structure.
The Detector provides immunity (does not generate «Destruction» and (or)
«Tilt» messages under the following conditions:
a) upon mechanical blow delivery on the secured construction with energy of
(1.9 ± 0.1) J, speed of (3.12 ± 0.12) m/s for the distance (0.25 ± 0.05) m from
the Detector
b)upon the secured construction tilt changing for not more than 1°.
3 Inside View
The Detector layout is shown in Figure 1.
The base with the PCB is shown in Figure 2.
a) Top View (without cover)
)
1
10
9
о о
X X
X X
X X
X X
X X
1 – Hook on the cover;
2 – DIP Switch;
3 – Mounting Holes;
4 – Jumper IND;
X
5 – PCB Latch;
6 – Terminal Block Wiring;
X
X 4 Scope of Delivery
Each Detector unit package contains the items listed in Table 3.
X
Table 3
ATM security vibration and tilt detector «SH-VT»
Screw А.М4-6gх40
Ring plate 4.65Г.029
ATM security vibration and tilt detector «SH-VT». Installation Guide
Serial interface module «US-PI»
* – supplied optionally
Parameter
2 , not less than:
Figure 1 – Detector
1
2
3
MEM
4
S1
S2
S3
М1
IND
М2
5
3
6
7
8
7 – Cover Latch;
8 – Mount Knockouts;
9 – Indicators;
10 – Case tamper;
11 – Wall tamper;
12 – Sensing element.
Figure 2 – The base with the PCB
Name
Value
12
6
3
5
105 x 45 x 34
9 ... 17
25
10
minus 30 ... + 50
90
100
42
IP41
150
60000
8
Press
b) Bottom View
11
12
QNT
1 pc.
2 pcs.
2 pcs.
1 copy
*
