449 Heads Road, Whanganui 4501
0800 4 BULLBARS or (06) 344 4100
Email:
info@aliarc.co.nz
Website:
www.aliarc.co.nz

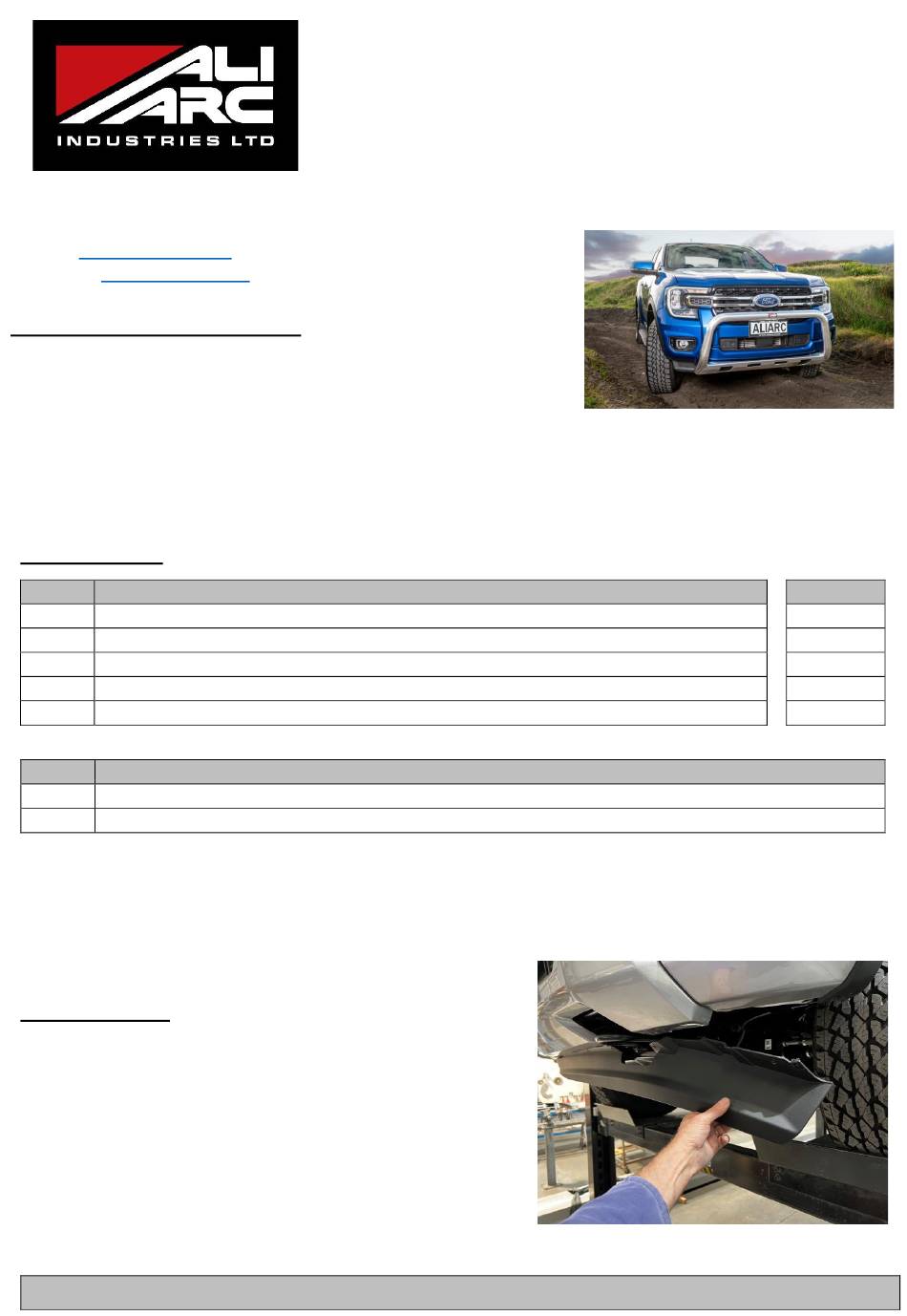

FITTING INSTRUCTION SHEET
Make:
22+ Next-Gen Ford Ranger
Models:
XLT 2/4WD & Sport 4WD Double Cab
Random activation of forward parking sensors may not be a direct result of the fitment of this product
and may be attributed to other external factors, as described in Ford Owner's Manual
COMPONENTS
Qty
4
M10 x 35 Standard Thread 8.8 Bolt
8
M10 Heavy Duty Flat Washer
4
M10 Spring Washer
4
M10 Nut
2
P029 (4mm Rubber Washer)
Qty
1
Nudge Bar c/w Centre Skirt
1
NBF827 Steel Mount Set (1 x driver side & 1 x passenger side)
Fitting this product involves numerous steps. It is important that each step is followed sequentially,
and each step completed accurately. We recommend reading the entire instructions prior to
installing this product
INSTRUCTIONS
1. Remove the plastic skirt
Remove 10 x screws (use a 8mm socket)
Note: Eight screws have a 5mm thread &
two have a 6mm thread
For technical assistance please phone 0800 4 BULLBARS
Product:
Fitting Kit
Product
F827
Part №:
NUDGE BAR c/w
Centre Skirt
Fitting kit packed by: ..............................
Fitting kit checked & initialled above
Checklist
1
Advertisement
Table of Contents
Related Manuals for ALI ARC F827
Summary of Contents for ALI ARC F827
- Page 1 F827 Part №: NUDGE BAR c/w Product: Centre Skirt Fitting kit packed by: ………………………… 449 Heads Road, Whanganui 4501 0800 4 BULLBARS or (06) 344 4100 Email: info@aliarc.co.nz Website: www.aliarc.co.nz FITTING INSTRUCTION SHEET Make: 22+ Next-Gen Ford Ranger Models: XLT 2/4WD & Sport 4WD Double Cab Random activation of forward parking sensors may not be a direct result of the fitment of this product and may be attributed to other external factors, as described in Ford Owner’s Manual...
- Page 2 2. Remove the sump guard Remove 4 x bolts (use a 15mm socket) Note: The back bolts do not need to be fully removed XLT & Sport Model 3. Install the passenger-side, nudge bar mounting bracket a) Remove the M6 bolt that secures the intercooler plastic shroud (use a 8mm socket) b) Remove the rear tow hook mounting bolt (use a 15mm socket)
- Page 3 d) Remove the rubber mount from bottom of intercooler e) Slide the 4mm spacer (P029) onto the intercooler, then refit the rubber mount f) Ensure intercooler top mount is in its top hole, swing the tow hook back into its original position. Slide the passenger nudge bar mounting bracket into position (mount is sandwiched between the chassis and the tow hook).
- Page 4 4. Install the driver-side, nudge bar mounting bracket XLT Model (1 x Tow Hook, 1 x Mount) Same process as passenger side Sport Model (2 x Tow Hooks) Same process as passenger side 5. Fit nudge bar to mount plates a) Lift nudge bar into position, align nudge bar mounting holes with holes in steel mounting brackets.
- Page 5 Passenger side cut-out for XLT & Sport Driver side cut-out for XLT (Note: Sport driver side is the same as passenger side) d) Re-fit the plastic skirt using the two M6 screws and the eight M5 screws, the M6 screws hold the bumper to the chassis and are located 2 from outside Note: Torque setting for M5 screws = 5Nm...
