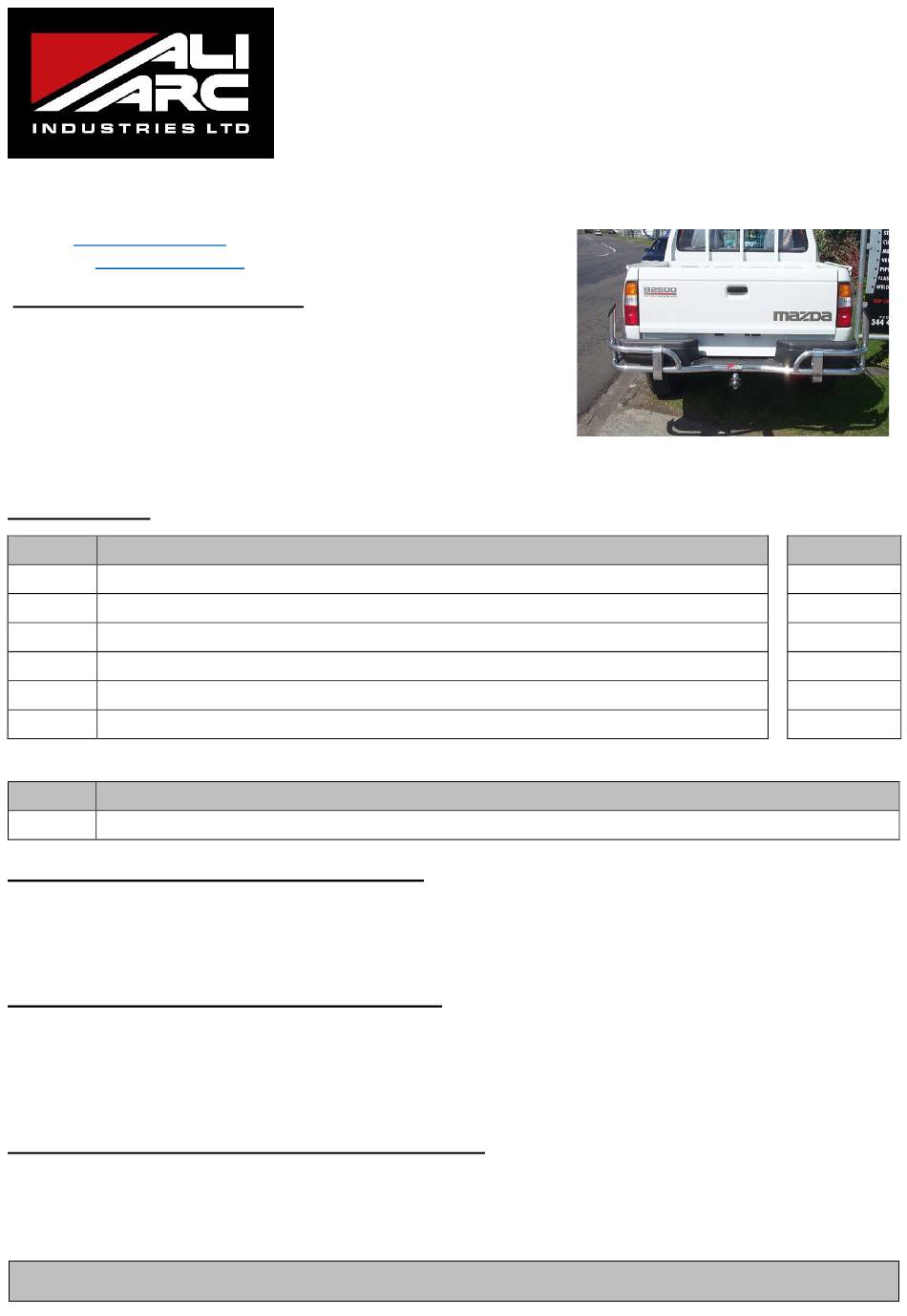

ALI ARC F556 Fitting Instruction

449 Heads Road, Wanganui 4501
0800 4 BULLBARS or (06) 344 4100
Email: info@aliarc.co.nz
Website: www.aliarc.co.nz
FITTING INSTRUCTION SHEET
Make: Ford/Mazda
Model: Ranger/BT-50 2/4WD D/Cab Rear Guard
2007 – 2011
Year:
Specs: Fits Vehicle with Bumper &
MZ2900084, 02265RE & MZ290090
Towbars

COMPONENTS

Qty
4 M12 x 40 Bolt
4 M10 x 35 Bolt
4 M10 Flat Washer
4 M10 Spring Washer
4
M10 Nut
4 AC116 Alloy Spacer (5mm Plate 95 x 25 c/w 2 x 12 hole)
Qty
1 F556 Rear Guard

INSTRUCTIONS (MZ 2900084 Best Bars Towbar)

1. Vice grip bumper irons to towbar and remove bolts,
2. Slide rear unit over the outside of towbar and bumper irons,
3. Refit M12 x 50 bolts, replace M12 x 35 bolts with M12 x 40 bolts (supplied) and fit,
4. Remove vice grips, align rear unit and tighten bolts.

INSTRUCTIONS (02265RE Hayman Reese Towbar)

1. Slide rear unit over towbar,(alloy strapping fits up against bottom of towbar, allow 10mm of clearance
between plastic bumper and the inside of strapping on rear unit.
2. Mark hole positions through the 10mm holes.
3. Remove the alloy unit and drill the 4 x 10mm holes through the towbar.
4. Refit alloy unit using the alloy spacers and the 4 x M10 x 35 bolts supplied.

INSTRUCTIONS (MZ2900090 Towbar Factory Towbar)

1. Remove bolts that attach side plates to Towbar (2 bolts each side)
2. Slide Alloy rear unit into position, fit 4 alloy spacers (2 each side) & the 4 x M12 x 40
(tighten to correct torque)
For technical assistance please phone 0800 4 BULLBARS
Product:
Fitting Kit
Product
F556
Part №:
REAR GUARD
Fitting kit packed by: ..............................
Fitting kit checked & initialled above
Page 1 of 2
Checklist
bolts supplied
