449 Heads Road, Whanganui 4501
0800 4 BULLBARS or (06) 344 4100
Email:
info@aliarc.co.nz
Website:
www.aliarc.co.nz

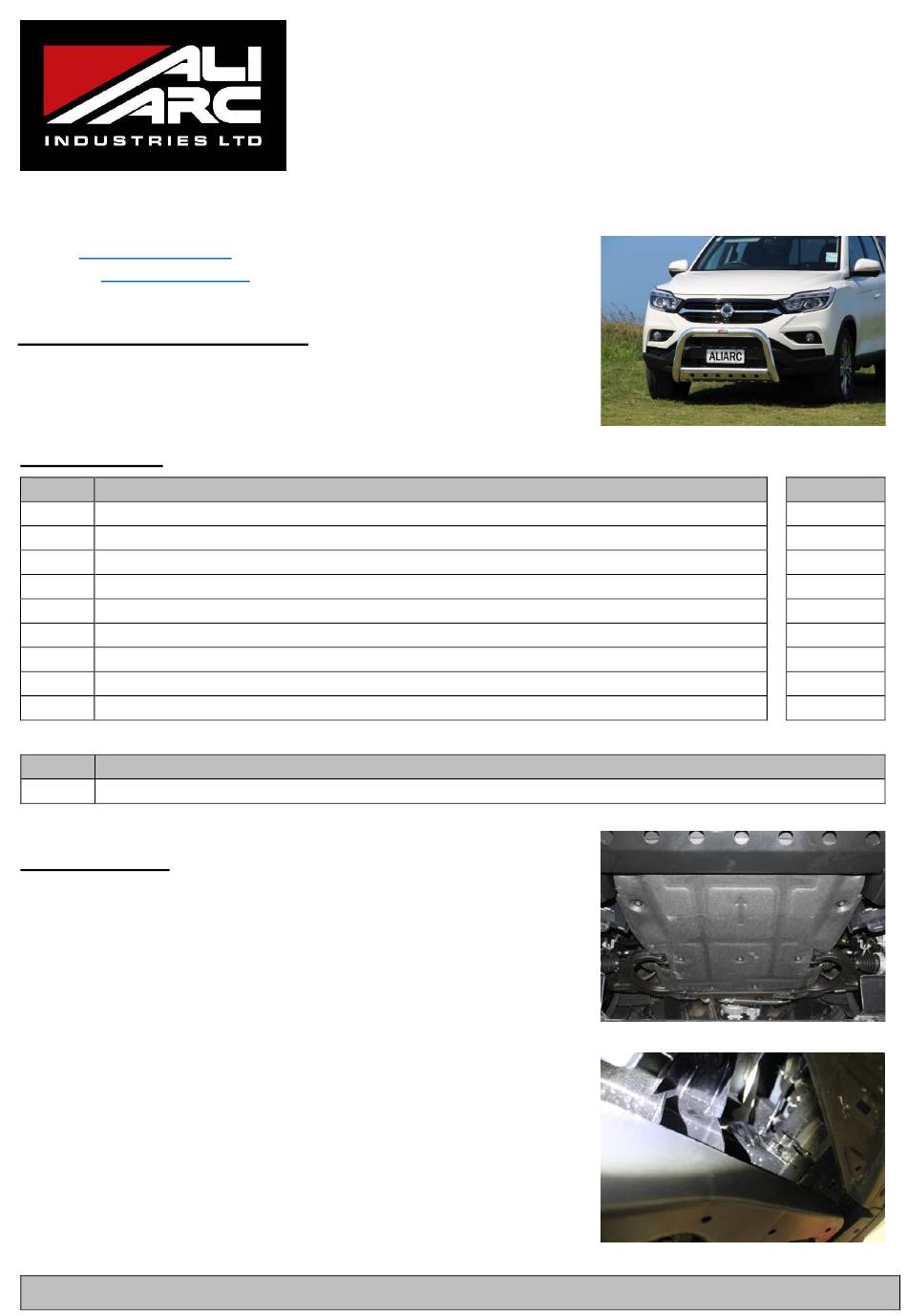

FITTING INSTRUCTION SHEET
Make:
Ssangyong
Model:
2018+ Rhino 2/4WD D/Cab
COMPONENTS
Qty
2
M12 x 35 Bolt
4
M12 Flat Washer
2
M12 Spring Washer
2
M12 Nut
2
M10 x 90 Bolt
4
M10 Flat Washer
2
M10 Spring Washer
2
M10 Nut
2
PK040 Square Washer (40 x 40 x 5 c/w 12.5 hole)
Qty
1
Nudge Bar c/w Belly Pan
INSTRUCTIONS
1. Remove centre splash guard (9 x bolts).
2. Remove the bottom bolt on the front cross member.
For technical assistance please phone 0800 4 BULLBARS
Product:
Fitting Kit
Product
S803
Part №:
76mm NUDGE BAR
c/w BELLY PAN
Fitting kit packed by: ..............................
Fitting kit checked & initialled above
Checklist
1
Advertisement
Table of Contents
Related Manuals for ALI ARC S803
Summary of Contents for ALI ARC S803
- Page 1 S803 Part №: 76mm NUDGE BAR Product: c/w BELLY PAN Fitting kit packed by: ………………………… 449 Heads Road, Whanganui 4501 0800 4 BULLBARS or (06) 344 4100 Email: info@aliarc.co.nz Website: www.aliarc.co.nz FITTING INSTRUCTION SHEET Make: Ssangyong Model: 2018+ Rhino 2/4WD D/Cab...
- Page 2 3. Loosely fit nudge bar using supplied M10 x 95 bolts in the top hole. Fit M12 x 35 bolt through rear hole using supplied square washer. 4. Align and tighten all bolts. 5. Trim 35mm x 155mm off each side of the splash guard and refit.
