X462UN Installation Guide
46" LCD Display

Control Codes

Function
POWER
ON
OFF
INPUT SWITCH
VGA (15pin HD)
RGBHV
DVI
HDMI__________
VIDEO (Composite)
DVD/HD
S-Video
TV (Analog)
TV (Digital)
Option
DisplayPort
AUDIO MUTE
ON
OFF
PICTURE MODE
sRGB
HIBRIGHT
STANDARD
CINEMA
SCREEN MODE:
NORMAL
FULL
WIDE
ZOOM
AUTO SETUP
EXECUTE
FILM MODE
OFF
AUTO
NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.

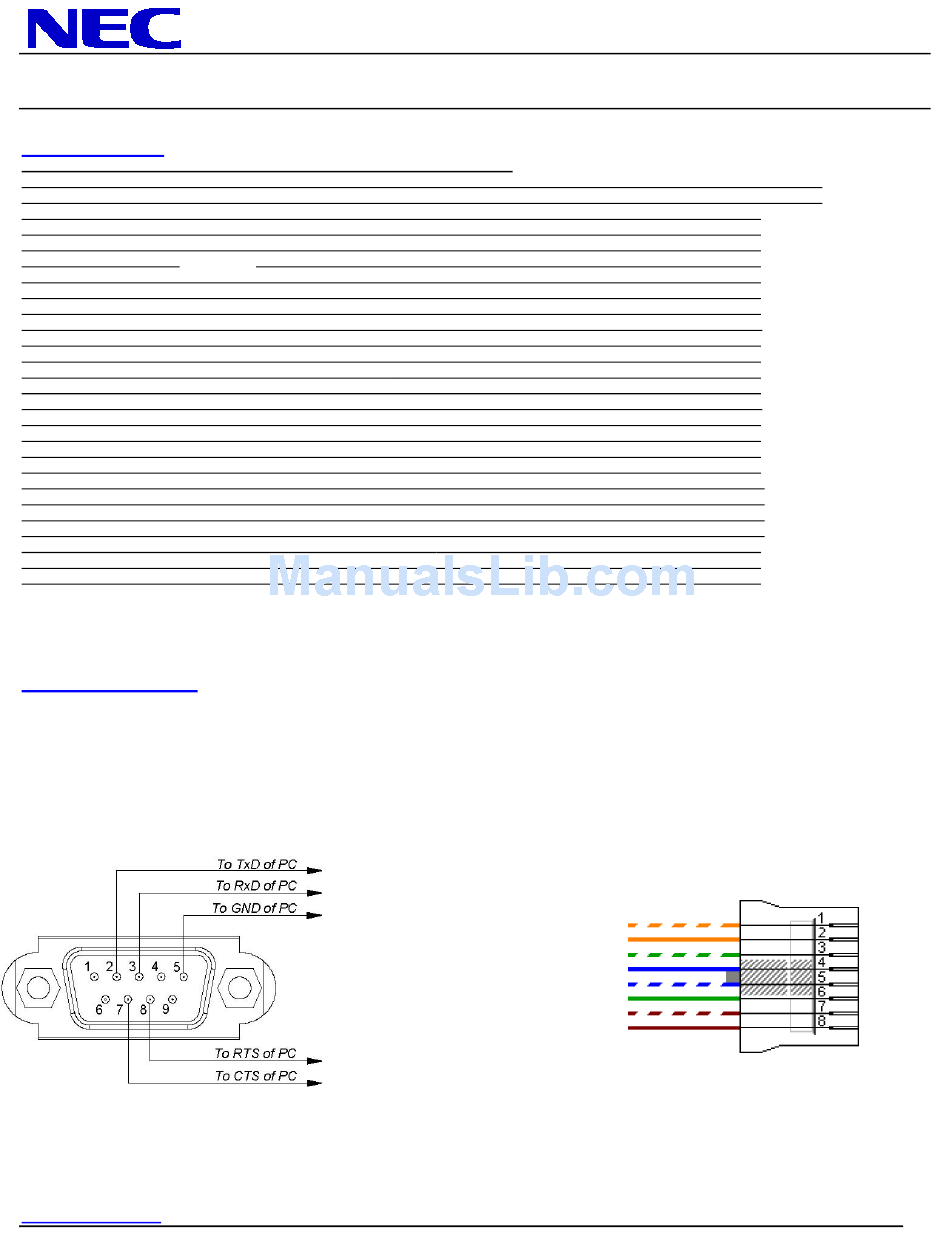

Cable Connection
Communication Protocol:
Interface:
RS-232C
Communication: Asynchronous
Baud Rate:
9600 bps
Data Length:
8 bits
Parity:
None
Stop Bit: 1 bit
Communication Code: Hex
PC Control Connector (D-Sub 9P)
NOTE:
If so desired, jumper "Request to send" and "Clear to Send" together on both ends of the cable to simplify cable connection. These
connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).
www.necdisplay.com
NEC Display Solutions of America, Inc.
Code Data
01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D
01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 34 03 76 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 39 03 7B 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 41 03 03 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 44 03 06 0D
01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 46 03 04 0D
01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D
01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D
01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D
01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D
01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D
01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D
01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D
01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D
01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D
01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D
01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D
01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 31 03 77 0D
01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 32 03 74 0D
LAN
Communication speed: Auto setting (10/100Mbps)
Certified standard: IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX, Auto-Negotiation)
Transmit Data+
Transmit Data-
Receive Data+
Not Used
Not Used
Receive Data-
Not Used
Not Used
X462UN
Rev 1.0
Page 10 of 10
