Pioneer AVH-110BT - DVD RDS AV Receiver Quick Start Guide

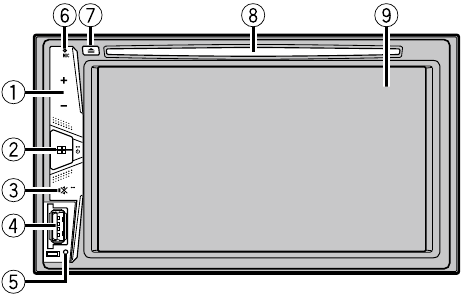

What's What and RESET Button Location

The screen shown in the examples may differ from actual screens, which may be changed without notice for performance and function improvements.

RESET Button Location

  1. VOL (+/–) button
  2. (HOME) button
    Press to display the top menu screen.
    Press and hold to power off.
  3. (MUTE) button
    Press and hold to display off.
  4. USB port
  5. RESET button
  6. Microphone
    The Bluetooth microphone is built in the grill of the product.
    Speak toward the microphone when you make a call.
  7. (EJECT) button
  8. Disc-loading slot
  9. LCD screen

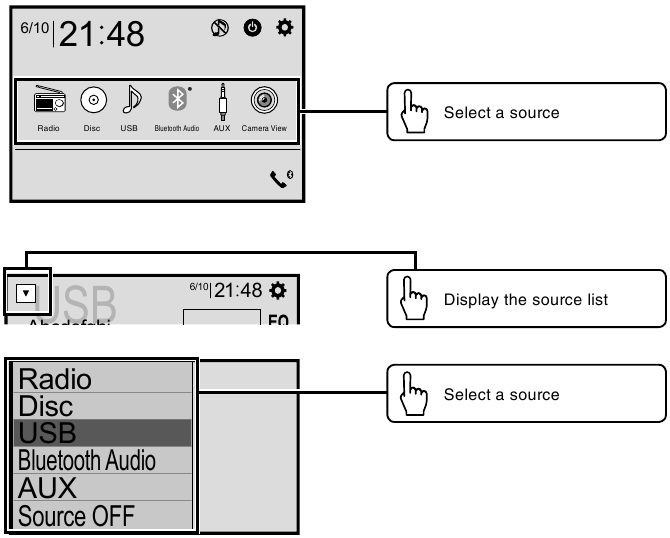

Selecting the source

Selecting the source

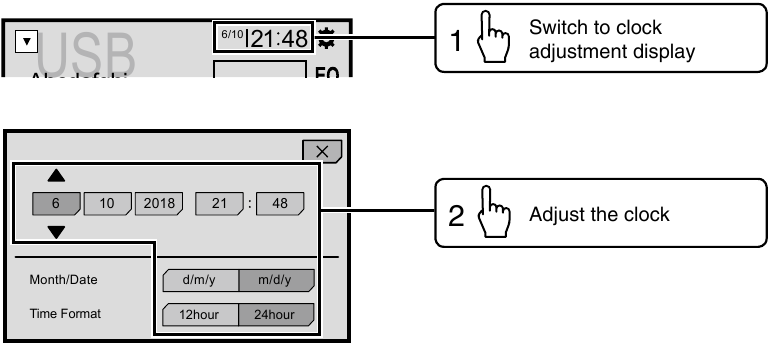

Setting the clock

Setting the clock

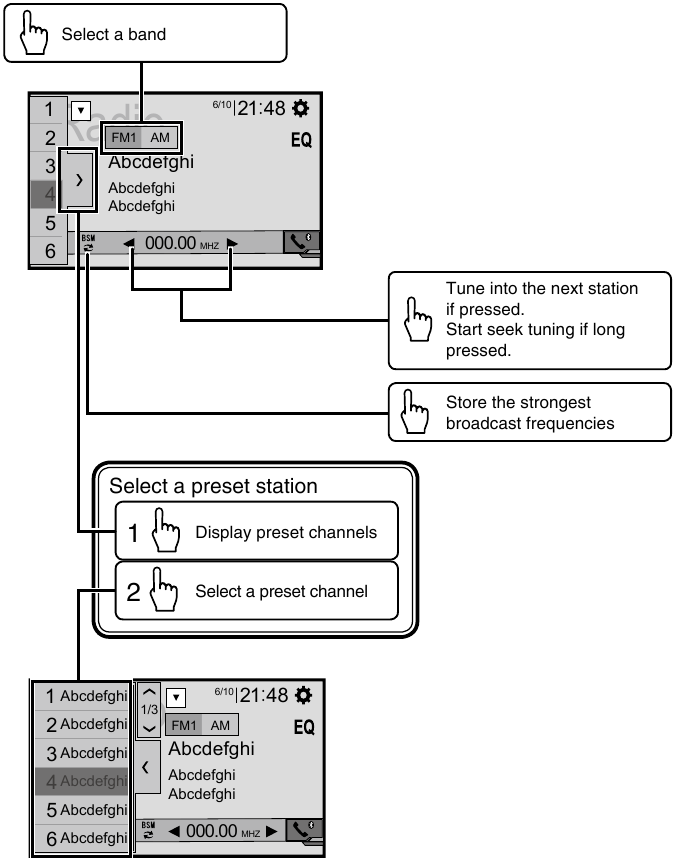

Tuner operation

Tuner operation

Moving images operation

[DVD operation]
Moving images operation - Part 1
The vehicle must be in park with the parking brake set.

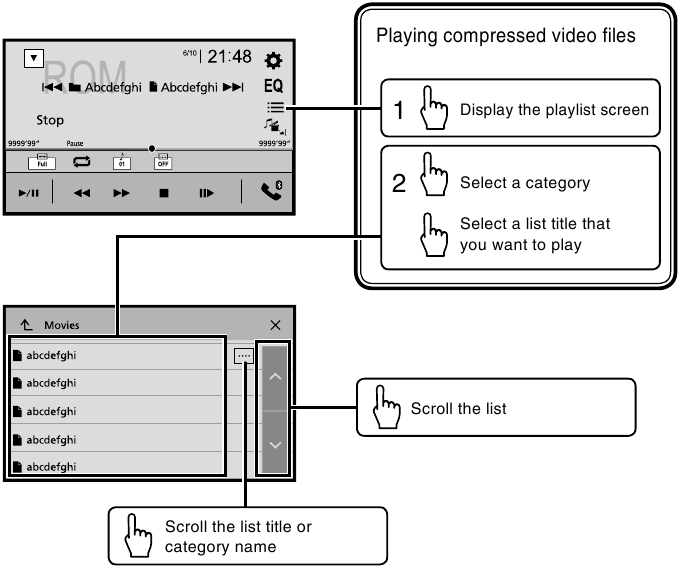

[ROM, USB-Video operation]
Moving images operation - Part 2
The vehicle must be in park with the parking brake set.

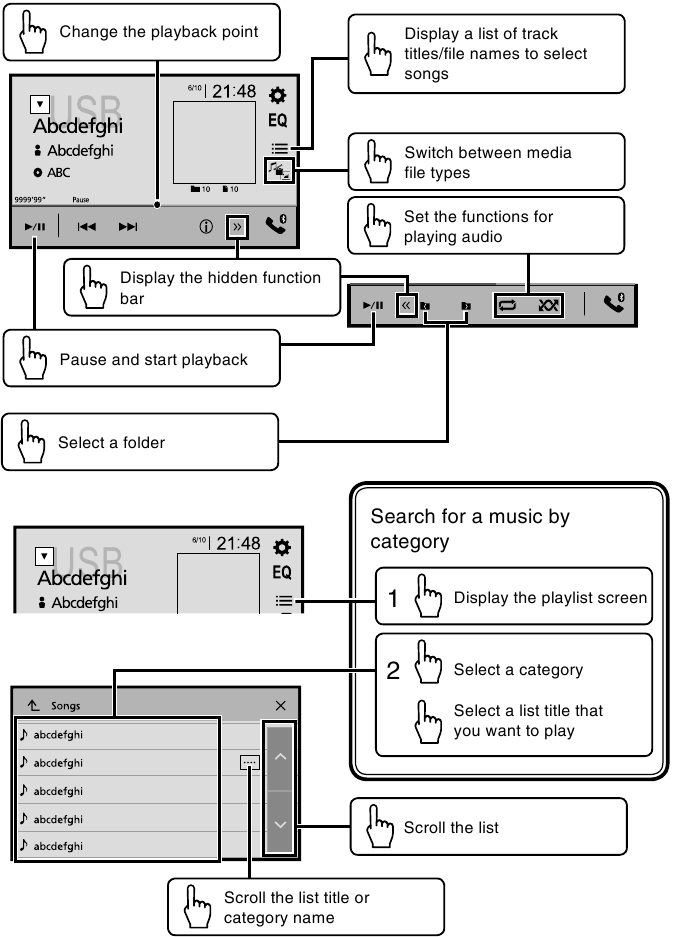

Audio operation

Audio operation

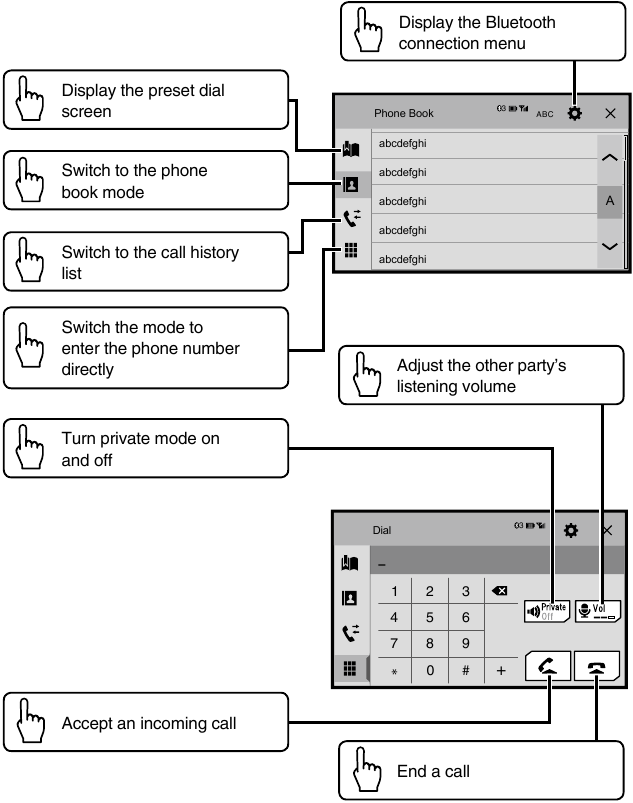

Bluetooth telephone operation

Connecting to Bluetooth

  1. .
  2. .
  3. [Connection].
  4. .
  5. the Bluetooth device name.
    Bluetooth telephone operation
