Summary of Contents for Beninca LADY 4

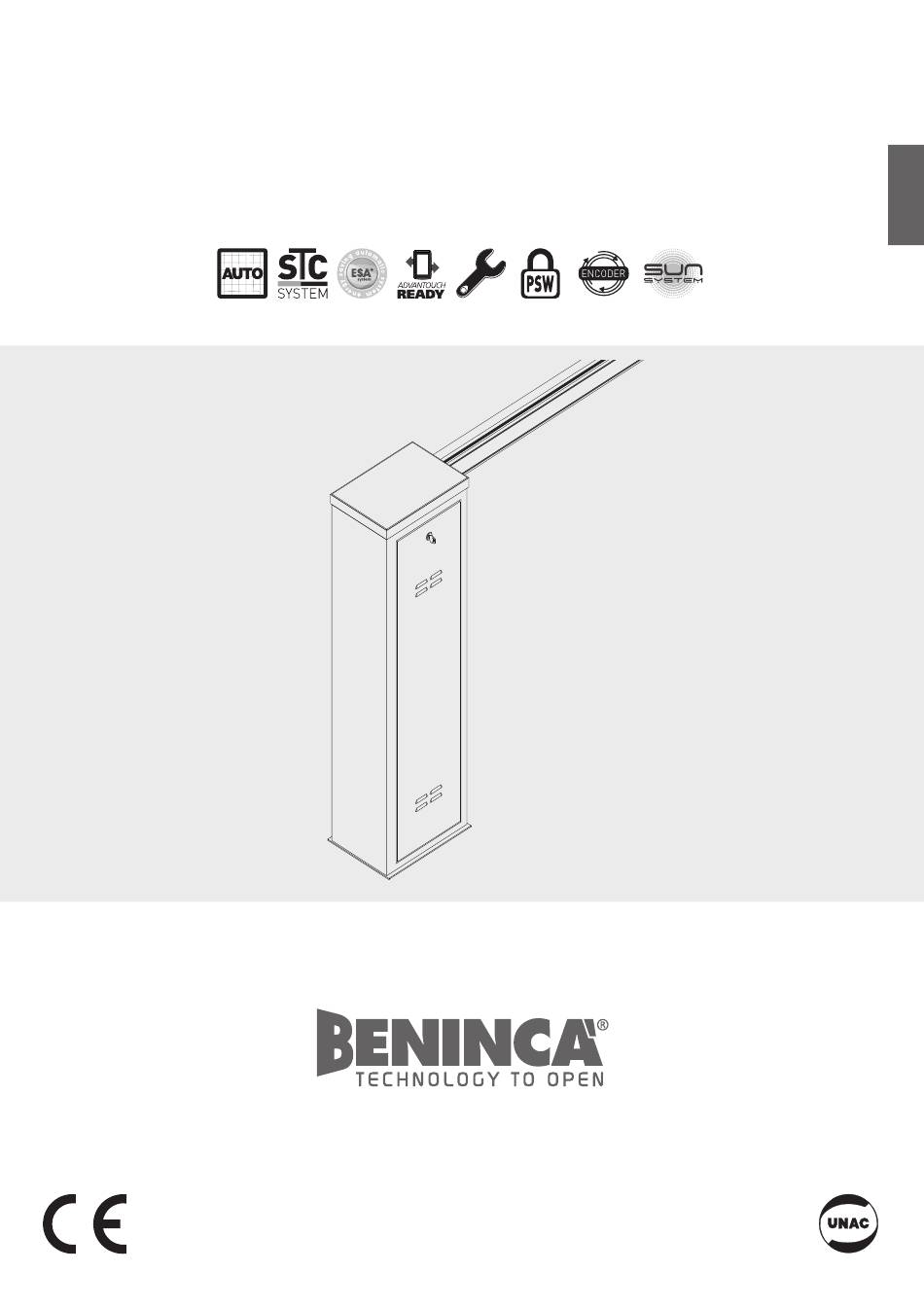

- Page 1 CL8543131 11/2016 rev 0 LADY 4 UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 3 2 , 0 4 , 0 2 , 2 4 , 2 Dimensioni d’ingombro Overall dimensions Platzbedarf Dimensions d’encombrement Dimensiones totales Wymiary gabarytowe Dado M12 UNI 5588. Nut M12 UNI 5588. Mutter M12 UNI 5588. Ecrou M12 UNI 5588. Livella. Tuerca M12 UNI 5588.
- Page 4 V ring (V 60A) Piastra. Plate. Platte. Platine Placa. Płyta Vite M14x30 UNI 5933. Screw M14x30 UNI 5933. Schraube M14x30 UNI 5933. Vis M14x30 UNI 5933. Tornillo M14x30 UNI 5933. Sruba M14x30 UNI 5933 Colonna Asta LADY.A. Column Bar LADY.A. Säule Stange LADY.A.
- Page 5 Ripristino automatismo Reset automation Reset des Automatismus Réinitialisation automatisme Reactivación del automatismo Przywrócenie działania automatyzmu Sblocco di emergenza Emergency release Notentriegelung Déblocage de secours Desbloqueo de emergencia Rozsprzęglanie awaryjne Con motoriduttore sbloccato: With geared motor released: Bei entriegeltem Getriebemotor: Avec l’opérateur débloqué : Con motorreductor desbloqueado: Z motoreduktorem odblokowanym: Se l'asta tende a chiudere, aumentare la tensione della molla (distendere la molla con rotazione oraria)
- Page 6 Slow-down Open (SLDo) Slow-down Close (SLDC) Mod. VE.AF / VE.AFS (Optional) 2x1.5 230 V...
- Page 7 - 24V + AUX2 BLINK 2xDA.BT2 (Optional) MENC ABS. ENCODER (Optional) CP.EVA2 LED 2 24Vdc 500 mA LED 1 - 24V + SA.24V LIGHT LAMP. 24Vdc 24Vdc AUX2 BLINK 100÷250 Vac...
- Page 8 Schema menu di programmazione - Menu programming layout Display OFF Diagramm Programmiermenü - Menu de programmation Menú de la carta de programación - Układ menu programowania Power ON v1. 0 5 Firmware Ver. (3s) 8888 Inst Boom Diagnostic IBCA 0--- ---0 fsts ltca...
- Page 9 Nman 0012 3456 MACI 2 Cycle AUTO PUSH OPEN/CLOSE RE-ENTER CODE 0000 9000 9C5a conf CODE Display OFF Inst Legenda Premere il tasto (-) / Press key (-) / Die Taste (-) drücken Appuyez sur la touche (-) / Presionar la tecla (-) / Wcisnąć przycisk (-) PUSH Premere il tasto (+) / Press key (+) / Die Taste (+) drücken Appuyez sur la touche (+) / Presionar la tecla (+) / Wcisnąć...
- Page 10 PHOTOTEST AUX1:0000 AUX1:0004 24Vdc tst1:on AUX1 AUX1 24Vdc PHOT 24Vac LAMP SERVICE LIGHT AUX1:0003 24Vdc 24Vac NC NO 24Vac AUX1 Relè 24Vdc 230Vac LAMP MASTER SLAVE Menu Menu ID=0 ID=1 3x0,5mm GND B A GND B A...
-
Page 11: Quick Programming
WARNING GENERAL INFORMATIONS The product shall not be used for purposes or in ways other than those for which the product is intended for and as described in this manual. Incorrect uses can damage the product and cause injuries and damages. The company shall not be deemed responsible for the non-compliance with a good manufacture technique of gates as well as for any de- formation, which might occur during use. -
Page 12: Technical Data
1) TECHNICAL DATA LADY4 230 Vac Feed 24 Vdc Motor feed 1,6 A Motor consumption 205 Nm Torque IP44 Degree of protection Intensive use Jogging -20°C/+50°C Operation temp. min. 3,6" Opening time Permanent grease Lubrication <70dB (A) Noise level 50 kg Weight 2) POSITIONING THE SPRING AND THE ACCESSORIES FOR USE Depending on the length of the bar and on the type of accessories installed, before putting the spring under tension it is necessary to choose the correct... - Page 13 6) MANUAL AND EMERGENCY MANOEUVRES In the event of a power cut or of abnormal operation, it is possible to release the bar and move it by hand (Fig. 6). Using the key provided: • To release the bar, turn the key in a clockwise direction until you fell a certain resistance. •...
- Page 14 TERMINAL BLOCK M3 Connection for the antenna of the built in receiver (ANT-signal/SHIELD-shield). ANT-SHIELD Antenna In case of use of an external antenna it is necessary to remove the pre-cabled cable from the terminal ANT Auxiliary output AUX 1 Output with N.O. contact configurable by means of the logic AUX 1 24 Vdc Accessory power supply 24Vdc 500 mA maximum Motor...
- Page 15 Adjusts the motor torque applied to the barrier during the opening phase.* 1-99-(20) Adjusts the motor torque applied to the barrier during the closing phase.* 1-99-(20) Adjusts the motor torque applied to the barrier during the slowdown in opening phase * (Fig.9 1-99-(20) - Slow Open).
- Page 16 Enables or disables motors check. TSTm On: Check enabled. If the check has a negative result, no manoeuvre is commanded. (OFF) Off: Check disabled. The code programmable transmitters is enabled or disabled. On: Radio receiver enabled only for rolling-code transmitters. Cvar (ON) Off: Receiver enabled for rolling-code and programmable code transmitters (self-learning and...
- Page 17 12.8) AUTOSET (AUTO) This function sets the optimal functioning values of the installation, at the end of the procedure, it sets the average values of torque (PMO/PMC and PSO/PSC). To carry out the AUTOSET, proceed as follow: a) Make sure that during the autoset there is no obstacle is in the maneuver area, if necessary, fence off the area so that persons, animals, cars, etc., cannot interrupt the procedure.
-
Page 18: Back Up Batteries
15) FUSES F3 CP.EVA2: T1A - Fuse for the protection of the accessories power supply F1 SA.24V: T4A - Fuse for general protection 16) BACK UP BATTERIES The control unit CP.EVA2 includes the power pack SA.24V predisposed for the connection of two batteries by 12Vdc 2,1Ah DA.BT2 (optional) which guarantee the regular functioning of the automation in case of temporary power failure. -
Page 19: Safety Rules
LADY5 User’s handbook Safety rules • Do not stand in the movement area of the gate. • Do not let children play with controls and near the gate. • Should operating faults occur, do not attempt to repair the fault but call a qualified technician. Manual and emergency manoeuvres In the event of a power cut or of abnormal operation, it is possible to release the bar and move it by hand. - Page 20 Pos. Denominazione - Description - Bezeichnung - Dénomination - Denominación - Określenie Cod. Spring Feder Sprężyna Ressort Muelle Molla 9686183 Lever Hebel Uchwyt Levier Palanca Leva 9686248 Column Säule Kolumna Fût Columna Colonna 9686180 Door Tür Drzwiczki Porte Puerta Porta 9686181 Wspornik Support...
- Page 21 Pos. Denominazione - Description - Bezeichnung - Dénomination - Denominación - Określenie Cod. Gear shaft Welle Zahnrädersupport Wał wsp. przekł.zęb. Albero supp. ingr. Arbre engrenages Eje de sop. engr. 9686110 Gasket Dichtung Uszczelka Guarnizione Garniture Junta 9686112 Gear and pin Zahnrad und Stift Przekładnia zębata i kołek Ingranaggio e piolo...
-
Page 22: Dichiarazione Ce Di Conformità
The most recent and complete certificate of conformity Il Certificato di Conformità più completo e recente Die neueste und vollständigste Konformitätserklärung is available consulting the site: www.beninca.com or è disponibile consultando il sito: www.beninca.com ist auf der Internetseite: www.beninca.com erhältlich can be requested from: oppure può... - Page 24 AUTOMATISMI BENINCÀ SpA - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
