Panel Cutouts

For convenience and versatility, this version of the QuickPanel View can be
mounted in cutouts of two different specifications. Refer to the appropriate
section that follows.

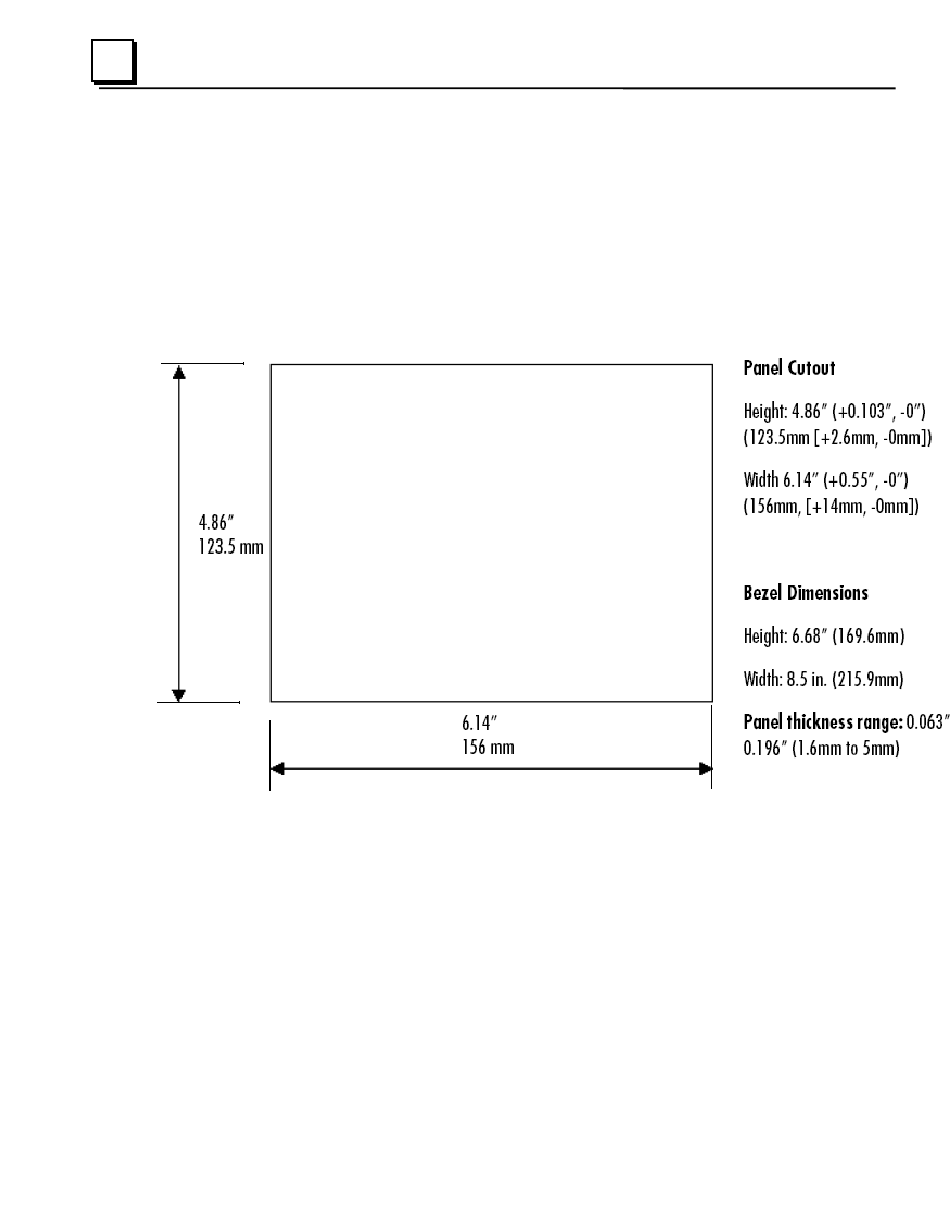

Small Cutout Dimensions
The unit will not fit through the small cutout with any cables connected, or with
the power supply plug inserted in the socket.
1-6 6" QuickPanel* ViewBasic, Monochrome, Round Bezel – September 2010
Depth 2.026" (51.5mm)
GFK-2327B
