GB
OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 2
D
GEBRAUCHSANWEISUNG . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 16
F
MANUAL D'UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 32
NL
GEBRUIKSAANWIJZING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 48
E
INSTRUCCIONES DE USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 64
I
ISTRUZIONI D'USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 78
RS – 220
Advertisement
Table of Contents
Related Manuals for Kero-Sun RS-220

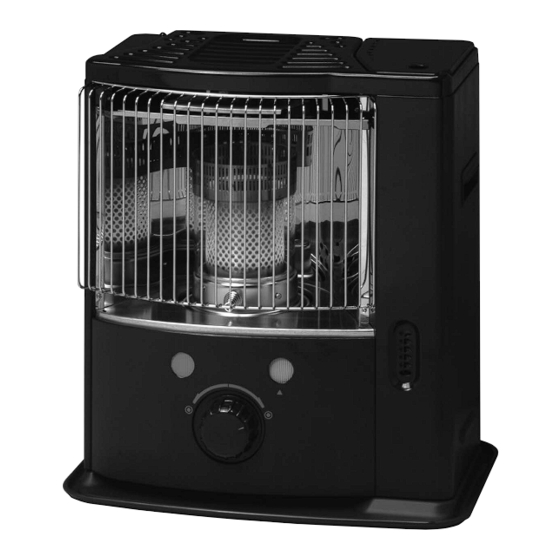

Summary of Contents for Kero-Sun RS-220

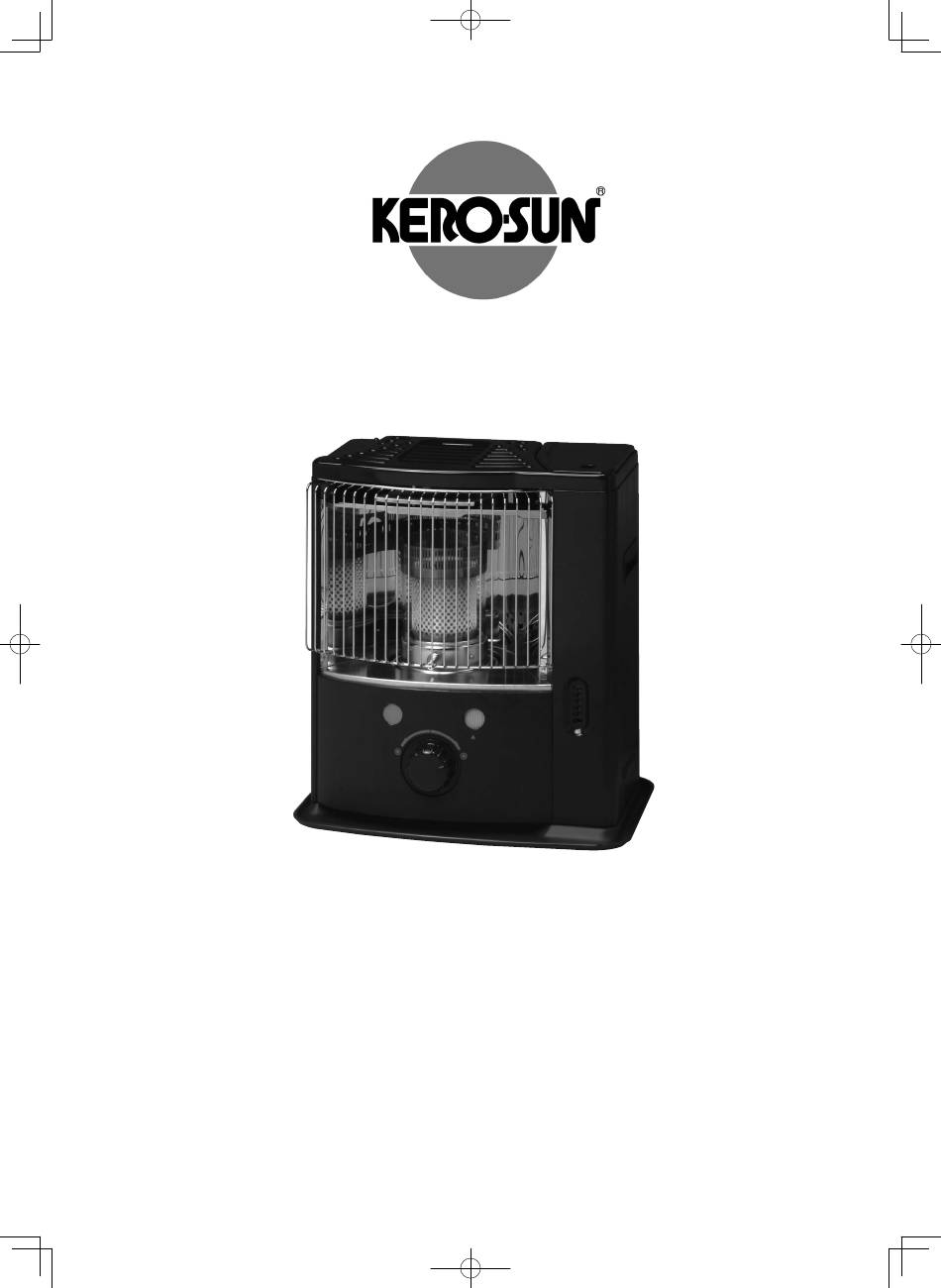

- Page 1 RS – 220 OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 2 GEBRAUCHSANWEISUNG .
- Page 2 AFNOR CERTIFICATION - 11, RUE FRANCIS DE PRESSENSE 93571 LA PLAINE SAINT-DENIS CEDEX FICHE INFORMATIVE La marque NF garantit la qualité de cet article suivant les normes françaises NF 128 45 / 01 et Règles de certification de l’application NF 128 CONFORME A LA NORME NF D 35-300 ET AUX SPECIFICATIONS COMPLEMENTAIRES DEFINIES PAR LES REGLES DE CERTIFICATION DE LA MARQUE NF 128...
- Page 3 Thank you for choosing a “TOYOTOMI” product! Toyotomi products are used by satisfied customers worldwide. In order to assure the comfortable and safe use of our products by customers in each country, our products conform to the safety standards not only in Japan but also in every country around the world we do business with.
-
Page 4: General Directions For Use
geneRal diRections foR Use Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL. Remove all packaging materials (refer to Section A, Fig. A). Fill the removable tank I and wait 30 minutes before you ignite the heater (refer to Section B, Fig. -
Page 5: What You Need To Know In Advance
What YoU need to KnoW in adVance ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. -
Page 6: Installing The Heater
Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater. Damage and/or malfunctions of the heater due to the use of other than high quality water-free pure paraffin oil is not covered by the warranty. Always refer to your local dealer for the right fuel for your heater. -
Page 7: Filling Fuel
The floor should be firm and completely level. Reposition the heater, when it is not level. Do not correct the situation by placing books or other goods under the heater. 6 Your heater is now ready for use. FILLING FUEL Fill the removable tank in a suitable place since there can always be some spillage. - Page 8 Before igniting the heater, always check the fuel indicator to see whether the removable tank needs filling up (Green=full, Red=empty). Always ignite the heater with the ignition coil K. Never use matches or a cigarette lighter. Follow the procedure below: 1 Turn the knurled wick adjustment knob ...
- Page 9 When there is insufficient ventilation in the room, the heater shuts off automatically. After improving the ventilation of the room (e.g. by opening a door or window a little more), the heater can be ignited again. This heater is equipped with a safety mechanism which switches off the heater when the removable fuel tank is taken out of its compartment (Fig.
- Page 10 You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’). The room is insufficiently ventilated. Leave a window or a door wide open for a while. THE HEATER IS BURNING TOO HIGH ...
- Page 11 TRANSPORTATION Take the following measures to avoid fuel leakage during the transportation of the heater: 1 Let the heater cool down. Remove the removable tank from the heater and remove the fuel acceptance fitting (Fig. S). Some drops may leak from the fuel acceptance fitting;...
- Page 12 WARRANTY PROVISIONS Your heater comes with a 24 months warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty: 1 We expressly dismiss all other claims for damages, including consequential damages.
-
Page 13: Tips For Safe Use
14 TIPS FOR SAFE USE Make sure that children are always aware of the presence of a burning 100 cm heater. Do not move the heater when it is burning or still hot. Do not refill nor 20 cm service the heater when it is burning or still hot. Position the front of the heater at a minimum distance of 1.5 metres from 50 cm 50 cm... - Page 14 Replacement of the WicK ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK. Open the lid and remove the removable tank. 2 Remove the batteries from the battery holder L. 3 Open the front grill. Remove the combustion chamber from the heater.
- Page 15 12 Install the wick to the wick sleeve according to the allo- wed direction engraved on the wick sleeve. 13 Install the wick sleeve (with wick) to the primary air tube. And then turn the wick sleeve clockwise to set in the handle arm.
-
Page 16: Main Components
MAIN COMPONENTS OFF - button Knurled wick adjustment knob Ignition button Combustion chamber Combustion chamber handle Fuel indicator ❹ Grill Lid for removable tank Removable tank Fuel gauge of removable tank Ignition coil Battery holder Air quality control ... - Page 17 Distributed in Europe by TOYOTOMI EUROPE SALES B.V. Should you require further information or should particular problems occur that are not dealt with in this operating manual, please visit our website www .toyotomi .eu or contact our Sales Support (you find its phone number on www .toyotomi .eu) Falls Sie weitere Informationen wünschen, oder sollten besondere Probleme auftreten, die in dieser Bedienungsanleitung nicht ausfürhrlich genug behandelt werden, besuchen Sie bitte unsere Website (www .toyotomi .eu), oder fordern Sie die benötigte Auskunft von...
