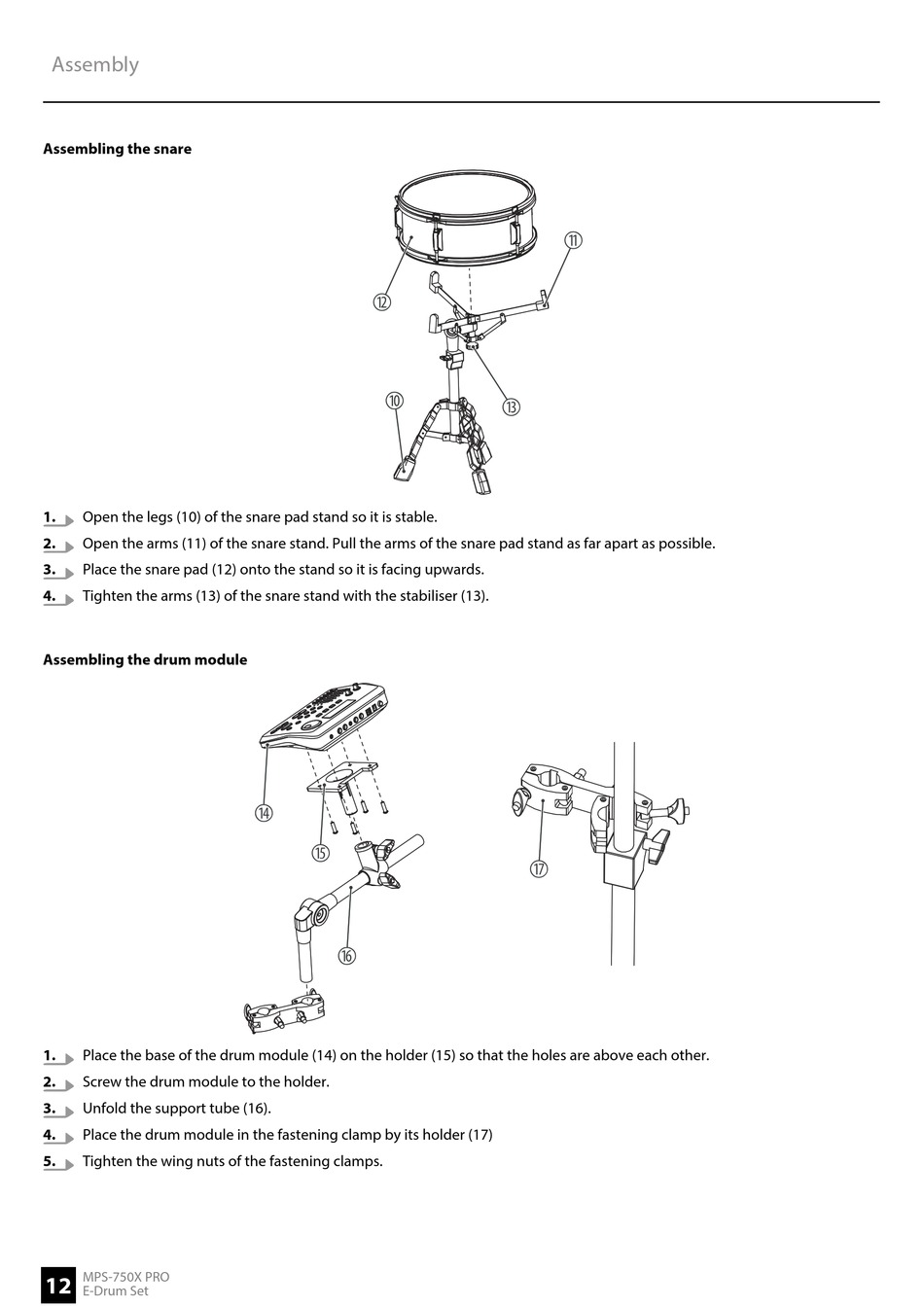

Assembly
Assembling the snare
1. Open the legs (10) of the snare pad stand so it is stable.
2.
Open the arms (11) of the snare stand. Pull the arms of the snare pad stand as far apart as possible.
3.
Place the snare pad (12) onto the stand so it is facing upwards.
4.
Tighten the arms (13) of the snare stand with the stabiliser (13).
Assembling the drum module
1.
Place the base of the drum module (14) on the holder (15) so that the holes are above each other.
2.
Screw the drum module to the holder.
3.
Unfold the support tube (16).
4.
Place the drum module in the fastening clamp by its holder (17)
5. Tighten the wing nuts of the fastening clamps.
