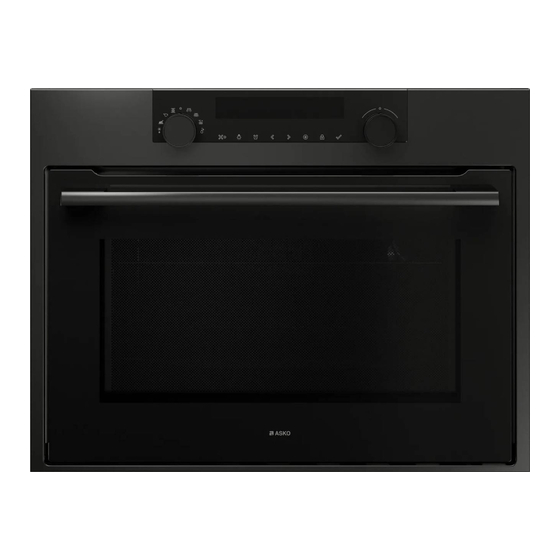

- Page 1 Instructions for use OVEN OCM8487S / BO4CM4F3-42 OCM8487B / BO4CM4F3-42 OCM8487A / BO4CM4F3-42 OCM8487A1 / BO4CM4F3-42...
- Page 2 Manual EN 3 - EN 39 Pictograms used Important information...
-
Page 3: Table Of Contents
YOUR OVEN Your oven Introduction Control panel Description Guide rails/Telescopic guide rails Accessories Door Cooling fan Main functions Keys Navigation Initial use What to do first Operation Selecting your function Function settings mode Progress mode Finish display Changing settings during the progress Functions table Using the microwave Settings menu... -
Page 4: Introduction
YOUR OVEN Introduction Congratulations on choosing this ASKO combi microwave oven. This product is designed to offer simple operation and optimum user-friendliness. The oven has a wide range of settings enabling you to select the correct cooking method every time. -
Page 5: Control Panel
YOUR OVEN Control panel 6 7 8 9 1. Function knob (in ‘Off’ position) 2. Defrost 3. Programs & Favourites 4. Fast preheat 5. Oven 6. Microwave 7. Combi microwave 8. Warming 9. Aqua clean 10. Display 11. Selection knob 12. -
Page 6: Description
YOUR OVEN Description Level 4 Level 3 Level 2 Level 1 1. Control panel 2. Oven levels 3. Oven door 4. Door handle Guide rails/Telescopic guide rails • The oven has four or five guide rails (Level 1 to 4/5), depending on the model. -
Page 7: Accessories
YOUR OVEN Accessories Your appliance is accompanied by a range of accessories, depending on the model. Only use original accessories; they are specially suited to your appliance. Be sure that all the accessories that are being used are able to withstand the temperature settings of the chosen oven function. -
Page 8: Cooling Fan
YOUR OVEN Cooling fan • The appliance is equipped with a cooling fan that cools the casing and control panel. Main functions With the function knob you can select the main functions of your oven. Setting Description Off/standby mode Oven Hot air Hot air + bottom heat Bottom + top heat... -
Page 9: Keys
YOUR OVEN Combi microwave Hot air + microwave Large grill + fan + microwave Warming Plate warming Keep warm Aqua clean Keys In the table below you can find the discription of the different keys. Keys Description of the keys On/off key and stop key - Press short: cancel operation or go one step back in the menu. -
Page 10: Navigation
YOUR OVEN Child lock key - Press and hold the lock key to lock the appliance. Confirm key - To confirm all the white settings/elements in the screen. - Add 30 seconds microwave time (microwave function). Navigation active area function knob stop key navigation keys confirm key... - Page 11 YOUR OVEN • When all elements in the screen are set, confirm these settings by pressing the confirm key (this key is blinking if it is possible to start the program). • Press the stop key to go one step back in the menu. At the top of the display is a feedback bar.
-
Page 12: Initial Use
INITIAL USE What to do first • Clean the oven interior and accessories with hot water and washing-up liquid. Do not use aggressive cleaning agents, abrasive sponges and similar. • The oven will emit a strange smell when it is used for the first time; this is normal. - Page 13 INITIAL USE Setting the time TIME l HOUR 1. Turn the selection knob and select the hours. 2. Confirm this setting by pressing the right navigation key or by pressing the selection knob. 3. Turn the selection knob and select the minutes. 4.
-
Page 14: Operation
OPERATION Selecting your function Select a function appropriate for the meal you are cooking. Consult the table in chapter ‘Functions table’ to see which functions are available. • Go directly to the progress mode by pressing the confirm key (this key is blinking if it is possible to start the program). - Page 15 OPERATION 4. Turn the selection knob and change the setting. OVEN l TEMPERATURE 14:30 °C °C 5. Confirm the setting by pressing the right navigation key or by pressing the selection knob. The next sub-function setting becomes active. OVEN l COOKING TIME 14:30 °C ▷...
-
Page 16: Progress Mode
OPERATION Progress mode • Left side on the screen, the temperature or/and the power is displayed (if the set temperature is not reached, the temperature will switch between cavity temp (grey) and set temp (white)). If the set temp is reached a pop-up will appear ‘set temperature is reached’. •... - Page 17 OPERATION Add extra time 1. Press the right navigation key to select ‘Add extra time’. 2. The time setting becomes active and can be changed directly by rotating the selection knob. 3. Confirm by means of the confirm key. The previous process is activated again. Gratin 1.
-
Page 18: Changing Settings During The Progress
OPERATION Changing settings during the progress • During progress, pressing the navigation keys will show the active area. The selected setting can now be changed, see chapter ‘Function settings mode’. • After confirmation with the confirm key the progress screen will be shown with the changed settings. -
Page 19: Use
Functions table Consult the table to select the preferred function. Also consult the instructions for preparation on the dish packaging. • In ‘Microwave function’: do not use metal cookware or utensils and do not preheat the oven. Function Description Oven functions Hot Air •... - Page 20 Function Description Large Grill • Heating by means of the upper element and grill element. • This mode can be used with dishes and baked goods that require a distinctive bottom crust or browning. Use just before the end of the baking or roasting time.
- Page 21 Function Description Top Heat • Heating only by means of the upper heating element. • This mode can be used when you wish to bake/ roast the top part of your dish. • Place the baking tray or oven rack in the middle of the oven.
- Page 22 Function Description ECO Hot air • Heating by means of hot air. ECO hot air uses less energy but gives the same result as the hot air setting. Cooking takes a few minutes longer. • This mode can be used for roasting meat and baking pastry.
-
Page 23: Using The Microwave
Function Description Microwave + Grill with Fan • The food is cooked with a combination of microwaves and grill with fan. • Use this combination for smaller chunks of meat, fish and vegetables. • It allows fast cooking and the food will have a nicely browned crispy crust. - Page 24 The microwave is used for: • the microwave function. • the combi functions. Cooking principle 1. The microwaves generated by the microwave are spread evenly by a distribution system. This cooks the dish evenly. 2. The food absorbs the microwaves to a depth of approximately 2.5 cm. Cooking then continues, because the heat is spread in the dish.
- Page 25 Guidelines for microwave cookware Cookware that you use for the microwave function should not block the microwaves. Metals such as stainless steel, aluminium and copper reflect microwaves. For that reason, do not use metal cookware. Cookware which is designated as microwave-safe can be used safely. For more information about suitable cookware, consult the following guidelines and always use the glass baking tray on level 1 if you use the microwave function.
-
Page 26: Settings Menu
Cookware Microwave safe Remarks Plastic Especially heat-resistant thermoplastic material. Other types of plastic can warp or discolour at high temperatures. Do not use melamine plastic. Can be used to hold moisture. May not touch the food. Be careful when you remove the fi lm; hot steam can escape. Only if boil-proof or ovenproof. - Page 27 General You can set the following from this menu: • Language (language of the display) • Time (always in 24H format) • Time display (24H or 12H format) • Date (always day-month-year format) • Date display (ddmmyyyy or mmddyyyy) • Sounds (volume of the general sounds and alarms) •...
-
Page 28: Plus Menu
Plus menu Depending on the function, there is a possibility to choose extra functionality (after you have chosen a main function and settings in the ‘Function settings mode’) by pressing the ‘plus key’. • A small icon next to the curent time will give an indication about the activated plus menu functions. -
Page 29: Cooking Information
Cooking information The cooking info screen will give more information about the chosen function, like the needed equipment and for what kind of purposes the function is used. Fast preheat There are two different ways to use fast preheat: Activate the fast preheat in the settings menu (to be default on or off) 1. -
Page 30: Delayed Start
Delayed start Use the ‘delayed start’ function to start cooking at a later time, by setting the desired finishing time. 1. Press the plus key (in the ‘Function settings mode’). 2. Select ‘Delayed start’ with the right navigation key. 3. Press the confirm key. The display will show the delay start symbol, the cooking time and the end time. -
Page 31: Go To Manual Cooking
4. To add a stage, select the second stage by pressing the navigation key or rotating the selection knob and to enter the stage for editing, press the confirm key. The display will switch to the oven setting display. 5. Make a selection of all available functions of the appliance. 6. -
Page 32: Egg Timer
• In the settings, first a picture of the dish is visible (not editable), the weight (depending on the dish) (if it is editable), the intensity (not always editable) and the cooking time. If necessary, adjust the intensity and/or the weight. Favourites (see chapter ‘Finish display’) •... -
Page 33: Warming
Warming • Plate warming ▷ This function is used when you want to warm tableware (plates, cups) so that the served food stays hotter for longer. ▷ By choosing this function you can determine the warming up temperature and duration. •... -
Page 34: Cleaning
CLEANING Cleaning the appliance Clean the oven regularly to prevent fat and leftover food from accumulating, especially on the surfaces of the interior and the exterior, the door and the seal. • Activate the key lock (to prevent that the appliance is switched on accidentally). -
Page 35: Removing And Cleaning The Guide Rails
CLEANING Removing and cleaning the guide rails Use conventional cleaning products to clean the guide rails. • Remove the screw using a screwdriver. • Remove the guide rails from the holes in the back wall. Save the guide rail spacers carefully. Return the spacers after cleaning. This prevents sparks being created during use. -
Page 36: Replacing The Oven Lamp
CLEANING Replacing the oven lamp The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination. The oven is fitted with a halogen lamp. This product contains a light source of energy efficiency class (G). The lamp is a consumer item and therefore not covered by warranty. -
Page 37: Solving Problems
SOLVING PROBLEMS General If you have problems with your oven, consult the error overview below. Should the problems persist, please contact the Customer Services Department. The food stays raw • Check whether the timer has been set and you have pressed the confirm key. - Page 38 Repairs should only be performed by a qualified service technician. If maintenance is required, take the plug from the socket and contact the ASKO customer service. Have the following information to hand when you call: • The model number and serial number (stated on the inside of the oven door) •...
-
Page 39: Your Oven And The Environment
YOUR OVEN AND THE ENVIRONMENT Disposal of the appliance and packaging This product is made from sustainable materials. However, the appliance must be disposed of responsibly at the end of its useful life. The government can provide you with information about this. The packaging of the appliance can be recycled. - Page 40 The appliance rating label is located on the inside of the appliance. When contacting the service department, have the complete type number to hand. You will find the addresses and phone numbers of the service organisation on the guarantee card. en (07-22)
