Summary of Contents for Whirlpool AKP 205/IX

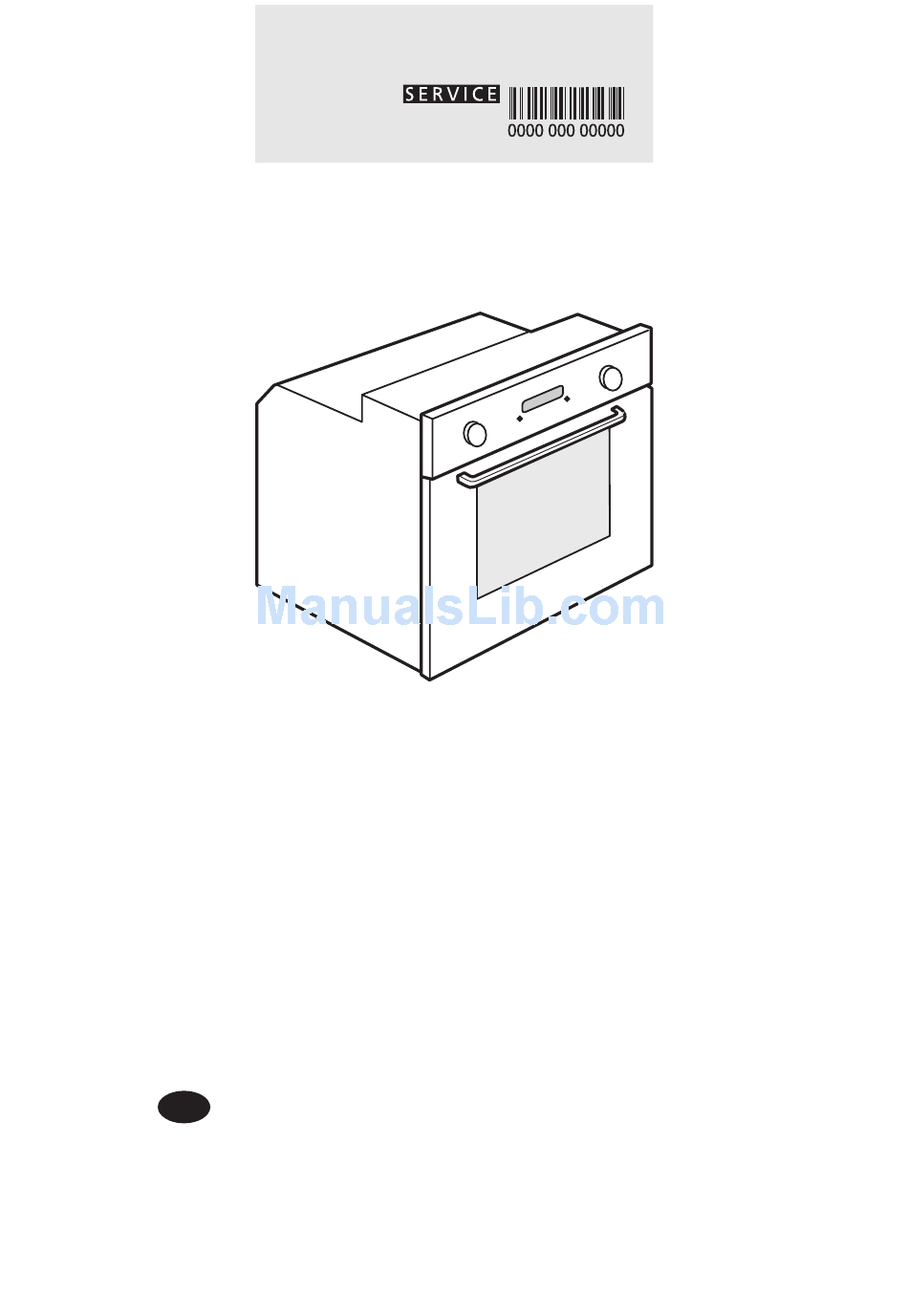

- Page 1 (Apply the label from warranty here) User and maintenance manual GB/IE...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the danger symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the danger symbol and the following terms: Indicates a hazardous situation which, if not avoided, will cause serious injury. -
Page 3: Installation
INSTALLATION After unpacking the oven, be sure that it has not been damaged during transport and that the oven door closes properly. In the event of problems, contact the dealer or your nearest After-sales Service. To avoid any damage, only remove the oven from its polystyrene foam base at the time of installation. PREPARING THE HOUSING UNIT •... -
Page 4: Cleaning
AFTER-SALES SERVICE Before calling the After-Sales Service: 1. See if you can solve the problem yourself with the help of the suggestions given in the “Troubleshooting guide”. 2. Switch the appliance off and back on again it to see if the fault persists. If after the above checks the fault still occurs, get in touch with the nearest After-sales Service. -
Page 5: Moving Top Heating Element
MAINTENANCE Use protective gloves. WARNING Ensure the oven is cold before carrying out the following operations. Disconnect power before servicing. REMOVING THE DOOR To remove the door: 1. Open the door fully. 2. Lift the catches and push them forwards as far as they will go (fig. 1). 3. -
Page 6: Replacing The Oven Lamp
REPLACING THE OVEN LAMP To replace the rear lamp (if present): 1. Disconnect the oven from the power supply. 2. Unscrew the lamp cover (Fig. 6), replace the lamp (see note for lamp type) and screw the lamp cover back on (Fig. 7). 3. -
Page 7: Compatible Accessories
COMPATIBLE ACCESSORIES (for the accessories supplied with oven refer to the tech fiche) Fig. 1 Fig. 5 Fig. 9 Drip-tray (Fig. 1) For collecting fat and bits of food when placed under the wire shelf, or as a plate for cooking meat, chicken and fish, etc., with or without vegetables. Pour a little water into the drip-tray to avoid spatters of fat and smoke. -
Page 8: Control Panel Description
CONTROL PANEL DESCRIPTION 1. Function selector knob 2. Minute minder knob 3. Thermostat knob 4. Red thermostat led. HOW TO OPERATE THE OVEN The minute minder allows a time between 1 and 60 minutes to be set. To set the minute minder, first turn it clockwise all the way round and then set it to the desired time. -
Page 9: Cooking Table
COOKING TABLE Recipe Function Preheating Leavened cakes Biscuits/Tartlets Choux buns Vols-au-vent / Puff pastry crackers Meringues Lamb / Veal / Beef / Pork Chicken / Rabbit / Duck Turkey / Goose Baked fish / en papillote (fillet, whole) Lasagne / Baked pasta / Cannelloni / Flans Bread / Focaccia Pizza... - Page 10 Recipe Biscuits/Tartlets Choux pastry Vols-au-vent / Puff pastry crackers Roast chicken Roast potatoes Roast Beef underdone Leg of lamb/Knuckle N.B.: cooking times and temperatures are approximate for 4 portions. Function Preheating Shelf (from bottom) 1 /3 1/ 3 1/ 3 Temperature Time Accessories...
-
Page 11: Recommended Use And Tips
RECOMMENDED USE AND TIPS How to read the cooking table The table indicates the best function to use for any given food, to be cooked on one or more shelves at the same time. Cooking times start from the moment food is placed in the oven, excluding pre-heating (where required). - Page 12 11/2009 5019 610 01094 GB/IE...
