Summary of Contents for Steel City 65100

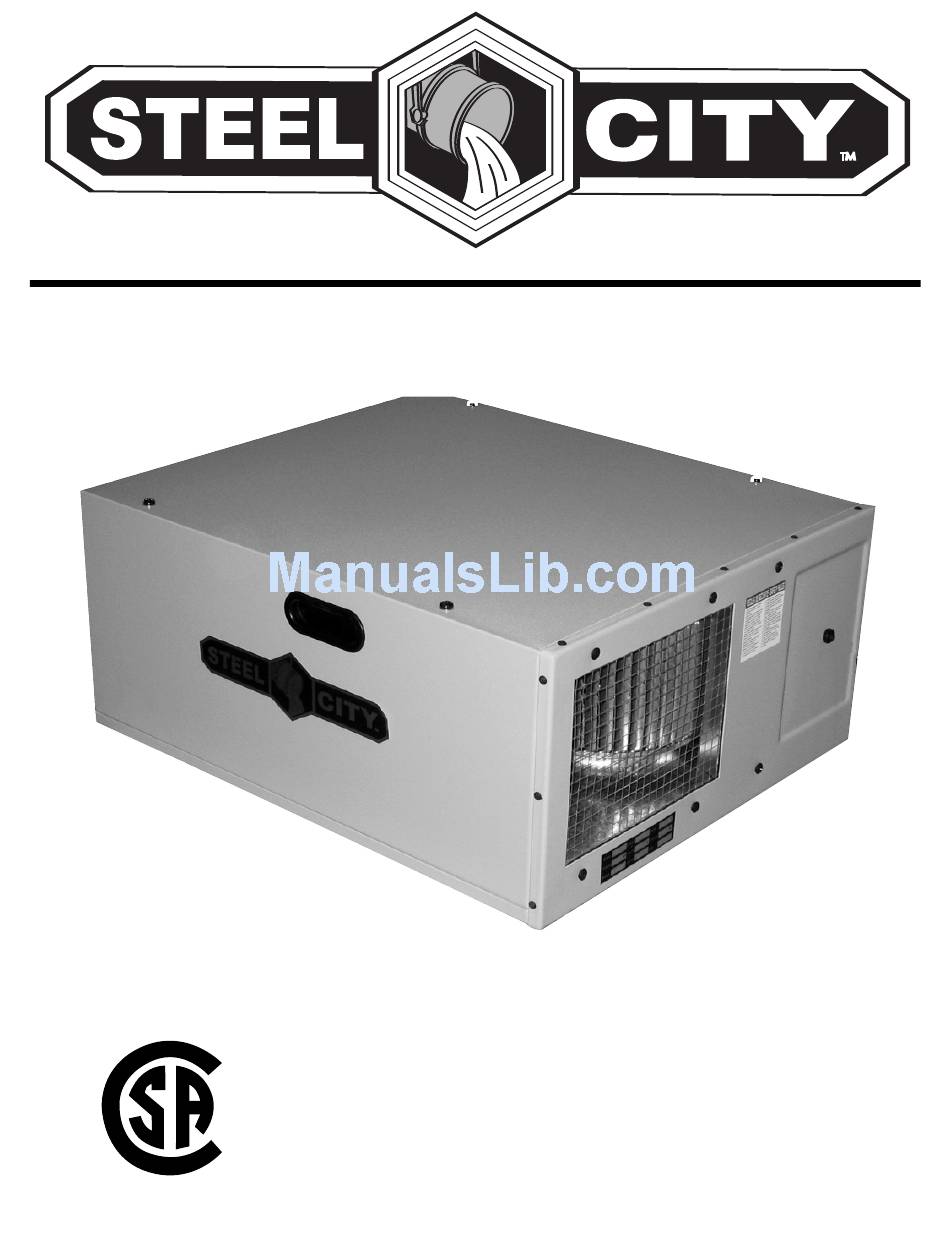

- Page 1 User Manual Read and understand this manual before using machine. AIR CLEANER – SINGLE SPEED ® STEEL CITY TOOL WORKS Model Number 65100 Manual Part No. OR70251...
-
Page 3: Table Of Contents
Do not attempt to perform maintenance or operate this machine until you have read and understand the information contained in this manual. This Air Cleaner is intended to filter dry airborne wood dust only. It must be limited to non-explosive, non-metallic atmosphere. This machine is not to be modified for any reasons. -
Page 4: Section 1 Warranty
WARRANTY STEEL CITY TOOL WORKS 5 YEAR LIMITED WARRANTY Steel City Tool Works, LLC (“SCTW”) warrants all “STEEL CITY TOOL WORKS” machinery to be free of defects in workmanship and materials for a period of 5 years from the date of the original retail purchase by the original owner. -
Page 5: Warranty Card
16. Would you recommend STEEL CITY products to a friend? ___ Yes 17. Comments: ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ___ Intermediate ___ Master Craftsman ___ Band Saw ___ Drum Sander ___ Horizontal Boring Machine ___ Lathe ___ Panel Saw ___ Power Feeder ___ Shaper ___ Table Saw... - Page 6 FOLD ON DOTTED LINE PLACE STAMP HERE Steel City Tool Works P.O. Box 10529 Murfreesboro, TN 37129 FOLD ON DOTTED LINE...
-
Page 7: Section 2 Product Specifications
Using other accessories may cause serious injury and cause damage to the machine. Below are some terms that will help you to understand and setup your Air Cleaner and design your own Air Cleaner System. Air Cleaner or Ambient Air Cleaner – A machine used to filter dry airborne wood dust. -
Page 8: Section 5 Feature Identification
FEATURE IDENTIFICATION Fig. 1-1 A. Air Cleaner B. Handle C. Eye-bolt D. Electrostatic Filter E. Intake Side F. Exhaust Side... -
Page 9: Section 6 General Safety
WARNING TO AVOID serious injury and damage to the machine, read and follow all Safety and Operating Instructions before assembling and operating this machine. This manual is not totally comprehensive. It does not and can not convey every possible safety and opera- tional problem which may arise while using this machine. - Page 10 Avoid all exposure to rotating parts to prevent injury. WARNING 15. DO NOT handle the plug or air cleaner with wet hands. 16. DO NOT pull the air cleaner by the power cord. NEVER allow the power cord to come in contact...
-
Page 11: Section 7 Product Safety
If the air cleaner is not operating properly, or has been damaged, left out- doors or has been in contact with water. 15. DO NOT use the air cleaner as a toy. DO NOT use near or around children. WARNING 16. -
Page 12: Section 8 Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING TO PREVENT electrical shock, follow all electrical and safety codes, including the National Electrical Code (NEC) and the Occupational Safety and Health Regulations (OSHA). All electrical connections and wiring should be made by qualified personnel only. GROUNDING INSTRUCTIONS WARNING This machine MUST BE GROUNDED while in use to protect the operator from electric shock. - Page 13 Fig. 1-1 Fig. 1-2 EXTENSION CORDS WARNING To reduce the risk of fire or electrical shock, use the proper gauge of extension cord. When using an extension cord, be sure to use one heavy enough to carry the current your machine will draw. The smaller the gauge-number, the larger the diameter of the extension cord is.
-
Page 14: Section 9 Unpacking & Inventory
C. Flange nut 5/16-18 (4) D. Rubber Pad (4) UNPACKING & INVENTORY power cord and turn “ON” the Air Cleaner. The Air Cleaner should only be turned “ON” after all the parts have been obtained and installed correctly. For missing parts, contact Steel City at 1-877-SC4-TOOL. -
Page 15: Assembly
Owner’s Manual. The Air Cleaner can be used as a portable or stationary unit. As a portable unit it can be moved and placed near the work to be done. As a stationary unit it can be hung overhead in the shop. -
Page 16: Section 11 Operations
91% of the dust particles that are one micron and larger (one micron = one millionth of a meter). The Air Cleaner will filter the air in a room measuring 20’ x 20’ x 8’ sixteen times an hour. If desired, multiple units can be used to filter larger areas. -
Page 17: Section 12 Maintenance
Always wear safety glasses and dust mask when performing this procedure. LUBRICATION The Air Cleaner has sealed lubricated bearings in the motor housing that do not require any additional lubrica- tion from the operator. CAUTION: DO NOT USE FLAMMABLE MATERIALS to clean Air Cleaner. -
Page 18: Troubleshooting Guide
TROUBLESHOOTING GUIDE TO PREVENT INJURY TO YOURSELF or damage to the Air Cleaner, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) Motor does not 1. Switch not pressed in far enough or start. - Page 19 x NOTES x...
- Page 20 PARTS...
-
Page 21: Section 14 Parts List
SPACER OR71168 SAFETY LABEL OR72104 SPEC LABEL OR70251 USER MANUAL, 65100 (NOT SHOWN) OR70686 USER MANUAL, 65100 FRENCH (NOT SHOWN) OR70687 USER MANUAL, 65100 SPANISH (NOT SHOWN) OR70254 HARDWARE PACK for #65100, INCLUDES OR91335 EYEBOLT 5/16-18 X 1-1/2” OR91336 FLANGE NUT 5/16-18... - Page 22 x NOTES x...
- Page 23 STEEL CITY TOOL WORKS www.steelcitytoolworks.com 5 Year Warranty...
