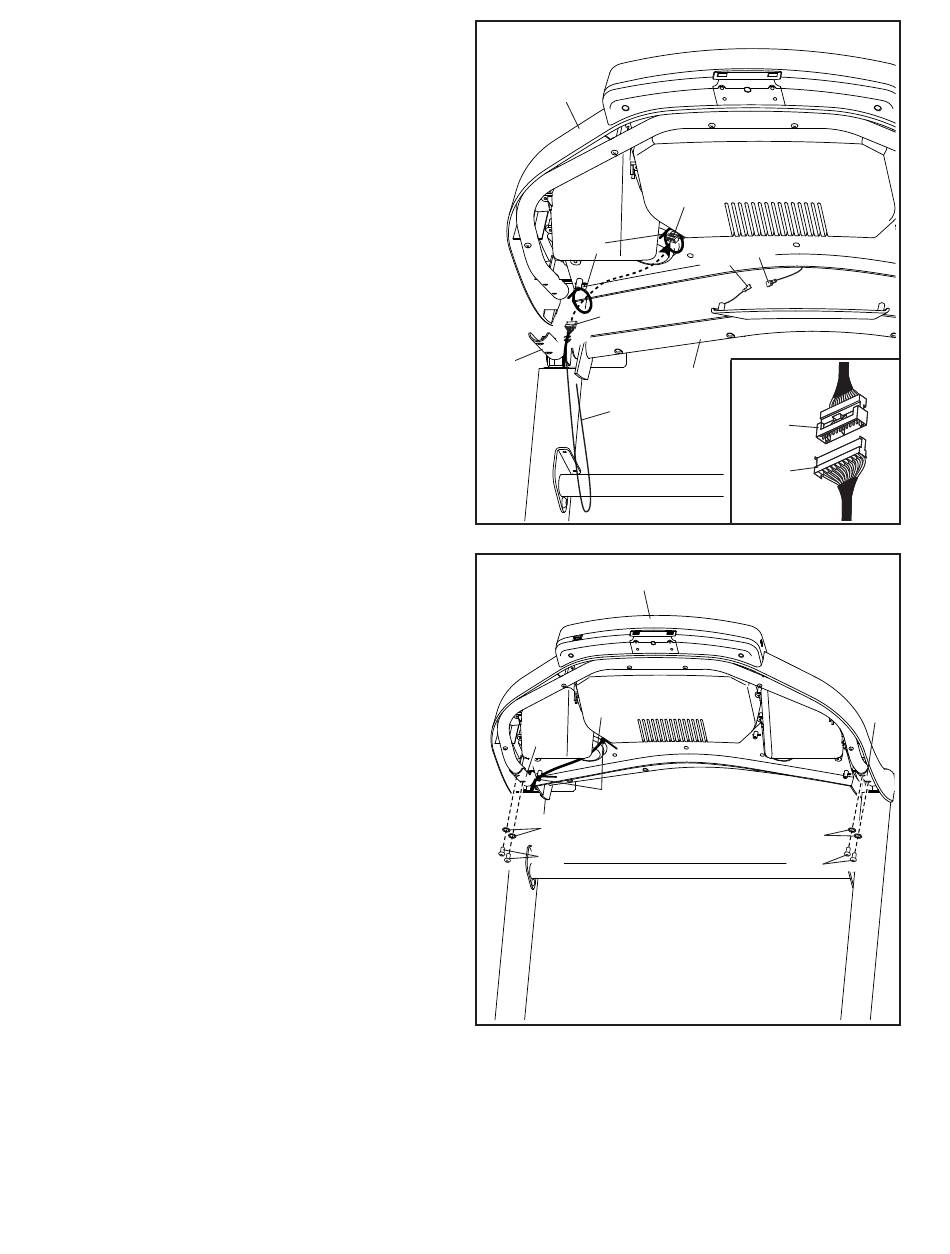

12. With the help of a second person, hold the
console assembly (H) near the Handrails (72).
Connect the ground wire (I) from the console
assembly (H) to the Console Ground Wire (76)
on the Pulse Crossbar (75).
Next, insert the Upright Wire (80) through the
two indicated looped ties (J).
See the inset drawing. Connect the Upright
Wire (80) to the console wire (K). The
connectors should slide together easily
and snap into place. If they do not, turn one
connector and try again. IF YOU DO NOT
CONNECT THE CONNECTORS PROPERLY,
THE CONSOLE MAY BECOME DAMAGED
WHEN YOU TURN ON THE POWER.
Then, remove the wire tie (A) from the Upright
Wire.
13. Set the console assembly (H) on the Handrails
(72). Make sure that no wires are pinched.
Insert the excess Upright Wire (80) into the
console assembly (H). Next, tighten the two ties
(J) around the Upright Wire, and cut off the ends
of the ties.
Then, attach the console assembly (H) with the
four 5/16" x 3/4" Screws (13) that you removed
in step 10 and four 5/16" Star Washers (7); do
not tighten the Screws yet.
