Homelegance 1456-9 Assembly Instructions

PART LIST /LISTE PIECES
NO SKETCH
1
2
3
STEP 1/ÉTAPE 1
3
2
3
MADE IN VIETNAM / FABRIQUÉ AU VIETNAM
ASSEMBLY INSTRUCTIONS
INSTRUCTION D' ASSEMBLANGE
R
Thank you for purchasing this product.Please take time to read and follow the
instructions below.Check that you have all parts andhardware before assembly.
Parts apparently missing are often found in the packing materials. If you do not
have all the parts listed,have yourdealer contact us and they will
be sent to you immediately.
It is recommended to install protective pads under all legs and supports to avoid
damage or scratches when placing furniture on a wood floor or other hard surface,
and to limit indentation and prevent discoloration if placing on carpet.
Il est recommandé de placer des coussins protecteurs sous tous les pieds et
toutes les bases des meubles pour éviter d'endommager oud'égratigner les
planchers en bois ou autres surfaces dures, et pour limiter l'empreinte et empêcher
la décoloration quand les meublesreposent
sur la moquette.
DESCRIPTION
CHEST / COMMODE
METAL LEG / PIED EN MÉTAL
METAL STRETCHER /
MÉTAL TENDEUR
2

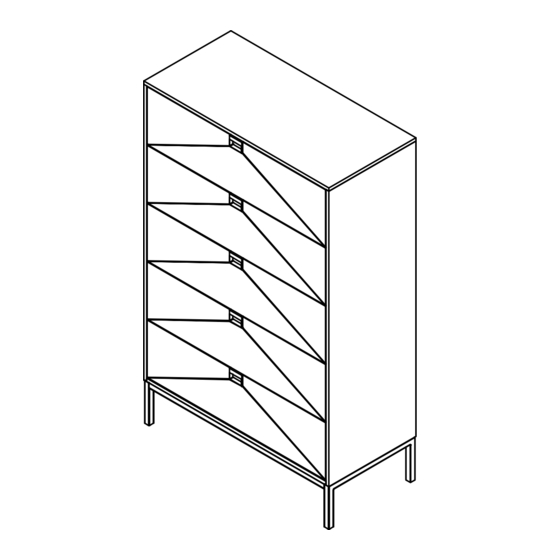

ITEM NO: 1456-9 CHEST/COMMODE
HARDWARE LIST/LISTE DE QUINCAILLERIE
Q'TY NO DESCRIPTION
A
BOLT/BOULON
LOCK WASHER/
1 pc B
RONDELLE D'ARRET
FLAT WASHER/
C
RONDELLE PLATE
D
ALLEN KEY /CLE' ALLEN
2 pcs
FURNITURE TIPPING RESTRAINT
E
SYSTEME ANTI BASCULEMENT
2 pcs
**ABOVE HARDWARE ARE PACKED IN #1456-9 FOR ASSEMBLY /
LE MATÉRIEL CI-DESSUS EST EMBALLÉ DANS #1456-9 POUR L'ASSEMBLAGE
*SCREWDRIVER (NOT PROVIDED) / TOURNEVIS (NON FOURNI)
STEP 2/ÉTAPE 2
3
2
SIZE SKETCH
1/4"-20 x 19/32"
1/4'' x 16/7" x 5/16" x 1/12"
1/4'' x 5/8" x 1/4" x 5/64"
5/32" x 2" 5/16" x 7/8"
D
A
B
C
2
3
Page 1 of 2/Pade 1 sur 2
Q"TY
18 pcs
18 pcs
18 pcs
1 pc
1 set
