INSTRUCTION
MANUAL
ELECTR
SR-S25/26/28NTA
SR-S25/26/28BTA
SR-S24/25/27/29FTA
SR-S24/25/27DTA

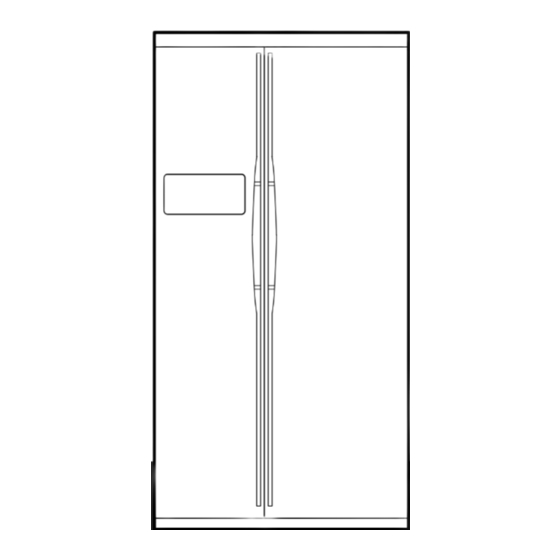

REFRIGERATOR
Before operating the unit, please read this manual thoroughly,
and retain for future reference.
NTA
BTA
FTA
DTA
If this unit becomes disconnected from
the power supply, you should wait for
at least five minutes before plugging it
back in.
DA68-60296D
Advertisement
Table of Contents
Related Manuals for Samsung SR-S29FTA
Summary of Contents for Samsung SR-S29FTA
- Page 1 INSTRUCTION MANUAL ELECTR SR-S25/26/28NTA SR-S25/26/28BTA SR-S24/25/27/29FTA SR-S24/25/27DTA REFRIGERATOR Before operating the unit, please read this manual thoroughly, and retain for future reference. If this unit becomes disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
-
Page 2: Table Of Contents
FEATURES What is the meaning of H. M. Cycle Energy saving refrigerator! (High-efficiency Multi-evaporator • Power consumption is kept to a minimum by the Cycle)? separate distribution of cool air in the refrigerat- • Refrigerating and freezing sections ing and freezing sections. has an evaporator each other. -
Page 3: Safety Warnings
SAFETY WARNINGS These warnings are to prevent injury to users or other persons. Please obeserve them. After reading these warnings. Please keep them in a safe place for later referral. SYMBOLS CAUTION/WARNING SYMBOLS DISPLAYED Represents prohibition. Indicates that a danger of Represents the prohibition of disassembly. - Page 4 WARNING Do not put a container filled Do not install the refrigerator Do not store volatile or with water on the product. in a damp place or a place inflammable substances in • May lead to fire or electric where water might splash. the refrigerator.
-
Page 5: Caution
CAUTION CAUTION Do not overfill the refrigerator with foodstuffs. Do not bottles or kinds of glass in the • Injury may be caused if food drops out after the freezing section. doors are open. • Freezing of the contents may break glass and lead to injury. - Page 6 If the refrigerator is not to be used for a long In case of abnormal sound, smell or smoke, time, pull out the power plug. pull out the power plug immediately and • Due to deterioration of insulation, may cause contact SAMSUNG Electronics service fire. center.
-
Page 7: Initial Operation
INITIAL OPERATION It should be satisfied when you test the refrigerator following below items. If not, check power supply and electricity state. If you can not any control, contact SAMSUNG service center. Place the shelves and containers Set temperature control to “HIGH”... -
Page 8: Installation
INSTALLATION Please allow sufficient space Cleaning your refrigerator. install on a flat surface. • It is necessary to wipe the inside • If your unit is not level, the internal and outside of your refrigerator cooling system may not work. clean with a dry dish cloth. -
Page 9: Installation Method
INSTALLATION METHOD Allowing a 5cm space on the right, left and back sides when installing the unit, gives you an advantage by saving power. 30cm 30 cm 5 cm THE LEVELLING METHOD When you level the refrigerator, set the front legs higher than the rear legs, you can open and close the door easily. -
Page 10: Front Control Part
FRONT CONTROL PART NTA, BTA FRE. CONTROL REF. CONTROL DOOR FRE. WARMER WARMER REF. ALARM HI-MOIST DOOR ALARM TWIN DOOR COOLING ALARM COLDER QUICK QUICK COLDER SYSTEM DEODORIZER FRE. QUICK REF. QUICK DTA, FTA FRE. CONTROL REF. CONTROL FRE. WARMER WARMER REF. - Page 11 INDICATORS (NTA, BTA) High humidity refrigeration function The high humidity function light turns on during operation. HI-MOIST Door alarm function When the door alarm light is on, the When the door alarm light is off, the door alarm is activated. door alarm is not activated.
-
Page 12: Temperature Control Methods For Freezer And Refrigerator
TEMPERATURE CONTROL METHODS FREEZER, FRE.QUICK/TEMPERATURE CONTROL FOR FREEZER FRE.QUICK : When foods are frozen quickly. • Choose ‘FRE. QUICK’ for power freezing. FRE. CONTROL Quick lamp is on. FRE. WARMER • Press the button again to cancel ‘FRE. QUICK’. COLDER QUICK FRE. - Page 13 REFRIGERATOR REF.QUICK/TEMPERATURE CONTROL FOR REFRIGERATOR REF.QUICK : When you want to refrigerate foods quickly. REF. CONTROL • Press ‘REF.QUICK’ button for power refrigeration. WARMER REF. • Quick lamp is on. • Press button once more to cancel ‘REF.QUICK’. QUICK COLDER REF.
- Page 14 INDICATORS (FTA, DTA) Crushed lce Ice Cubes No Ice Please the CRUSHED ICE Press the ICE CUBES button to Press the OFF button to turn off button to make crushed ice. make ice cubes. the ice making function. • The CRUSHED ICE button will •...
-
Page 15: Ice Dispenser
• When the ice is gathering, taking it out and throw away. • If the size of ice is too small, you have to control the amount of water supplied. Refer to installation advice or contact SAMSUNG service center. Ice and cold water explained. Power failure. -
Page 16: Cold Water Dispenser
• Serious injury can result. the ice/water dispensers. This initial output should then be thrown away. In case of abnormally Do not fully fill the cup with coloured ice, please stop ice. operation and contact SAMSUNG service center. -
Page 17: Food Storage Methods
FOOD STORAGE METHODS FROZEN FOOD STORAGE METHODS (NTA, BTA) Multiple guard. • Small packages of frozen foods. The enforced glass shelf of freezer section • Frozen foods can be stored here. The reinforced glass shelf can be used safely because it will not break if it falls. Meat and dried goods storage compartment. - Page 18 HOW TO MAKE ICE Please pull out ice container. Add water until the water level reaches the water height indicator. Please reinsert the ice tray. How to store ice • The ice will be made in about 2-3 hours. After it is made, turn the ice container knob in order to tilt the ice container.
- Page 19 FROZEN FOOD STORAGE METHODS (FTA,DTA) Multiple guard. • Small packages of frozen foods. The enforced glass shelf of freezer section • Frozen foods can be stored here. The reinforced glass shelf can be used safely because it will not break if it falls. Meat and dried goods storage compartment.
- Page 20 REFRIGERATED FOOD STRORAGE METHODS REFRIGERATED FOOD STRORAGE METHODS The reinforced glass shelf The reinforced glass shelf can be used safely because it will not break if it falls. High-humidity chilled compartment Please meats or fish which will be stored for long periods of time in the freezer section.
- Page 21 SR-S27FTA(DTA) SR-S28NTA(BTA) SR-S27FTA(DTA) SR-S28NTA(BTA) Dry compartment • Can be used to store fatty foods like butter and cheese. Multiple guard • Can be used to store foods with small packages such as milk and yoghurt. Extra refrigerating compartment. • Can be used to store frequently used items such as beverages.
-
Page 22: Disassembling Method
DISASSEMBLING METHOD FOR FREEZER (NTA) The reinforced glass shelf in the freezer section • Pull the shelf out until it stops. Then raise it upwards and remove. Multiple guard and door guard • Grab multiple guard and door shelf by both hands, and then raise it upwards. - Page 23 Ice storage container and ice container • Remove the ice storage container by pulling it forward. Then remove the ice container. Leg Coverage • After openning the doors of the freezer and refrigerator sections please remove the coverage after removing the 3 spiral pins.
- Page 24 DISASSEMBLING METHOD FOR REFRIGERATOR SR-S24FTA(DTA), S25NTA(BTA) SR-S25FTA(DTA), S26NTA(BTA) SR-S27FTA(DTA) SR-S28NTA(BTA) SR-S27FTA(DTA) SR-S28NTA(BTA) The reinforced glass shelf of the High-humidity chilled refrigerator section. compartment • Pull the shelf out until it stops. Then raise it • Remove by gripping the handle and pulling upwards and remove.
- Page 25 Higt-humidity vegetable compartment and cover • Remove by gripping the handle and pulling the compartment outward, raising it slightly. • Remove the cover by pulling forward. Fruit compartment and cover • Remove by gripping the handle and pulling the compartment outward, raising it slightly. •...
-
Page 26: Extra Refrigerating Compartment
EXTRA REFRIGERATING COMPARTMENT To gain access to the extra refrigerating compartment, grip the compartment door’s handle and pull downwards. • The extra refrigerating compartment gives you added convenience because you do not need to open the main refrigerator door. In addition, this saves energy. It is recommended that you use the extra refrigerating compartment for frequently used foods like beverages. -
Page 27: Cleaning Method For Accessories
CLEANING METHOD FOR ACCESSORIES Inside • Clean parts using disinfectant. Then wipe with a dry cloth. • After washing accessories, make sure that they are dry before using. Exterior • Wipe the front control panel with a clean cloth. • The doors and door handles should be cleaned with a mild detergent and dish cloth. - Page 28 Ice water dispenser and drainage grid (for DTA, FTA) • Use a damp cloth to clean the ice/water dispensers. FRE. CONTROL REF. CONTROL FREEZER REFRIGERATOR LIGHT FRE.QUICK REF.QUICK CYCLE Then wipe with a dry cloth. DEODORIZER FRE. QUICK REF. QUICK •...
-
Page 29: Changing The Inside Lamp
CHANGING THE INSIDE LAMP Before changing the inside lamp, make sure that your unit has been disconnected from the power supply. If you experience difficulty when attempting to change the lamp, contact your service center. WRANING INDOOR LAMP IN THE FREEZER –... -
Page 30: Ice-Making Filter
THE ICE-MAKING FILTER What is the ice-making filter? • The ice-making filter is a device which removes impure materials from the water. How do I install the ice-making filter? • Connect the ice-making filter provided with water line tap. (Please refer to separate manual) •... -
Page 31: Checks Prior To Service Request
CHECKS PRIOR TO SERVICE REQUEST The refrigerator doesn’t work at all or the • Check whether power plug is properly connected. refrigeration is weak • Check whether power plug fuse is blown or not. • Is the temperature control on the front control panel indicating WARMER? •... - Page 32 Water babbling in the refrigerator • This is a babbling of refrigerant which makes strong sound inside. Odoring inside • You did not seal the foods which have a strong odour or foreign material is tucked at the coding entrance. •...
- Page 33 MEMO...
- Page 34 ELECTRONICS...
