- Page 1 USER MANUAL SR-S20... SRS579NP SRS580DTKG SRS582DSSB SRS615DP SR-S22... FRIDGE/FREEZER Before operating the appliance, please read this manual thoroughly and retain it for future reference. SRS580DW SRS581DTKM SRS582DTKGM SRS614DW SRS616DSSB SRS616DHSS DA68-00500P REV(0.2)
-
Page 2: Table Of Contents
Door alarm • When the refrigerator door is left open for more than two minutes, a musical alarm is automatically triggered. This feature helps you save electricity and preserve stored foods. - Page 3 Do not let children hang from the door. If you detect abnormal sounds, smells or smoke, pull out the power plug immediately and contact your SAMSUNG Electronics ser- vice centre. Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
-
Page 4: Installing The Appliance
• If your appliance is not level, the internal cooling system may not work correctly. Store food in the refrigerator. • Wait for at least two or three hours after plugging your appliance in before storing food and other items in it. -
Page 5: Preparing The Appliance
Once you have performed the following steps, your fridge/freezer should be fully operational. If not, check the power supply and electricity source. If you have any doubts or problems, con- tact your SAMSUNG service centre. Place the shelves and containers which... -

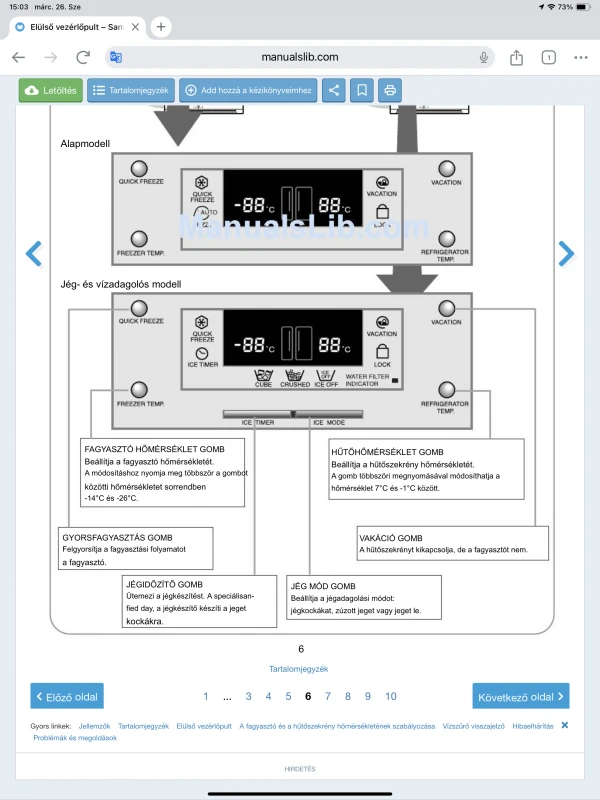

Page 6: Front Control Panel
Sets the refrigerator temperature. Press the button repeatedly to change the temperature in sequence between 7°C and -1°C. VACATION BUTTON Turns the refrigerator off but not the freezer. ICE MODE BUTTON Sets the ice dispensing mode: ice cubes, crushed ice or ice off. -
Page 7: Controlling The Freezer And Refrigerator Temperatures
Vacation • When the vacation light is on, the refrigerator is switched off but not the freezer. Press the button again to cancel the Vacation mode. Be sure to remove all food in the refrigerator when you select this mode. -
Page 8: Water Filter Indicator
- If you select both the Vacation and Ice Timer modes, the refrigerator is switched off. Remove all food from the refrigera- tor but leave the water tap open. Check that the tap and other pipe connections do not leak. When the start time is reached, the appliance begins making ice, the Vacation mode is cancelled and the refrigerator operates normally. -
Page 9: Making Ice
If the water from the cold water dispenser is not chilled, pour the warm water away, add ice from the ice dispenser and fill your glass with water. The refrigerator is provided with anti sweat- heater inside of dispenser panel and is delivered to user with heater switch “ON”... -
Page 10: Storing Food
STORING FOOD REFRIGERATED FOOD STRORAGE METHODS Tempered glass shelf • Can be used safely because it will not break if it falls. Fresh center (option) • Helps preserve the taste of food and prolongs its fresh- ness. Use the chiller to store cheese, meat, snacks, fish or any food to be used quickly. -
Page 11: View Of Your Fridge/Freezer
Meat and dry goods storage compartment • Can be used to store meat and dry goods. Stored food should be wrapped securely using foil or other suitable wrapping materials. Door guard • Can be used for frozen foods. Ice chute and ice-maker cover •... -
Page 12: Removing The Freezer Accessories
• Remove the compartment by pulling it out and lifting it up slightly. Dairy compartment Guard Extra Refrigerator Compartment (model with Home Bar) Shelf Drawer cover Bottle guard Ice maker and tray • Remove the ice tray by pulling it towards you. -
Page 13: Removing The Refrigerator Accessories
• The extra refrigerating compartment gives you added convenience because you do not need to open the main refrigerator door. In addition, this saves energy. It is recommended that you use the extra refrigerating compartment for frequently used foods like beverages. -
Page 14: Changing The Interior Light
Rubber door seals • If the rubber door seals are dirty, the door will not close properly and the refrigerator and freezer will be unable to function efficiently. Clean them with a mild detergent and damp cloth. Then wipe them with a dry cloth. -
Page 15: Ice-Making Filter
No water is dispensed • Is the water tap open and the water pipe connect- • Is the water pipe blocked? • Is the water tank frozen because the refrigerator temperature is too low? Select a warmer setting via the front control panel. -
Page 16: Ambient Room Temperature Limits
Ambient Room Temperature Limits This appliance is designed to operate at the ambient temperatures specified by its temper- ature class marked on the rating plate. Temperature Symbol Class Extended Temperate Temperate Subtropical Tropical NOTE: The internal temperature may be affected by such factors as the location of the appliance, ambient temperature and the frequency with which you open the doors. - Page 17 Installation Manual...
- Page 18 INSTALLING THE FRIDGE/FREEZER Checking the Dimensions of Your Entrance Door Check the dimensions of your entrance door to determine whether the fridge/freezer can pass through it. DOOR DEPTH (except handle) Width 40mm 917mm 50mm 908mm 917mm 85mm 908mm Selecting the Location for the Fridge/Freezer •...
- Page 19 FRIDGE/FREEZER TOO LARGE TO BE DELIV- ERED THROUGH THE ENTRANCE DOOR Disassembling the Leg Cover Assembly Open the freezer and refrigerator doors, and then disassemble the leg cover assembly by turning the three screws counter-clockwise. Removing the Water Tube from the Fridge/Freezer 1) Remove the screw from clamp ( ).
- Page 20 Disassembling the Freezer Door 1) With the door closed, disassemble the upper hinge cover ( ) using a flat screwdriv- er, and then disconnect the wires ( ). 2) Disassemble bolt ( ) and screw ( ) to the counter-clockwise by using a tool, and take off the upper hinge ( ) along the arrow ( ).
- Page 21 Disassembling the Refrigerator Door 1) With the door closed, disassemble the upper hinge cover ( ) using a flat screwdriv- er, and then disconnect the wires ( ). 2) Disassemble bolt ( ) and screw ( ) to the counter-clockwise by using a tool, and take off the upper hinge ( ) along the arrow ( ).
- Page 22 3) Insert the upper hinge shaft ( ) into the hole ( ). After leveling between the upper hinge hole ( ) and the hole of the refrigerator ( ). assemble bolt ( ) and screw ( ) to the clockwise by using a tool.
- Page 23 3) Insert the upper hinge shaft ( ) into the hole ( ). After leveling between the upper hinge hole ( ) and the hole of the refrigerator ( ). assemble bolt ( ) and screw ( ) to the clockwise by using a tool.
- Page 24 Assembling the Water Tube 1) While pressing the coupler ( ), insert the water tube ( ) in the coupler. 2) Tighten the screw on the clamp ( ). Assembling the Leg Cover Assembly Assemble the leg cover assembly by turning the three screws clockwisely, as shown in the figure. LEG COVER ASSEMBLY SCREW...
- Page 25 IF THERE IS CLEARANCE BETWEEN FRIDGE DOOR AND FREEZER DOOR, PLEASE FOLLOW THE STEPS. First : Please level up the refrigerator. (The differance can cause, if the floor where installed is uneven) Freezer door is lower than that of refrigerator...
- Page 26 1) Release a nut ( ) in the bottom part of refrigerator until the last point of bolt ( ). When you release the nut( ), please fix the extra wrench( ) which is wrapped to a bolt( )then...
-
Page 27: Installing The Water Dispenser Line
INSTALLING THE WATER DISPENSER LINE For the ice maker to operate automatically, water pressure of 1.4 - 4.5 kgf/cm required. (It should be possible to fill a disposable paper cup (approximately 180 cc) within 10 seconds.) The water tube can be cut to the required length. Make sure that the tube is not bent. -
Page 28: Installation Procedure
INSTALLATION PROCEDURE 1. Connect the water pipe with coupler and tap. 1) Close the main water tap. 2) Connect coupler “A” to the tap. 3) Every join should be protected with sealing tape. WARRANTY INFORMATION This water line installation is not covered by the fridge/freezer or ice maker manufacturer's warranty. - Page 29 4. Attach the purifier lock stations. (Model with the purifier) 1) Hold the purifier lock stations in the appro- priate position (under the sink for example) and fix it tightly into place where to screw. 5. Secure the purifier in position. (Model with the purifier) 1) Fix the purifier in position, as shown in the figure on the right.
- Page 30 8. Complete the installation of the water dis- penser line. 1) Switch on the fridge/freezer and press the lever on the left of the dispenser until water runs out through the water tube (approximate- ly two to three minutes). (Press it until all air has been empty.) 2) At this time, check for any possible leakages at the joins in the water tube.
-
Page 31: Checking Volume Of Water Supplied
12 seconds until the temperature display switches to the option change mode and you hear a beep. 2. The number in the right-hand refrigerator temperature display corre- sponds to the option number. Press the REFRIGERATOR TEMP. button to increase the number. Press the VACATION button to decrease the number.
