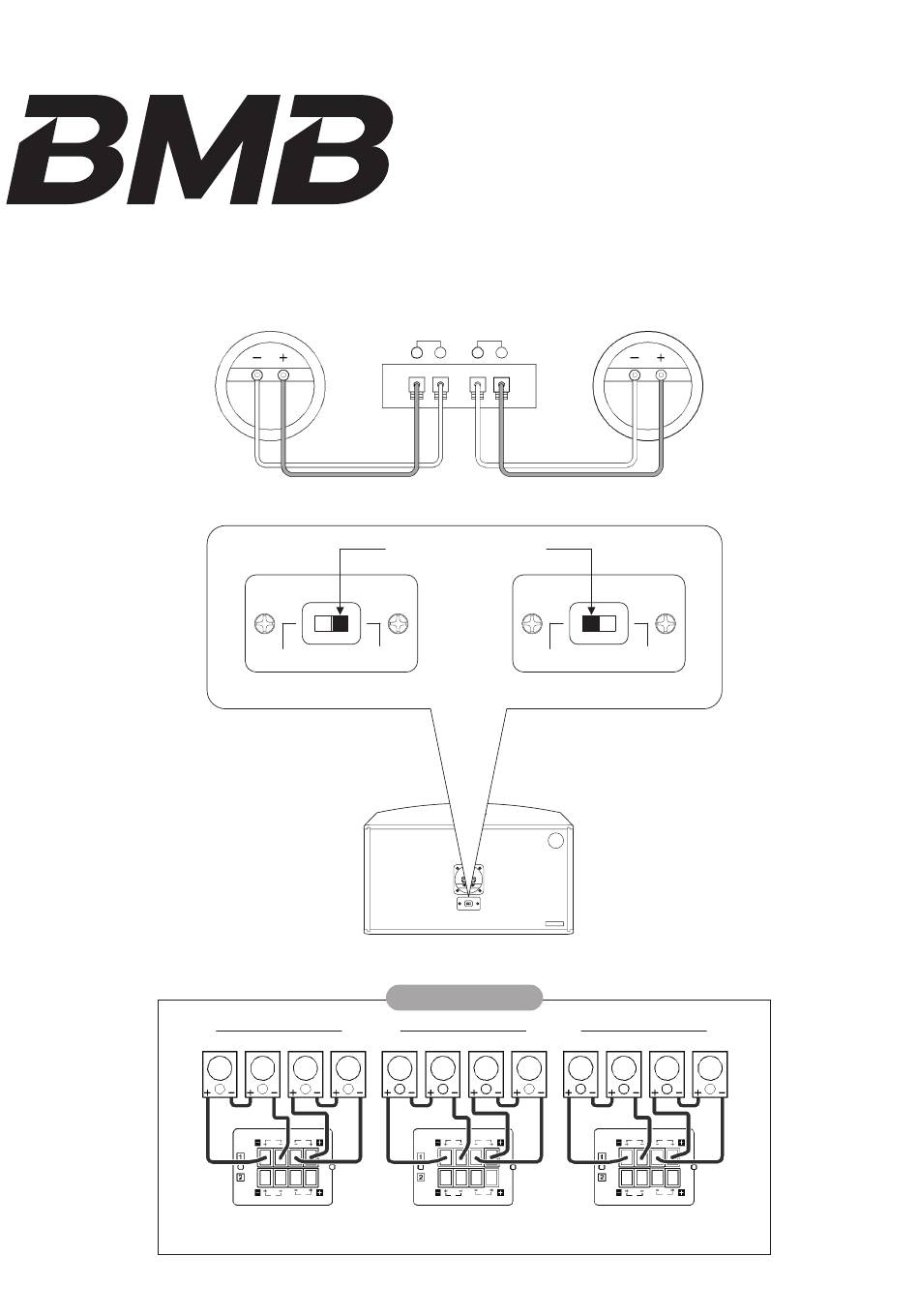

Right speaker system
TREBLE
FLAT
TREBLE position
Allowable Example 1
6 Ω
6 Ω
6 Ω
6 Ω
R
L
R
L
(Speaker terminals)
OK: Combined impedance is 12 Ω
CSV-450(SE)
Connected amplifier
(Speaker terminals)
L
R
Position Selection
FLAT
FLAT position
Allowable Examples
Allowable Example 2
8 Ω
6 Ω
6 Ω
8 Ω
R
L
R
L
(Speaker terminals)
OK: Combined impedance is 14 Ω OK: Combined impedance is 16 Ω
SPEAKER SYSTEM
Left speaker system
TREBLE
Allowable Example 3
8 Ω
8 Ω
8 Ω
8 Ω
R
L
R
L
(Speaker terminals)
Advertisement
Table of Contents
Related Manuals for BMB CSV-450
Summary of Contents for BMB CSV-450
- Page 1 SPEAKER SYSTEM CSV-450(SE) Right speaker system Connected amplifier Left speaker system (Speaker terminals) Position Selection TREBLE TREBLE FLAT FLAT TREBLE position FLAT position Allowable Examples Allowable Example 1 Allowable Example 2 Allowable Example 3 6 Ω 6 Ω 6 Ω...
- Page 2 Not-allowable Examples Not-allowable Example 1 Not-allowable Example 2 Not-allowable Example 3 6 Ω 6 Ω 6 Ω 6 Ω 8 Ω 6 Ω 6 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω (Speaker terminals) (Speaker terminals) (Speaker terminals) NG: Combined impedance is 3 Ω...
- Page 3 English OWNER’S MANUAL THANK YOU VERY MUCH FOR PURCHASING THIS BMB SPEAKERS SYSTEM. BEFORE USE, PLEASE READ FOLLOWING INSTRUCTIONS THROUGH CAREFULLY AND FAMILIARIZE YOURSELF WITH THE OPERATION OF THE SYSTEM. BEFORE USE Operating Precautions The maximum input power of these speakers is 500 W (at peak). Higher levels of input power may cause damage to the speaker system and so take every precaution to keep the power down to the specifi...
- Page 4 (with multi-cellular horn) Maximum input power: 500 W Rated input power: 250 W Sound pressure level: 91 dB/W/m Frequency response: 40 - 20 kHz Impedance: 8 Ω Dimensions: 558 (W) x 292 (H) x 297 (D) mm Mass: 11.5 kg http://www.bmb.com...
