Location
the heater should not be placed immediately below a power
outlet.
do not use this radiator in rooms with a floor area of less than
4 m
2
(43 sq. ft. ).
Connection
-
Before using the appliance check that your supply
voltage is the same of that shown on the rating label
of the unit and that the power socket and power supply
line correspond to the load specified.
-
Check also the current capacity of your fuses. CONNeCt
YOUr Heater tO eartH PrOVided SOCKet ONlY.
-
this appliance complies with directive 2004/108/ec on
electromagnetic compatibility.
Keep loose clothing or bedding, furniture and flammable
material away from the heater's wall outlet.
Turning on
insert the plug into an electrical outlet, rotate the thermostat
dial to maximum and turn the unit on as follows using the
power selector:
-
turn the power selector to position MiN to select
minimum output (the min light will be on).
-
turn the power selector to position Med to select
medium output (the min/med lights will be on).
-
turn the power selector to position MaX to select
maximum output (the lights will be on).
Adjusting the thermostat
When the room has reached the desired temperature, turn
the thermostat dial slowly in a clockwise direction until you
hear a "click" and not beyond it.
the thermostat will then adjust the set temperature
automatically and keep it constant.
if your unit is a three-output version, in intermediate seasons
or on days when temperatures are not particularly cold, select
minimum output to optimize savings and consumption.
Antifreeze function
turn the thermostat dial to the
selector to position MaX.
the appliance will maintain a minimum room temperature of
approximately 5°C, thus preventing freezing while conserving
energy. in models that come with a timer, teeth must be set
in the inward position.
position and the power
5
Use/Units with timer
Reminder
to completely shut the appliance off, turn the power selector to
the "0" position and then unplug the appliance from the outlet.
UNITS WITH TIMER

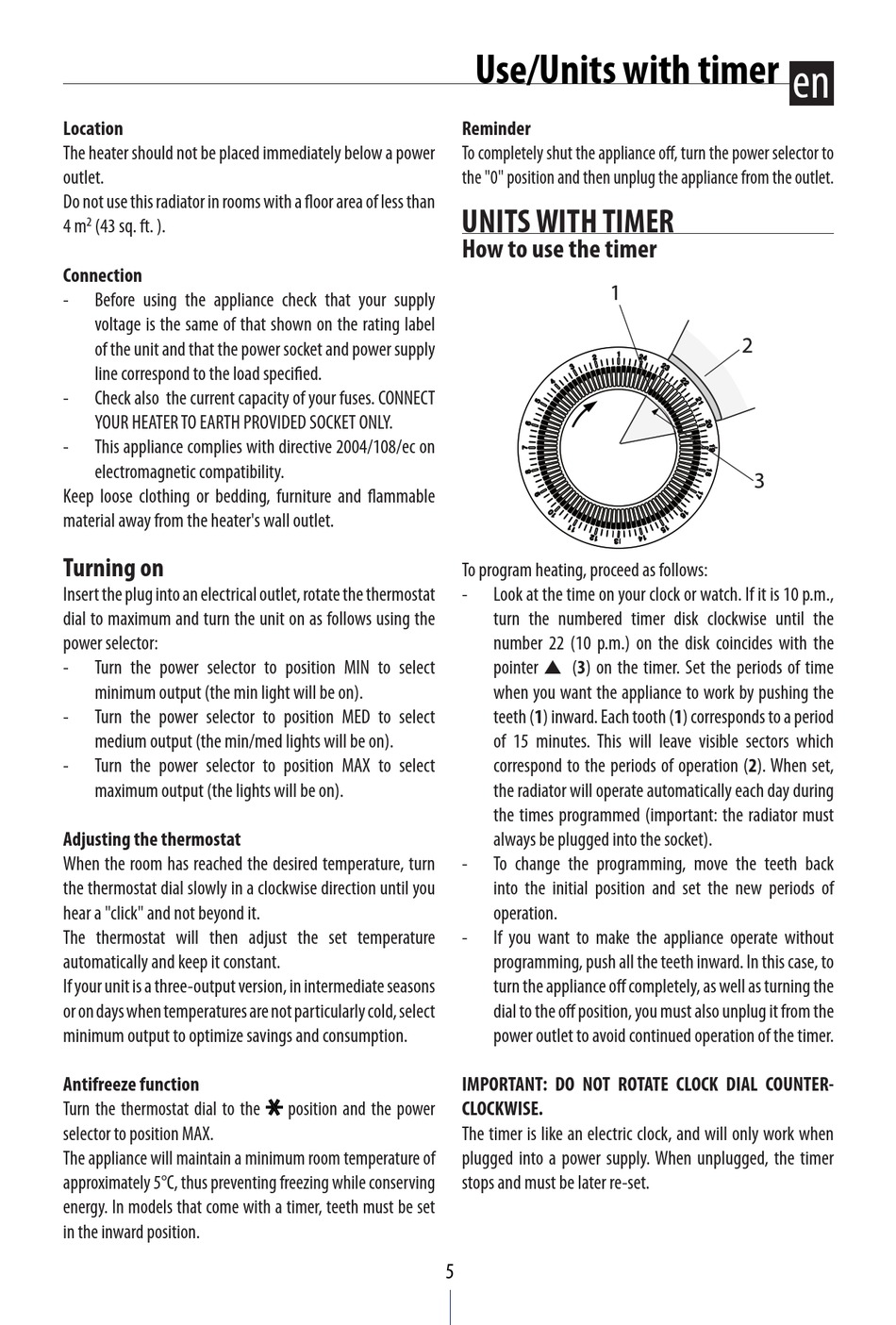

How to use the timer
to program heating, proceed as follows:
-
look at the time on your clock or watch. if it is 10 p.m.,
turn the numbered timer disk clockwise until the
number 22 (10 p.m.) on the disk coincides with the
pointer s (3) on the timer. Set the periods of time
when you want the appliance to work by pushing the
teeth (1) inward. each tooth (1) corresponds to a period
of 15 minutes. this will leave visible sectors which
correspond to the periods of operation (2). When set,
the radiator will operate automatically each day during
the times programmed (important: the radiator must
always be plugged into the socket).
-
to change the programming, move the teeth back
into the initial position and set the new periods of
operation.
-
if you want to make the appliance operate without
programming, push all the teeth inward. in this case, to
turn the appliance off completely, as well as turning the
dial to the off position, you must also unplug it from the
power outlet to avoid continued operation of the timer.
IMPORTANT: DO NOT ROTATE CLOCK DIAL COUNTER-
CLOCKWISE.
the timer is like an electric clock, and will only work when
plugged into a power supply. When unplugged, the timer
stops and must be later re-set.
en
