Videomitter MIT500 Quick Start Manual

MIT500 - Quick Start Guide
· Only use a regulated 12V DC power supply.
·
Do not install or use the device if the power cable or video connections are damaged.
·
Do not use alcohol or solvents to clean the product, only clean using a damp cloth.
·
Before installation it is recommended to connect the whole transmission setup on a bench or
local to the DVR / monitor to ensure compatibility and that all parts are in working order.

Introduction

The 2MP HD MegaMitter can transmit an AHD CCTV camera wirelessly. Ensure the camera
connected has a 4-in-1 selectable output set to AHD or have a AHD video output (2MP). This
product will not work with higher than 2MP cameras.
Ensure the MegaMitters are installed in line of sight with no obstructions between the TX & RX. Up
to 4 pairs of MegaMitters can be used on the same site but it is recommended to use directional
antennas when using multiple sets.

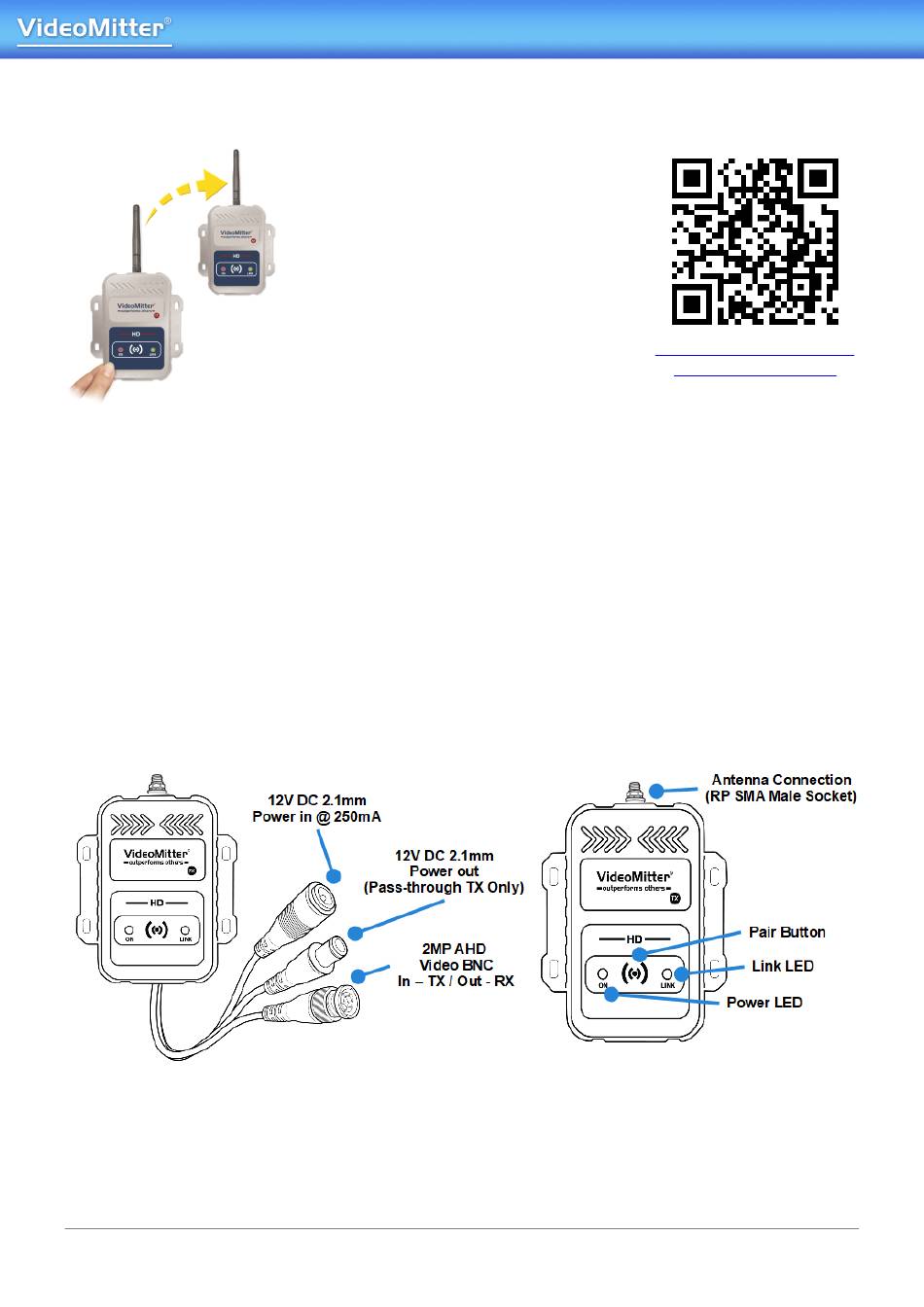

Connections & Controls

Powering

The MegaMitters need powering with a fully regulated
12V DC power supply individually. When they are
powered up a red power light will come on.
Document ref: MIT500
MegaMitter Video TX & RX Pair - Wireless 2MP AHD Transmission

User Information

·
The product must be installed in a clean, dry
environment where it will not be exposed to
high temperatures, moisture or excessive
dust.
·
Do not touch the product or any of its
connections with wet hands.
·
Ensure the power is switched off if the
product is not in use for a long period of time.
·
There are no user serviceable parts in the
product and opening or attempting to repair
the product will void the warranty.
Note: power supplies are sold separately.
VideoMitter.com
VideoMitter is a registered trademark of System Q Ltd
Full Instruction Manual
www.systemq.com/PDF/
manual/xMIT500.pdf

Antenna

The small antenna simply screws on to
the top of the MegaMitters. Optional
antennas are available to increase
transmission range.
